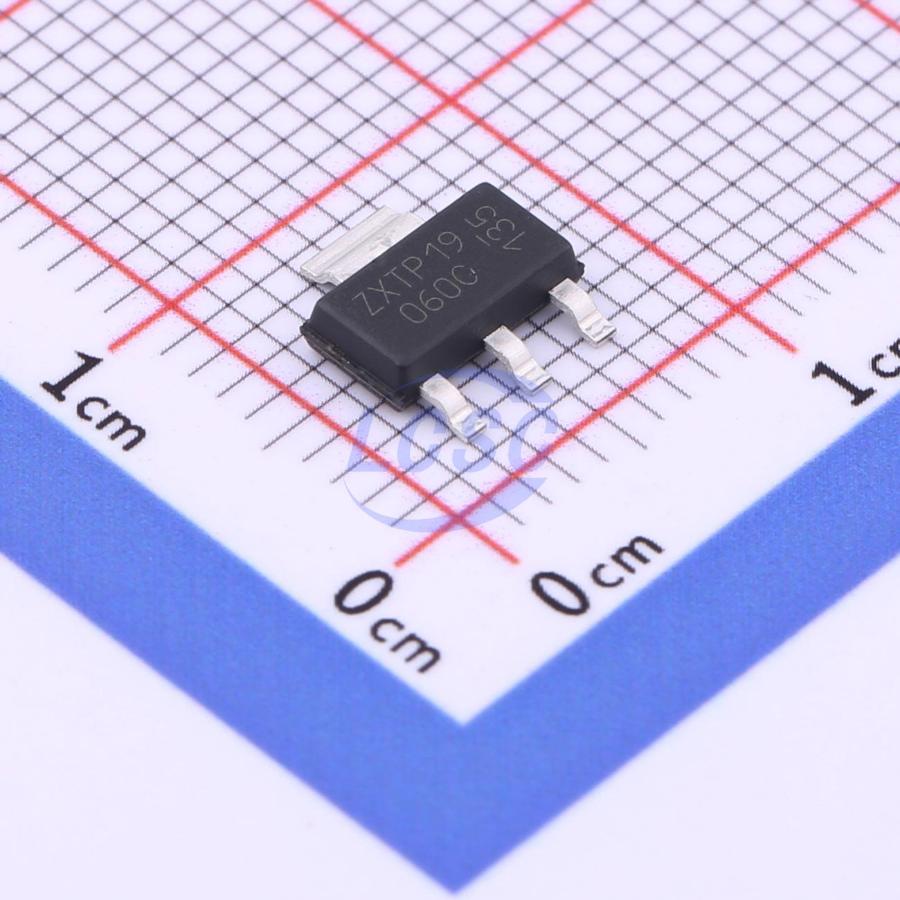

ZXTP19060CGTA
Bipolar (BJT) Transistor PNP 60V 5A 180MHz 3W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS PNP 60V 5A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTP19060CGTA
- Store part #
- C5124971
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5124971
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.50 | ₹129.50 |
| 10+ | ₹105.96 | ₹1,059.60 |
| 30+ | ₹94.18 | ₹2,825.40 |
| 100+ | ₹82.63 | ₹8,263.00 |
| 500+ | ₹75.65 | ₹37,825.00 |
| 1,000+ | ₹71.94 | ₹71,940.00 |
1 × ₹129.50
₹129.50
excl. GST
₹152.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXTP19060CGTA
₹129.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 50nA
- Transition frequency(fT)
- 180MHz
- Collector - Emitter Voltage VCEO
- 60V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 200
- Pd - Power Dissipation
- 3W
- Current - Collector(Ic)
- 5A
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
Applications
- Motor Drive
- High Side Driver
Key features
- BVCEO > -60V
- BVECO > -7V
- lC = 5A High Continuous Current
- Low Saturation Voltage VCE(sat) < -80mV @ 1A
- RCE(sat) = 50mΩ
- Complementary PNP Type: ZXTN19060CG
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXTP19060CGTA#C3199815DIODES · SOT-223 | DIODES | SOT-223 | 76 | ₹78.37 · 76 in stock | View |
| FZT951TC#C5245660DIODES · SOT-223 | DIODES | SOT-223 | On request | ₹173.67 · 0 in stock | View | |
 | PBSS4041PZ,115#C551884Nexperia · SOT-223 | Nexperia | SOT-223 | On request | ₹113.92 · 0 in stock | View |
| DSS60600MZ4Q-13#C6831654DIODES · SOT-223-3 | DIODES | SOT-223-3 | On request | ₹75.20 · 0 in stock | View | |
 | PBSS304PZ,135#C551851Nexperia · SOT-223 | Nexperia | SOT-223 | On request | ₹86.51 · 0 in stock | View |
