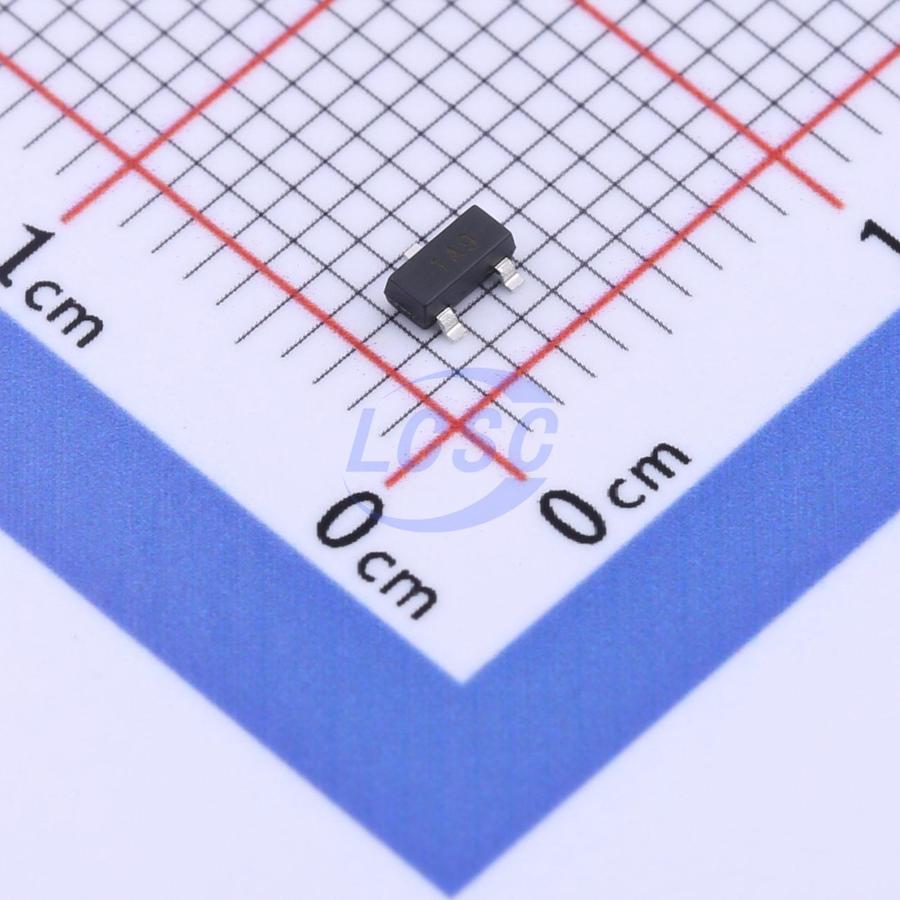

ZXTP25020BFHTA
Bipolar (BJT) Transistor PNP 20V 4A 250MHz 1.25W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS PNP 20V 4A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTP25020BFHTA
- Store part #
- C672075
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C672075
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.09 | ₹63.09 |
| 10+ | ₹50.22 | ₹502.20 |
| 30+ | ₹44.64 | ₹1,339.20 |
| 100+ | ₹37.77 | ₹3,777.00 |
| 500+ | ₹34.77 | ₹17,385.00 |
| 1,000+ | ₹33.06 | ₹33,060.00 |
1 × ₹63.09
₹63.09
excl. GST
₹74.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXTP25020BFHTA
₹63.09 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 50nA
- Transition frequency(fT)
- 250MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 100
- Current - Collector(Ic)
- 4A
- Pd - Power Dissipation
- 1.25W
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 60mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
Advanced process capability and package design have been used to maximize the power handling and performance of this small outline transistor. The compact size and ratings of this device make it ideally suited to applications where space is at a premium.
Applications
- MOSFET and IGBT gate driving
- DC - DC converters
- Motor drive
- High side driver
- Battery charging
Key features
- High power dissipation SOT23 package
- High peak current
- Low saturation voltage
- 40V forward blocking voltage
- 7V reverse blocking voltage
