DIODES

ZXTP25020DGTA

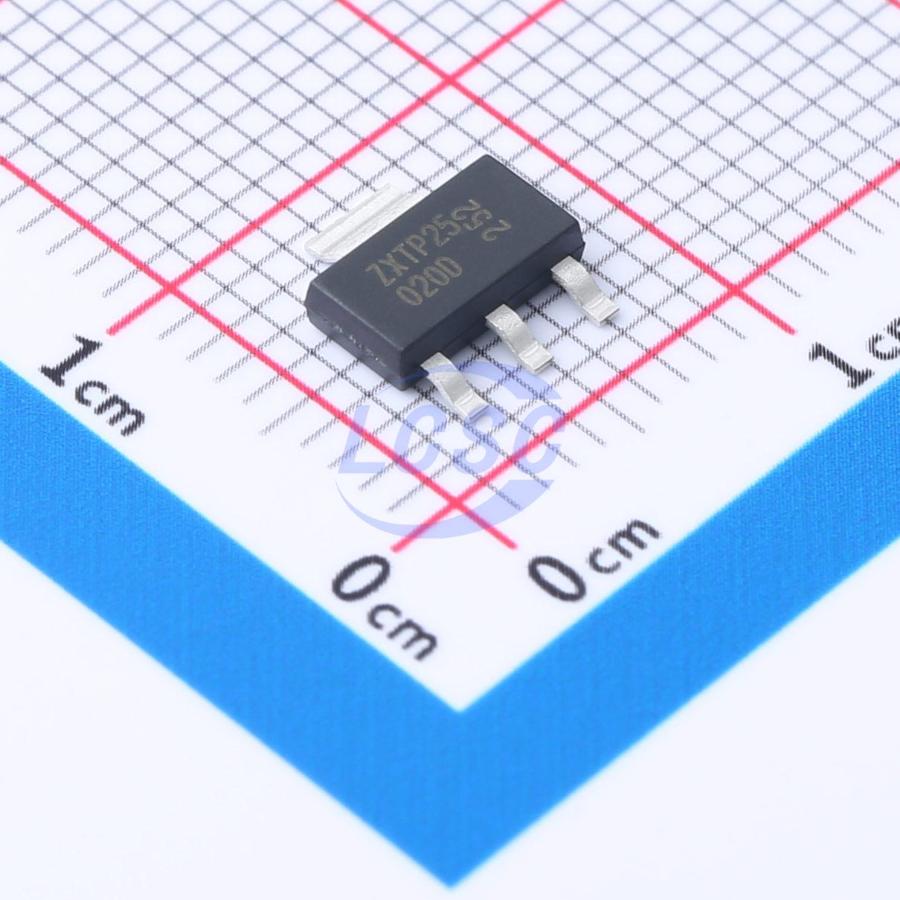

Bipolar (BJT) Transistor PNP 20V 6A 290MHz 1.6W Surface Mount SOT-223

SOT-223ROHS3 CompliantActive

TRANS PNP 20V 6A SOT-223

Manufacturer: DIODES
Manufacturer part #: ZXTP25020DGTA
Store part #: C5245573
Package / case: SOT-223
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C5245573

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹75.87	₹75.87
10+	₹60.39	₹603.90
30+	₹53.86	₹1,615.80
100+	₹45.56	₹4,556.00
500+	₹41.86	₹20,930.00
1,000+	₹39.68	₹39,680.00

Quantity (min 1)

1 × ₹75.87

₹75.87

excl. GST

₹89.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

ZXTP25020DGTA

₹75.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 50nA
Transition frequency(fT): 290MHz
Collector - Emitter Voltage VCEO: 20V
Emitter-Base Voltage VEBO: 7V
DC Current Gain: 200
Pd - Power Dissipation: 1.6W
Current - Collector(Ic): 6A
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 245mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.21 g

Overview

Applications

Load Switch
Motor Drive Regulator Circuit

Key features

BVCEO > -20V
BVCBO > -25V
lC = -6A High Continuous Current
hFE > 200 @ -1A and Low Saturation Voltage
Extremely Low Equivalent On-Resistance RCE(sat) 42mΩ
Complementary NPN Type: ZXTN25020DG
Lead-Free Finish; RoHS Compliant Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
