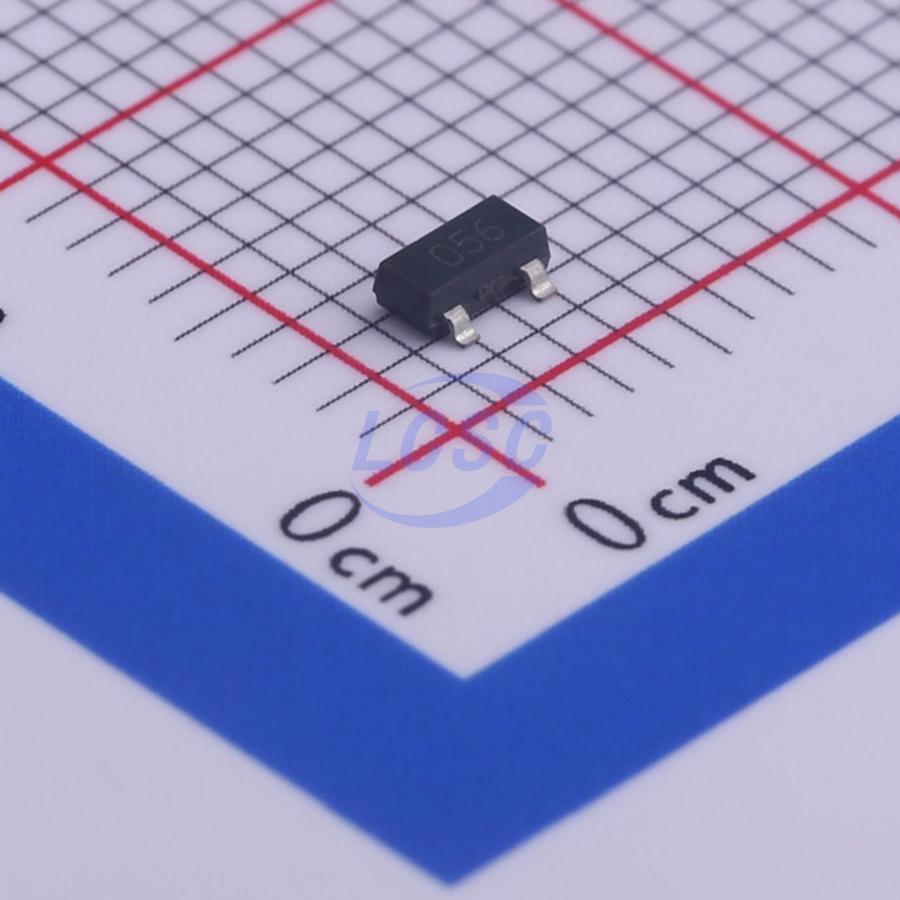

ZXTP25100BFHTA DIODES

ZXTP25100BFHTA

Bipolar (BJT) Transistor PNP 100V 2A 200MHz 1.25W Surface Mount SOT-23

SOT-23ROHS3 CompliantActive

TRANS PNP 100V 2A SOT-23

Manufacturer: DIODES
Manufacturer part #: ZXTP25100BFHTA
Store part #: C460152
Package / case: SOT-23
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

699 in stock

#C460152

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹143.62	₹143.62
10+	₹117.34	₹1,173.40
30+	₹104.08	₹3,122.40
100+	₹91.05	₹9,105.00
500+	₹83.23	₹41,615.00
1,000+	₹79.31	₹79,310.00

Quantity (min 1)

1 × ₹143.62

₹143.62

excl. GST

₹169.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ZXTP25100BFHTA

₹143.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 50nA
Transition frequency(fT): 200MHz
Collector - Emitter Voltage VCEO: 100V
Emitter-Base Voltage VEBO: 8.2V
DC Current Gain: 55
Pd - Power Dissipation: 1.25W
Current - Collector(Ic): 2A
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 130mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.019 g

Overview

Applications

MOSFET and IGBT Gate Driving
DC-DC Converters
Motor Drive Relay, Lamp and Solenoid Drive

Key features

BVCEO > -100V
BVECO > -7V
Ic = -2A Continuous Collector Current
VCE(SAT) < -130mV @ -1A
RCE(SAT) = 108mΩ Typical
PD = 1.25W
High Peak Current
Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
