VBsemi ElecDatasheet (PDF)

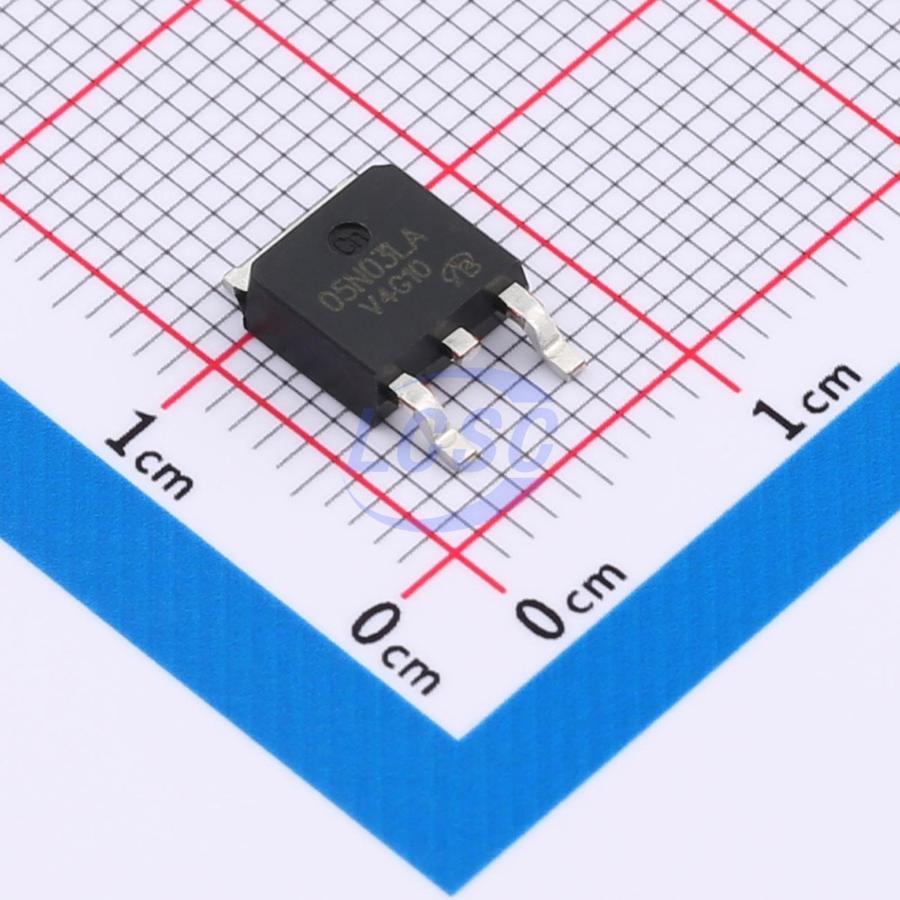

05N03LA-VB TO252
N-Channel 20V 100A 71W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 20V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 05N03LA-VB TO252
- Store part #
- C29779137
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C29779137
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.75 | ₹65.75 |
| 10+ | ₹51.68 | ₹516.80 |
| 30+ | ₹45.59 | ₹1,367.70 |
| 100+ | ₹38.02 | ₹3,802.00 |
| 500+ | ₹34.66 | ₹17,330.00 |
| 1,000+ | ₹32.56 | ₹32,560.00 |
1 × ₹65.75
₹65.75
excl. GST
₹77.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
05N03LA-VB TO252
₹65.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 730pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.66nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 375pF
- RDS(on)
- 6mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- Maximum junction temperature 175°C
- 100% gate resistance (Rg) tested
- Drain connected to heatsink
- N-channel MOSFET
