VBsemi ElecDatasheet (PDF)

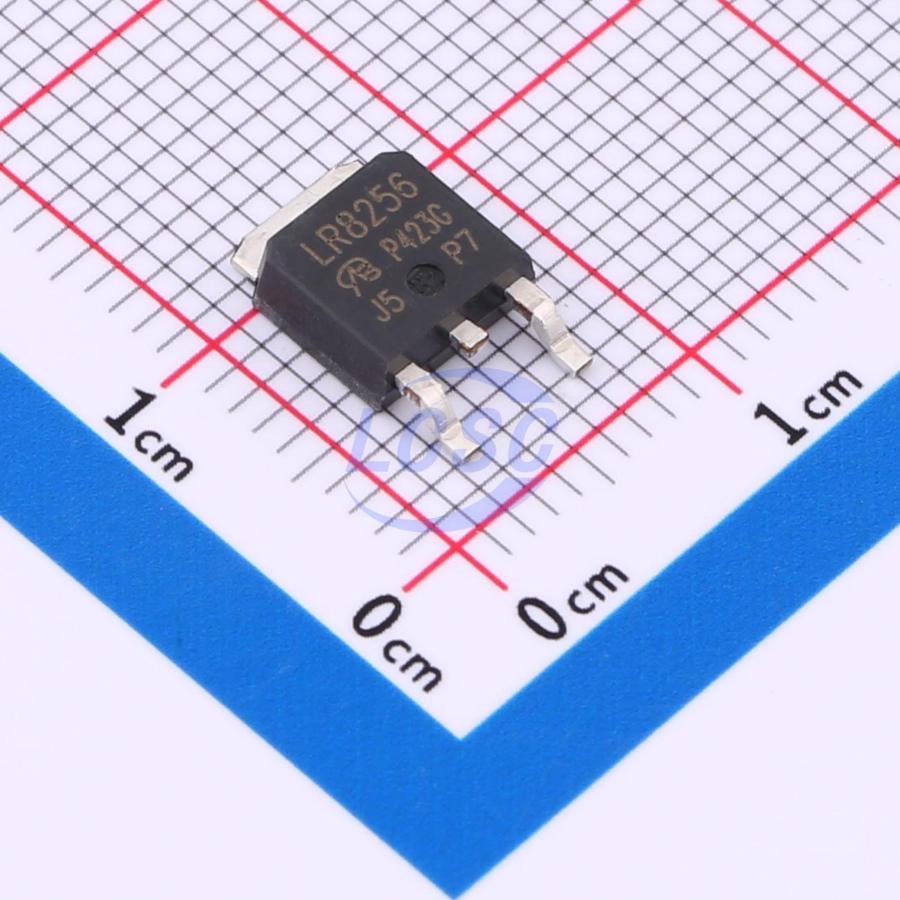

IRLR8256TRPBF-VB
N-Channel 20V 100A 71W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 20V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLR8256TRPBF-VB
- Store part #
- C22389739
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C22389739
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.54 | ₹70.54 |
| 10+ | ₹55.95 | ₹559.50 |
| 30+ | ₹49.64 | ₹1,489.20 |
| 100+ | ₹41.81 | ₹4,181.00 |
| 500+ | ₹38.33 | ₹19,165.00 |
| 1,000+ | ₹36.36 | ₹36,360.00 |
1 × ₹70.54
₹70.54
excl. GST
₹83.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR8256TRPBF-VB
₹70.54 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 100A
- Output Capacitance(Coss)
- 730pF
- Ciss-Input Capacitance
- 3.66nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 375pF
- RDS(on)
- 6mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.485 g
Overview
Applications
- Synchronous Rectification
- Power Supply
Key features
- TrenchFET Power MOSFET 175°C Maximum Junction Temperature
- 100% Rg Tested
- N-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 05N03LA-VB TO252#C29779137VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 44 | ₹65.75 · 44 in stock | View |
 | AP4434AGH-HF-VB#C41370029VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹69.63 · 10 in stock | View |
 | AOD456A-VB#C20417650VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 18 | ₹68.28 · 18 in stock | View |
 | FDD8580-VB#C3040278VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 24 | ₹54.20 · 24 in stock | View |
 | FDD8580&-6-VB#C693389VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹66.52 · 8 in stock | View |
