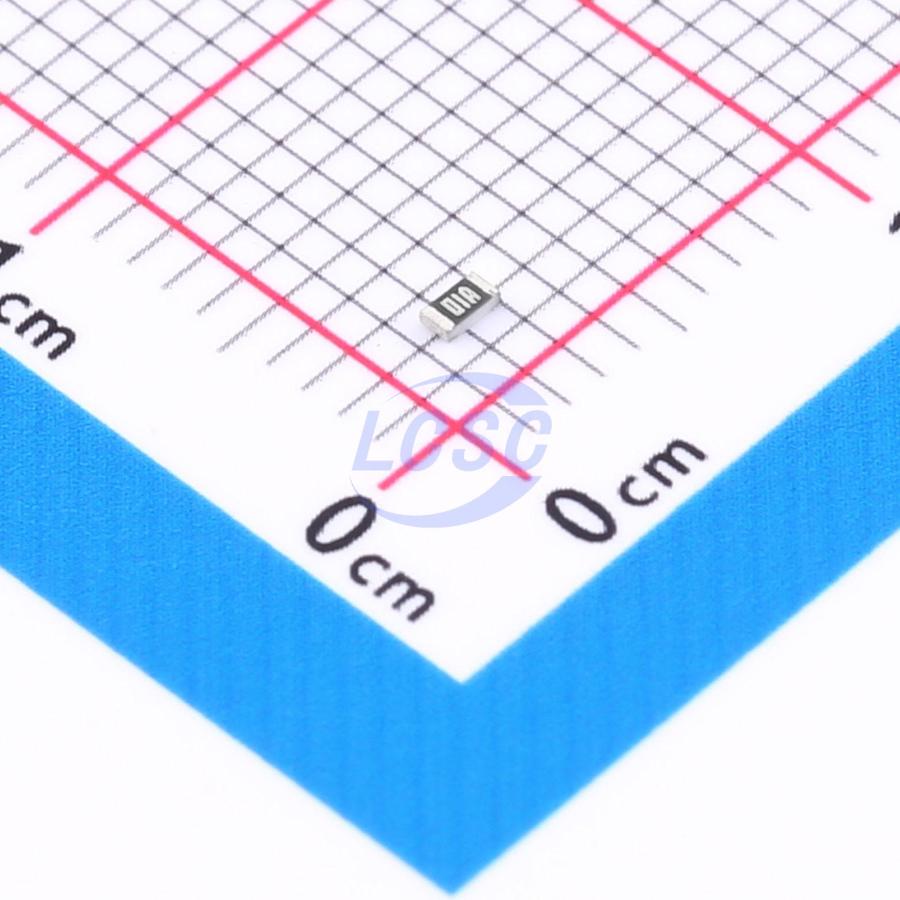

0603WAF1000T5E
100Ω ±1% 100mW 0603 Thick Film Resistor
RES 100Ω ±1% 100mW 0603
- Manufacturer
- UNI-ROYAL
- Manufacturer part #
- 0603WAF1000T5E
- Store part #
- C22775
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45,31,000 in stock
#C22775
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.352 | ₹35.20 |
| 1,000+ | ₹0.275 | ₹275.00 |
| 5,000+ | ₹0.242 | ₹1,210.00 |
| 10,000+ | ₹0.198 | ₹1,980.00 |
| 50,000+ | ₹0.176 | ₹8,800.00 |
100 × ₹0.352
₹35.20
excl. GST
₹41.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
0603WAF1000T5E
₹35.20 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 100Ω
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±100ppm/℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.027 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NQ03WAF1000T5E#C2758736UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 5,600 | ₹0.495 · 5,600 in stock | View |
 | HP03W5F1000T5E#C2759451UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 26,200 | ₹0.264 · 26,200 in stock | View |
 | PS03W4F1000T5E#C2784878UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 4,74,100 | ₹0.935 · 4,74,100 in stock | View |
 | TC0325B1000T5F#C2989113UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 46,580 | ₹3.21 · 46,580 in stock | View |
 | CQ03WAF1000T5E#C516553UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote |
Questions about 0603WAF1000T5E
What are the key technical specifications of this resistor?
This is a Surface Mount Device (SMD/SMT) Thick Film Resistor manufactured by UNI-ROYAL. It features a resistance value of 100Ω with a ±1% tolerance. It is housed in a standard 0603 package, possesses a power rating of 100mW (1/10W), and has a maximum voltage rating of 75V.
What is the operating temperature range and temperature stability for this part?
This resistor is designed for high reliability across a broad environmental spectrum, featuring an operating temperature range from -55°C to +155°C. Its temperature stability is characterized by a Temperature Coefficient of Resistance (TCR) of ±100ppm/°C.
What is the minimum ordering quantity (MOQ) and how is the item packed?
The minimum order quantity is 100 pieces, and increments must be purchased in multiples of 100. A standard full factory package comes as a Full Reel containing 5,000 pieces. The sales unit is priced per individual piece.
Does LCSC offer volume discounts for bulk purchases of this component?
Yes, LCSC offers tiered wholesale pricing for larger quantities. While a baseline reference price applies to the minimum order of 100+ pieces, the unit cost decreases incrementally as you order in quantities of 1,000+, 5,000+, 10,000+, or 50,000+ pieces.
Where can I find the official datasheet and PCB model files for this item?
The official UNI-ROYAL datasheet can be viewed and downloaded directly via the PDF link provided under the "Related Resources" section on the LCSC product page. Additionally, pre-made schematic symbols and PCB footprint assets are directly accessible through the integrated EasyEDA Libraries link.
