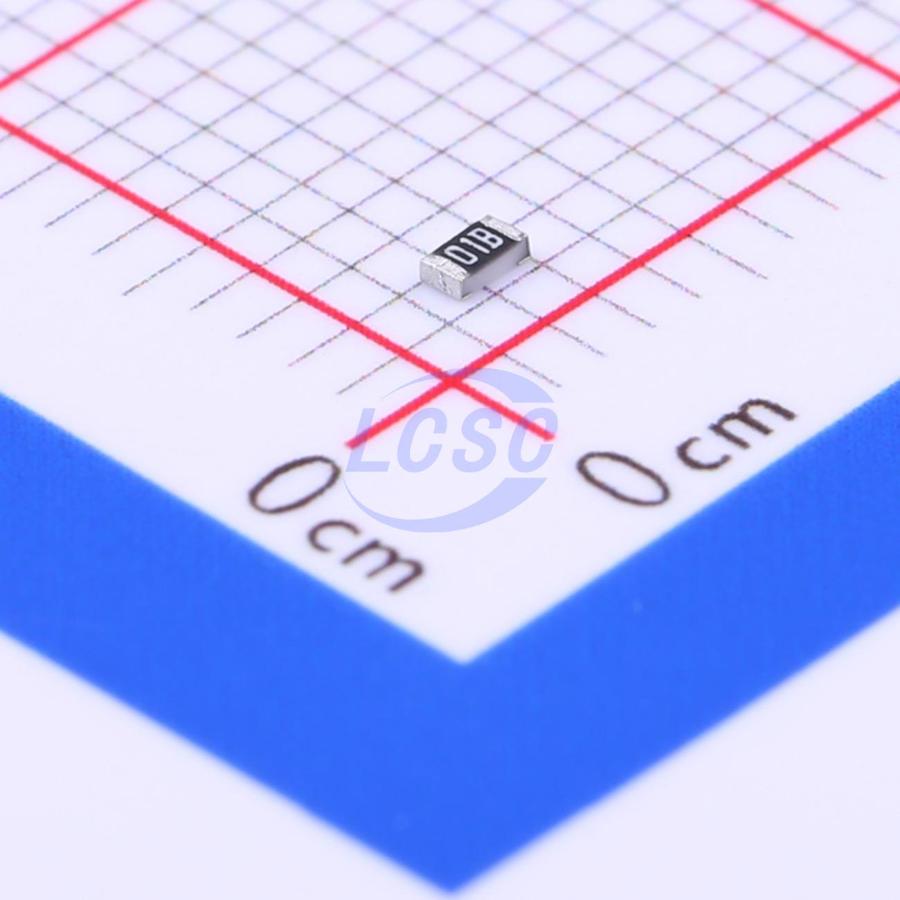

0603WAF1001T5E
1kΩ ±1% 100mW 0603 Thick Film Resistor
RES 1kΩ ±1% 100mW 0603
- Manufacturer
- UNI-ROYAL
- Manufacturer part #
- 0603WAF1001T5E
- Store part #
- C21190
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,22,400 in stock
#C21190
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.344 | ₹34.40 |
| 1,000+ | ₹0.2778 | ₹277.80 |
| 5,000+ | ₹0.2381 | ₹1,190.50 |
| 10,000+ | ₹0.1852 | ₹1,852.00 |
| 50,000+ | ₹0.172 | ₹8,600.00 |
100 × ₹0.344
₹34.40
excl. GST
₹40.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
0603WAF1001T5E
₹34.40 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 1kΩ
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.024 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NQ03WAF1001T5E#C2758735UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 81,400 | ₹0.5027 · 81,400 in stock | View |
 | HP03W5F1001T5E#C2759450UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 5,600 | ₹0.3175 · 5,600 in stock | View |
 | PS03W4F1001T5E#C2784879UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 2,000 | ₹0.7144 · 2,000 in stock | View |
 | 0603WAD1001T5E#C51218UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 41,950 | ₹1.49 · 41,950 in stock | View |
 | TC0350F1001T5F#C2989473UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 700 | ₹0.8732 · 700 in stock | View |
Questions about 0603WAF1001T5E
Is This 0603 Resistor Compatible With Reflow Soldering Processes?
Yes, this UNI-ROYAL thick film chip resistor features a standard 0603 surface mount package with reliable terminations, making it fully compatible with automated pick-and-place systems and standard lead-free reflow soldering profiles.
What Should I Consider if Looking for Alternatives or Replacements for This Part?
When sourcing a replacement, look for any standard 0603 thick film chip resistor with a resistance of 1kΩ, a power rating of at least 100mW (1/10W), and a tolerance of ±1% or tighter. Ensure the temperature coefficient (±100ppm/℃) matches your application's stability requirements.
What Are the Common Application Scenarios for a 1kΩ 0603 Resistor?
This 1kΩ resistor is highly versatile and commonly used in consumer electronics, industrial automation, and telecommunication devices. It is ideal for pull-up or pull-down networks, current-limiting for low-power LEDs, digital signal biasing, and voltage dividers.
What Are the Key Technical Specifications Regarding Its Voltage and Temperature Limits?
This resistor has a maximum working voltage rating of 75V and operates reliably within a wide temperature range of -55℃ to +155℃, supported by a temperature coefficient of ±100ppm/℃ to maintain stability under varying thermal conditions.
What Are the Best Practices for the Usage and Implementation of This Chip Resistor?
For optimal performance, do not exceed its maximum power rating of 100mW or voltage rating of 75V. Ensure proper PCB thermal management and pad design for the 0603 footprint, and verify that operating environmental temperatures remain within its specified limits to avoid derating.
