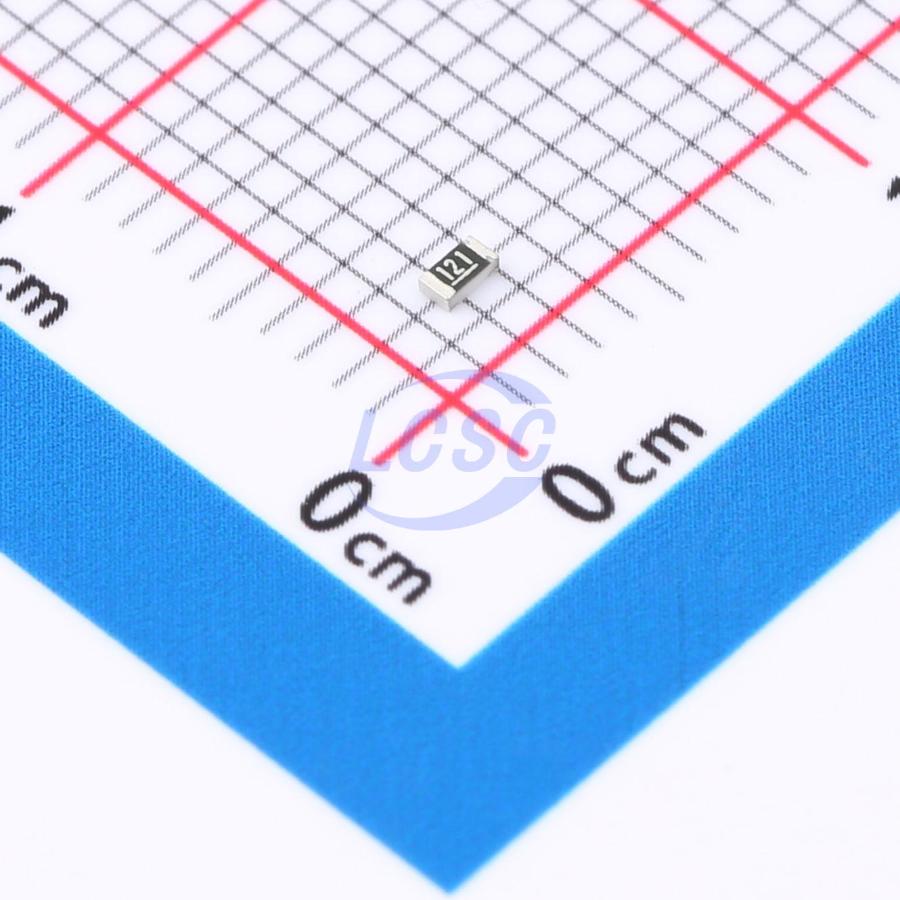

0603WAF1200T5E
120Ω ±1% 100mW 0603 Thick Film Resistor
RES 120Ω ±1% 100mW 0603
- Manufacturer
- UNI-ROYAL
- Manufacturer part #
- 0603WAF1200T5E
- Store part #
- C22787
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,77,600 in stock
#C22787
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.4101 | ₹41.01 |
| 1,000+ | ₹0.3175 | ₹317.50 |
| 5,000+ | ₹0.2778 | ₹1,389.00 |
| 10,000+ | ₹0.2117 | ₹2,117.00 |
| 50,000+ | ₹0.1852 | ₹9,260.00 |
100 × ₹0.4101
₹41.01
excl. GST
₹48.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
0603WAF1200T5E
₹41.01 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 120Ω
- Voltage Rating
- 75V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.024 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PS03W4F1200T5E#C2784893UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 700 | ₹0.3572 · 700 in stock | View |
 | TC0325B1200T5F#C2988960UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 1,600 | ₹3.00 · 1,600 in stock | View |
| HP03W5F1200T5E#C2774169UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote | |
 | CQ03WAF1200T5E#C966677UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote |
| 0603WAD1200T5E#C2766971UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote | |
Questions about 0603WAF1200T5E
What electrical resistance, tolerance precision, power rating, and temperature coefficient define the 0603WAF1200T5E?
The UNI-ROYAL 0603WAF1200T5E is a thick film chip resistor with a nominal resistance of 120 Ω. It is rated for 0.1 W (1/10 W) at 70°C, has a ±1% resistance tolerance (code F), and for resistance values above 10 Ω, a temperature coefficient of ±100 ppm/°C.
What maximum working voltage ratings and operating temperature limits apply to this 0603 resistor?
The 0603 resistor has a maximum working voltage of 75 V, a maximum overload voltage of 150 V, and an operating temperature range of -55°C to +155°C. It is rated for continuous operation at 70°C, with power derated above this temperature until it reaches zero at 155°C.
Which physical dimensions specify the 0603 package?
The resistor is supplied in the 0603 package size with nominal dimensions of 1.60 ± 0.10 mm (L) × 0.80 ± 0.10 mm (W) × 0.45 ± 0.10 mm (H). The recommended PCB land pattern for the 0603 package is A = 0.9 mm, B = 0.65 mm, C = 0.8 mm, and D = 2.1 mm.
How is the UNI-ROYAL part number 0603WAF1200T5E decoded?
The 0603WAF1200T5E part number identifies a 0603 chip resistor with a 1/10 W (WA) power rating, ±1% (F) resistance tolerance, and a resistance code of 1200, which represents 120 Ω. The T indicates tape-and-reel packaging, 5 denotes a standard packing quantity of 5,000 pieces, and E designates the lead-free/environmental protection version.
What soldering conditions are specified for SMT assembly of the 0603WAF1200T5E?
The datasheet states that the resistor is suitable for both wave and reflow soldering. For the soldering heat test, the resistor is immersed in a solder bath at 260°C ± 5°C for 10 ± 1 seconds.
