0805W8F0000T5E

If this part is temporarily out of stock, you can easily substitute it with other standard thick film 0805 0Ω jumpers (often listed with a tolerance of ±1% or as a simple 0-ohm link) from reputable brands such as Yageo, Vishay, or Bourns, as long as they match the 125mW power rating and 0805 footprint.

This 0Ω thick film resistor is primarily used as a zero-ohm jumper. Typical application scenarios include serving as a configurable bridge on a PCB to enable or disable specific circuits, acting as a placeholder for future component testing, or routing traces across other tracks on single-layer board designs.

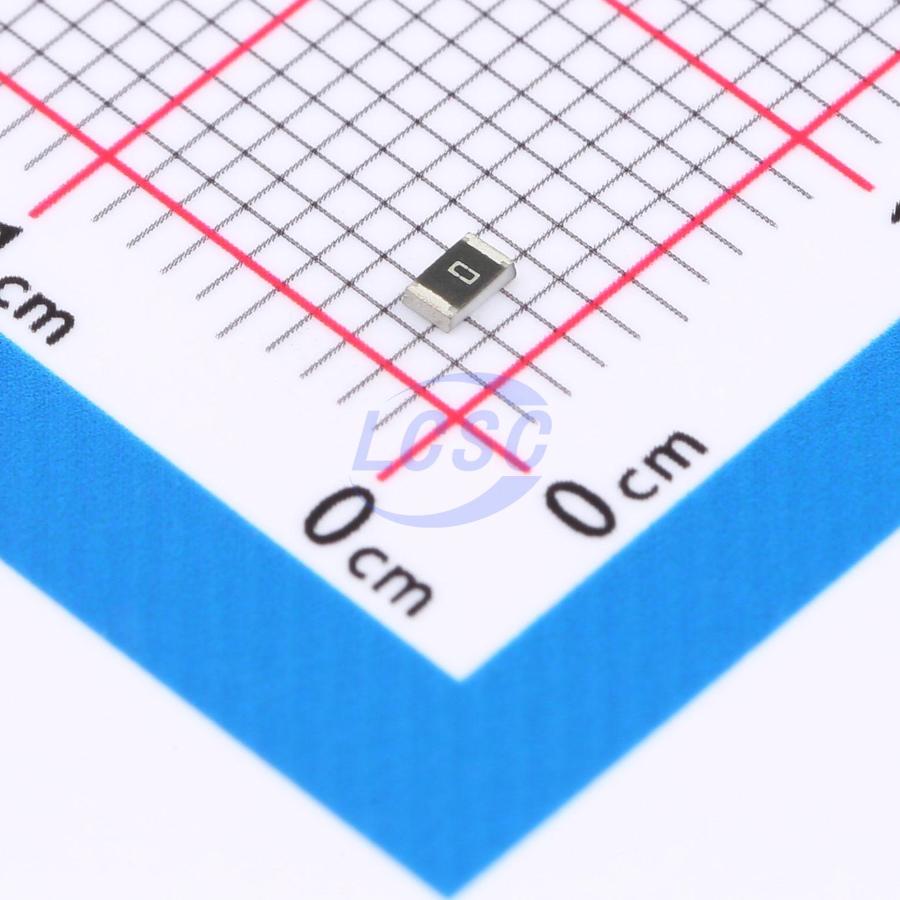

The UNI-ROYAL 0805W8F0000T5E is a thick film chip resistor with a resistance value of 0Ω and a ±1% tolerance. It features a power rating of 125mW (1/8W), a voltage rating of 150V, a temperature coefficient of ±800ppm/°C, and a wide operating temperature range spanning from -55°C to +155°C.

To implement this component, simply treat it as a standard 0805 jumper wire in your PCB layout design. It is soldered directly across the designated pads on the board to close the circuit, allowing current to bridge safely over specific traces without introducing significant resistance or altering circuit metrics.

Yes, this resistor is fully compatible. The UNI-ROYAL 0805W8F0000T5E features a standard 0805 surface mount package, making it completely compatible with automated SMT production lines, pick-and-place systems, and standard reflow soldering processes.
