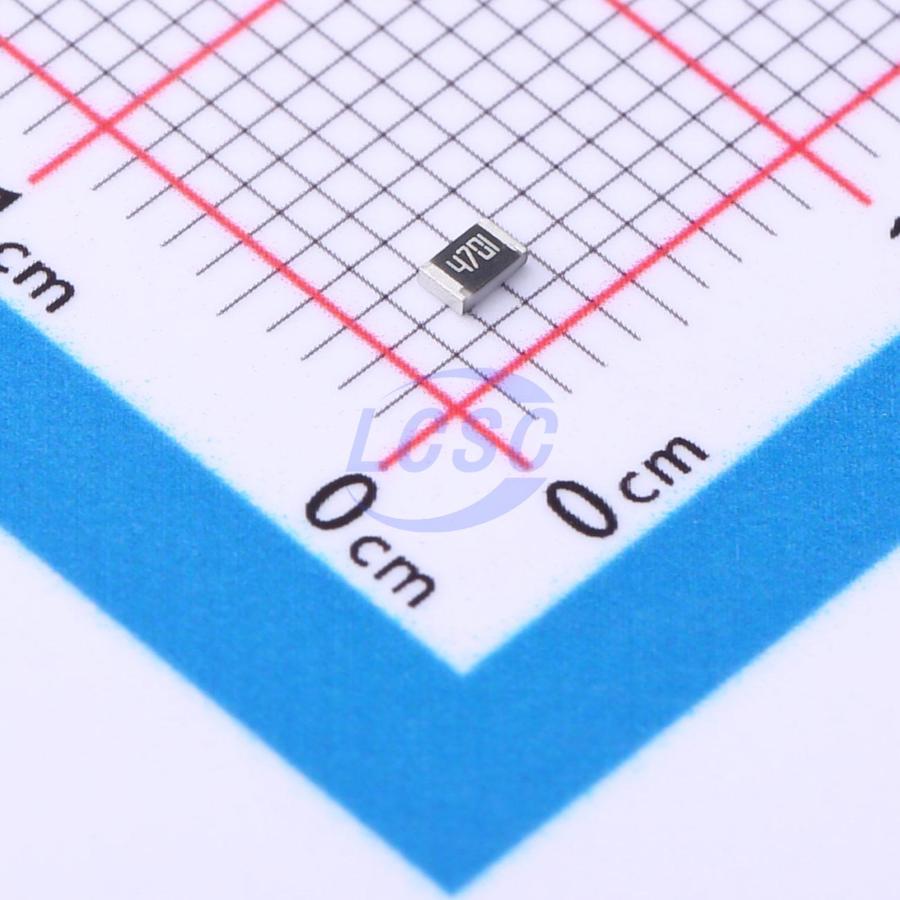

0805W8F4701T5E
4.7kΩ ±1% 125mW 0805 Thick Film Resistor
RES 4.7kΩ ±1% 125mW 0805
- Manufacturer
- UNI-ROYAL
- Manufacturer part #
- 0805W8F4701T5E
- Store part #
- C17673
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,42,100 in stock
#C17673
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.6747 | ₹67.47 |
| 1,000+ | ₹0.5292 | ₹529.20 |
| 5,000+ | ₹0.4631 | ₹2,315.50 |
| 10,000+ | ₹0.4234 | ₹4,234.00 |
| 50,000+ | ₹0.3969 | ₹19,845.00 |
| 1,00,000+ | ₹0.3837 | ₹38,370.00 |
100 × ₹0.6747
₹67.47
excl. GST
₹79.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
0805W8F4701T5E
₹67.47 for 100 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 4.7kΩ
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NQ05W8F4701T5E#C965111UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 4,100 | ₹0.7938 · 4,100 in stock | View |
 | TC0550F4701T5G#C2989070UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 4,967 | ₹0.860 · 4,967 in stock | View |
 | TC0525B4701T5G#C2988931UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 21,370 | ₹4.62 · 21,370 in stock | View |
 | HP05W3F4701T5E#C2759288UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | On request | Price on request | Quote |
| PS05W3F4701T5E#C2785351UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | On request | Price on request | Quote | |
Questions about 0805W8F4701T5E
What Are the Core Electrical Characteristics That Define This Resistor's Performance Limits?
This thick film resistor features a 4.7kΩ resistance with a ±1% tolerance, a power rating of 125mW, and a maximum operating voltage of 150V, making it suitable for precise, low-power circuitry.
What Is the Safe Operating Temperature Range for This Surface-Mount Component?
This surface-mount resistor is rated for stable operation across a wide thermal environment, safely supporting operating temperatures ranging from -55°C up to +155°C.
What Are the Key Technical Specifications Regarding Temperature Coefficients and Voltage Ratings?
The resistor features a resistance of 4.7kΩ with a ±1% tolerance. It operates safely within a temperature range of -55°C to +155°C, possesses a temperature coefficient of ±100ppm/°C, and has a maximum operating voltage rating of 150V.
What Should I Look For if I Need to Find a Suitable Alternative or Replacement for This Part?
When looking for an alternative, ensure the replacement is a Thick Film Resistor with an 0805 package, a 4.7kΩ resistance, a tolerance of ±1% or better, and a power rating of at least 125mW. Brands with similar specifications can serve as a direct substitute.
Is This Chip Resistor Compatible With Standard 0805 Surface-Mount Device (SMD) Footprints?
Yes, this resistor features a standard 0805 package size. It is fully compatible with any printed circuit board (PCB) designed with a standard 0805 pad layout, making it a drop-in component for your automated or manual surface-mount assembly.
