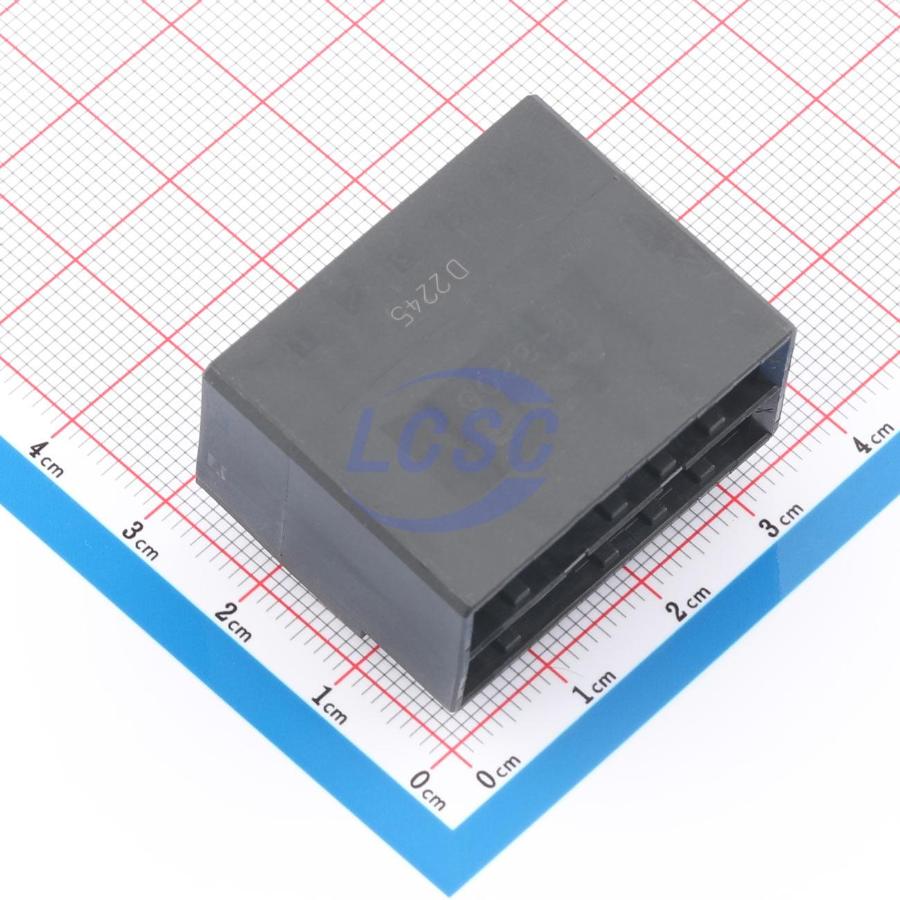

1-316080-5

Connector type: board-to-wire connector, rated current 15A, available in gold or tin plating. Connector system: board-to-wire, number of pins: 10, number of rows: 2, centerline spacing (pitch): 5.08mm (0.2 inches), PCB mounting orientation: horizontal.

Key features

• Product Type Features
• Configuration Features
• Main Body Features
• Contact Features
• Termination Features
• Housing Features
• Operating Conditions
• Operation/Application
• Industry Standards
• Packaging Features
• Product Compliance: Compliant with EU REACH Regulation (EC) No. 1907/2006, ECHA Candidate List (235) as of June 2023, declared compliant with the June 2023 Candidate List (235), contains no REACH SVHCs
• Halogen Content: Not Low Halogen - Contains Bromine or Chlorine > 900 ppm
• Soldering Process Capability: Capable of withstanding wave soldering at 265°C
• Product Compliance Statement: This information is provided based on reasonable inquiry of suppliers and represents current actual knowledge based on information they have provided; this information is subject to change. TE part numbers identified as compliant with EU RoHS have maximum weight concentrations of lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, and DIBP of 0.1% in homogeneous materials, and cadmium of 0.01%, or comply with exemptions to these limits as specified in the Annex of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU; components may not be CE marked. Additionally, TE part numbers identified as compliant with EU ELV have maximum weight concentrations of lead, hexavalent chromium, and mercury of 0.1% in homogeneous materials, and cadmium of 0.01%, or comply with exemptions to these limits as specified in the Annex of Directive 2000/53/EC (ELV). Regarding REACH, information on SVHCs in articles for this TE part number is based on the latest "Guidance on Requirements for Substances in Articles" published by ECHA.
