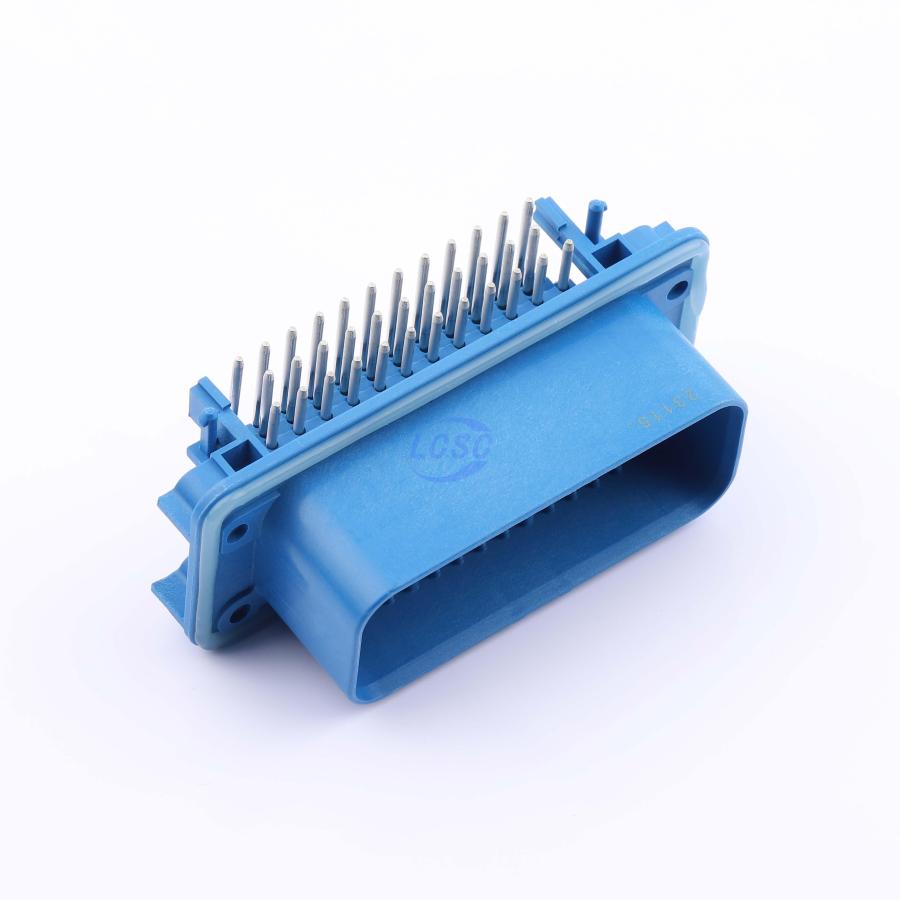

1-776163-5

Recommended mounting screw size is 2.50 - 3.00mm [0.099 - 0.118 inches] thread-forming self-tapping screws, such as Delta PT, with a tightening torque of 0.6 - 0.8 N·m. Customers should test screw size and type to verify their selection for the application. A 5-digit date code is used at this location: the first 2 digits indicate the year, the middle 2 digits indicate the week, and the last digit indicates the day. Housing colors are mechanically matched and can only mate with plug assemblies of the same color. Materials: plug housing - glass-filled PBT; pins - tin-plated or gold-plated brass; gasket - silicone. The plug mates with plug assembly 776164 using reel terminals 770520 or bulk terminals 770854. Recommended mounting hole layout for panels with a maximum thickness of 5.0. Recommended layout for PCBs with a thickness of 1.57. If thickness exceeds 2.0, optional Z-Z cross-section construction, scale 6:1. Ensure the plug is flush with the panel surface on all sides before tightening to final torque.
