IDCHIPDatasheet (PDF)

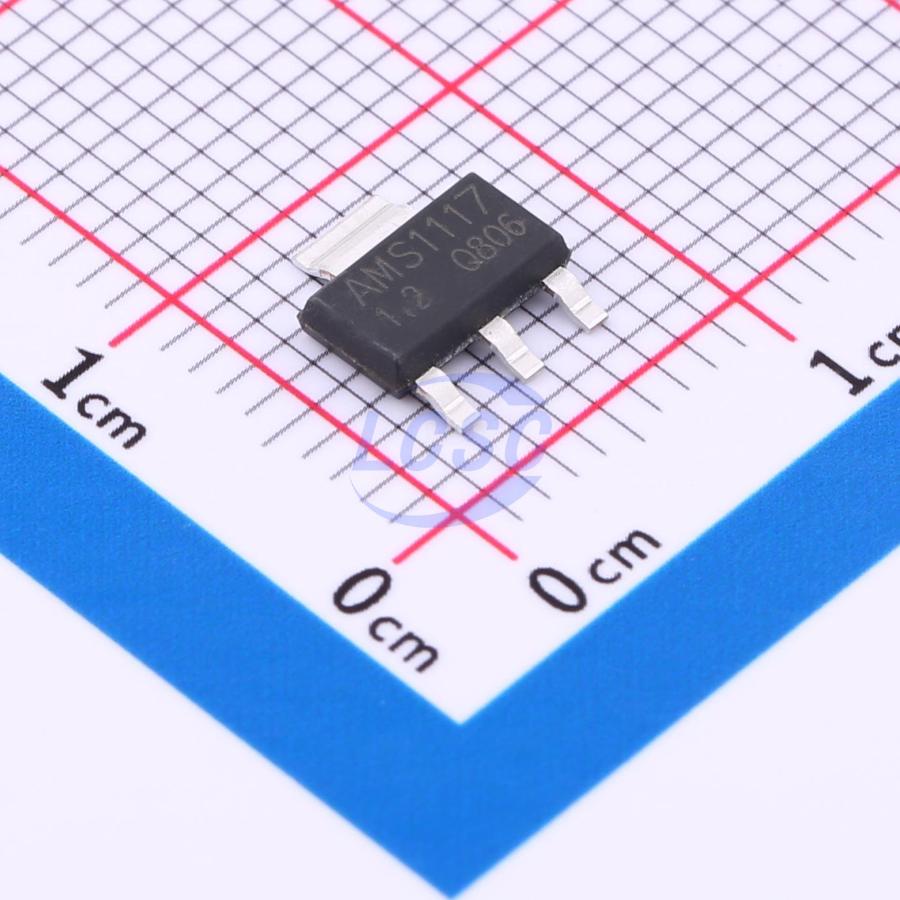

1117-1.2
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
IC REG LINEAR 1.2V 1A SOT-223
- Manufacturer
- IDCHIP
- Manufacturer part #
- 1117-1.2
- Store part #
- C5125086
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C5125086
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.37 | ₹83.70 |
| 100+ | ₹6.62 | ₹662.00 |
| 300+ | ₹5.74 | ₹1,722.00 |
| 2,500+ | ₹5.08 | ₹12,700.00 |
| 5,000+ | ₹4.55 | ₹22,750.00 |
| 10,000+ | ₹4.29 | ₹42,900.00 |
10 × ₹8.37
₹83.70
excl. GST
₹98.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
1117-1.2
₹83.70 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.22 g
Overview
The 1117 is a positive-output low-dropout three-terminal linear voltage regulator with a dropout voltage of 1.2V at 1A output current. It is available in two versions: fixed voltage output and adjustable voltage output. The fixed output voltage versions (1.5V, 1.8V, 2.5V, 3.3V, 5.0V) and the adjustable version offer 1% output voltage accuracy; the fixed 1.2V version has an output voltage accuracy of 2%. The 1117 integrates internal overtemperature protection and current limiting circuits, making it suitable for a wide range of electronic applications.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-I active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- SMPS post regulators
Key features
- 1% output voltage accuracy for fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable versions
- 2% output voltage accuracy for fixed 1.2V output
- Low dropout voltage: only 1.2V at 1A output current
- Current limiting
- Thermal shutdown
- Temperature range: -40°C~125°C
