UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
MSKSEMIDatasheet (PDF)

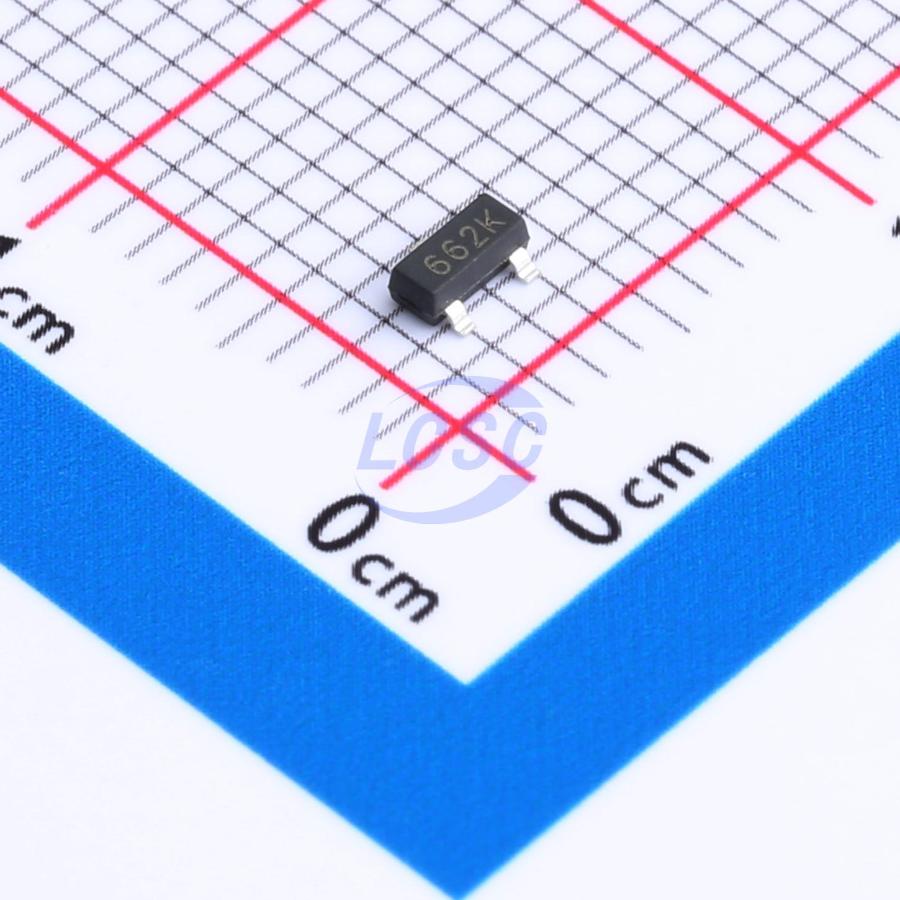

XC6206P332MR-MS
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
High-precision, low-power 3-terminal positive voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- XC6206P332MR-MS
- Store part #
- C5252899
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,02,250 in stock
#C5252899
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.32 | ₹116.00 |
| 500+ | ₹1.84 | ₹920.00 |
| 3,000+ | ₹1.35 | ₹4,050.00 |
| 6,000+ | ₹1.19 | ₹7,140.00 |
| 24,000+ | ₹1.06 | ₹25,440.00 |
| 51,000+ | ₹0.979 | ₹49,929.00 |
50 × ₹2.32
₹116.00
excl. GST
₹136.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P332MR-MS
₹116.00 for 50 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
XC6206PXXXMR-MS series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206PXXXMR-MS consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 3.6V. XC6206PXXXMR-MS series are available in SOT-23 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- Low Quiescent Current: 8uA at 6V
- Output voltage accuracy: tolerance ±2.5%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7333-A-MS#C7434427MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 270 | ₹9.13 · 270 in stock | View |
 | HT7333-1-MS#C7434222MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 520 | ₹10.56 · 520 in stock | View |
 | MCP1700T-3302E/TT(MS)#C20627188MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 855 | ₹19.95 · 855 in stock | View |
 | AP2125N-3.3TRG1(MS)#C22365435MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 160 | ₹13.73 · 160 in stock | View |
