IDCHIPDatasheet (PDF)
1117-5

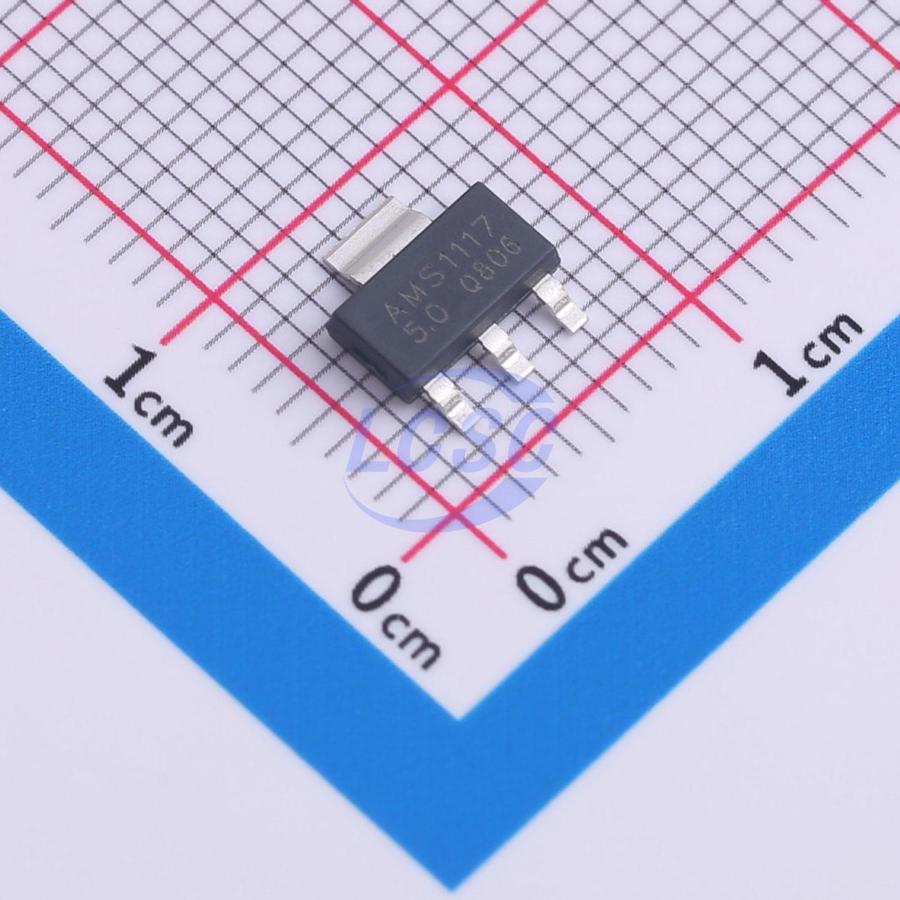

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
IC REG LINEAR 5V 1A SOT-223
- Manufacturer
- IDCHIP
- Manufacturer part #
- 1117-5
- Store part #
- C5125089
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C5125089
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.16 | ₹91.60 |
| 100+ | ₹7.38 | ₹738.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 2,500+ | ₹4.96 | ₹12,400.00 |
| 5,000+ | ₹4.43 | ₹22,150.00 |
| 10,000+ | ₹4.17 | ₹41,700.00 |
10 × ₹9.16
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
1117-5
₹91.60 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.23 g
Overview
The 1117 is a positive-output low-dropout three-terminal linear voltage regulator with a dropout voltage of 1.2V at 1A output current. It is available in two versions: fixed voltage output and adjustable voltage output. The fixed output voltage versions (1.5V, 1.8V, 2.5V, 3.3V, 5.0V) and the adjustable version offer 1% output voltage accuracy; the fixed 1.2V version has an output voltage accuracy of 2%. The 1117 integrates internal overtemperature protection and current limiting circuits, making it suitable for a wide range of electronic applications.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-I active terminators
- Mobile phones
- Cordless telephones
- Battery-powered systems
- Portable devices
- SMPS post regulators
Key features
- Fixed output voltage versions (1.5V, 1.8V, 2.5V, 3.3V, 5.0V) and adjustable version with 1% voltage accuracy
- Fixed 1.2V output voltage accuracy: 2%
- Low dropout voltage: only 1.2V at 1A output current
- Current limiting
- Thermal shutdown
- Temperature range: -40℃ to 125℃
