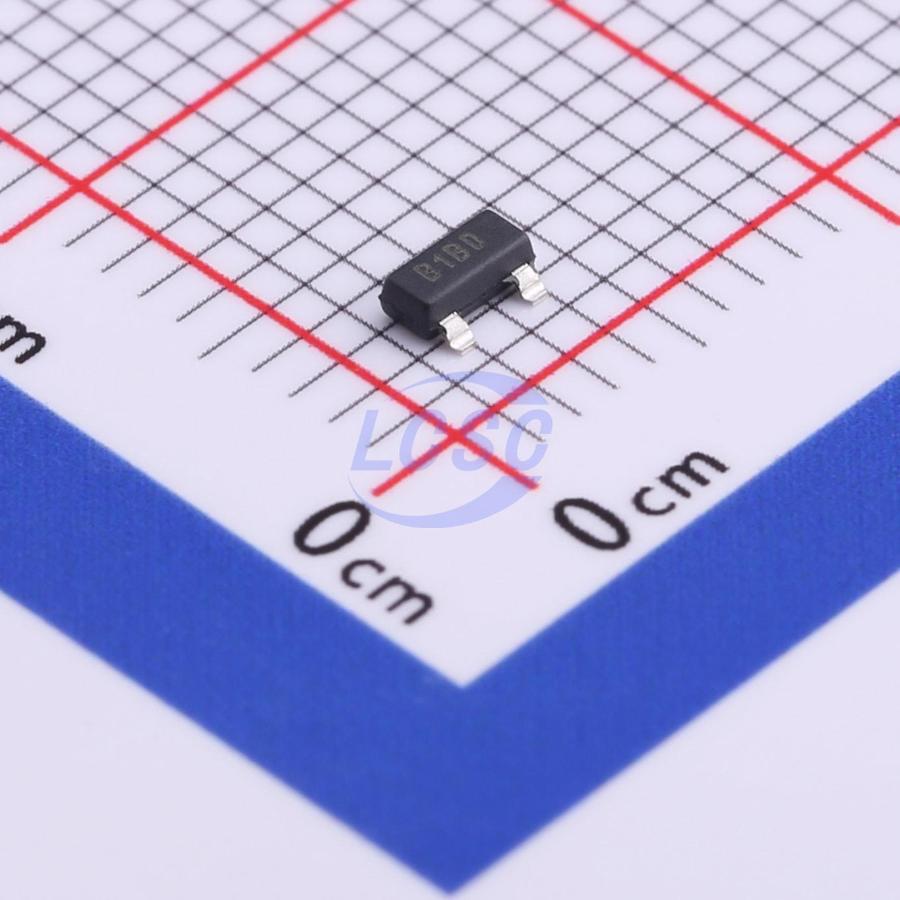

11AA010T-I/TT
1Kbit 100kHz Single bus SOT-23 Memory RoHS
1K - 16K UNI/O Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,336 in stock
#C616172
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.33 | ₹92.33 |
| 10+ | ₹74.09 | ₹740.90 |
| 30+ | ₹64.96 | ₹1,948.80 |
| 100+ | ₹55.84 | ₹5,584.00 |
| 500+ | ₹50.41 | ₹25,205.00 |
| 1,000+ | ₹47.59 | ₹47,590.00 |
1 × ₹92.33
₹92.33
excl. GST
₹108.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
11AA010T-I/TT
₹92.33 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Built-in write enable latch (WEL);Hardware write protection function;Power-down/Power-up protection circuit
- Memory Size
- 1Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 100kHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- Single bus
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The 11AAXXX/11LCXXX (11xx*) devices are a family of 1 Kbit through 16 Kbit Serial Electrically Erasable PROMs. The devices are organized in blocks of x8-bit memory and support the single 1/0 UNI/O serial bus. By using Manchester encoding techniques, the clock and data are combined into a single, serial bit stream (SClO), where the clock signal is extracted by the receiver to correctly decode the timing and value of each bit. Low-voltage design permits operation down to 1.8V (for 11AAxXX devices), with standby and active currents of only 1 uA and 1 mA, respectively. The 11xX family is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 3-lead SOT-23, 3-lead TO-92, 4-lead Chip Scale, 8-lead TDFN, and 8-lead MSOP.
Key features
- Single 1/O, UNI I/O Serial Interface Bus
- Low-Power CMOS Technology: - 1 mA active current, typical 1 μA standby current (max.) (l-temp) 128x8 through 2,048x8 Bit Organizations
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kbps Max. Bit Rate - Equivalent to 100 kHz Clock Frequency
- Self-Timed Write Cycle (including Auto-Erase)
- Page-Write Buffer for up to 16 Bytes
- STATUS Register for Added Control: - Write enable latch bit - Write-In-Progress bit
- Block Write Protection: - Protect none, 1/4, 1/2 or all of array
- Built-in Write Protection: - Power-on/off data protection circuitry - Write enable latch
- High Reliability: - Endurance: 1,000,000 erase/write cycles - Data retention: >200 years - ESD protection: >4,000 V
- 3-lead SOT-23 and TO-92 Packages
- 4-lead Chip Scale Package
- 8-lead PDIP, SOIC, MSOP, TDFN Packages
- Pb-Free and RoHS Compliant
- Available Temperature Ranges: - Industrial (l): -40℃ to +85℃ - Automotive (E): -40℃ to +125℃
