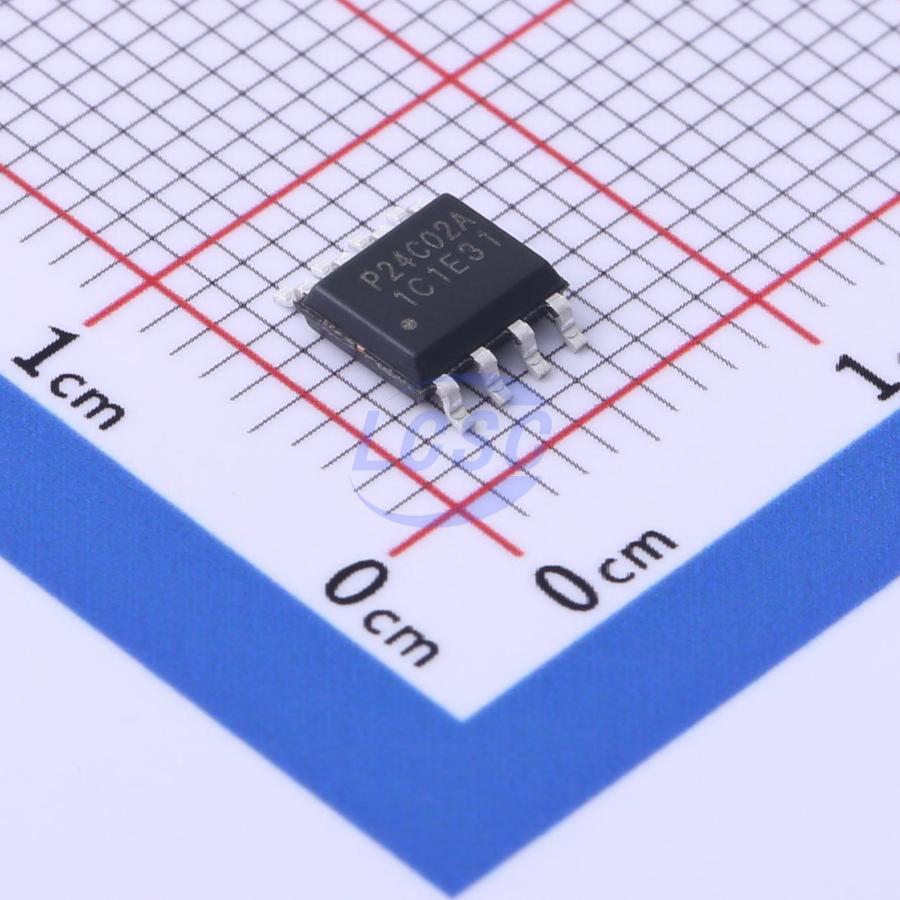

PUYA
P24C02A-SSH-MIR
2Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
2-Kbit I²C-compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,79,230 in stock
#C2836794
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.15 | ₹111.50 |
| 100+ | ₹8.88 | ₹888.00 |
| 300+ | ₹7.74 | ₹2,322.00 |
| 1,000+ | ₹6.88 | ₹6,880.00 |
| 4,000+ | ₹6.20 | ₹24,800.00 |
| 8,000+ | ₹5.86 | ₹46,880.00 |
10 × ₹11.15
₹111.50
excl. GST
₹131.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P24C02A-SSH-MIR
₹111.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.079 g
Overview
The P24C02A is 2-Kbit I²C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 256 x 8bits, which is organized in 8 bytes per page. P24C02A provides the following devices for different application.
Key features
- Single Supply Voltage and High Speed
- Minimum operating voltage down to 1.6V
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 2.5V
- Low power CMOS technology
- Read current 400uA, maximum
- Write current 1.6mA, maximum
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential & Random Read Features
- Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Self-timed Write Cycle (5ms maximum)
- High Reliability
- Endurance: >1 Million Write Cycles
- Data Retention: >100 Years
- ESD HBM: 4KV
- Latch-up Capability: +/ - 200mA
- Package: PDIP, SOP, TSSOP, UDFN, SOT23-5 and TSOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P24C02A-SSH-MIT#C2977249PUYA · SOP-8 | PUYA | SOP-8 | 100 | ₹7.53 · 100 in stock | View |
