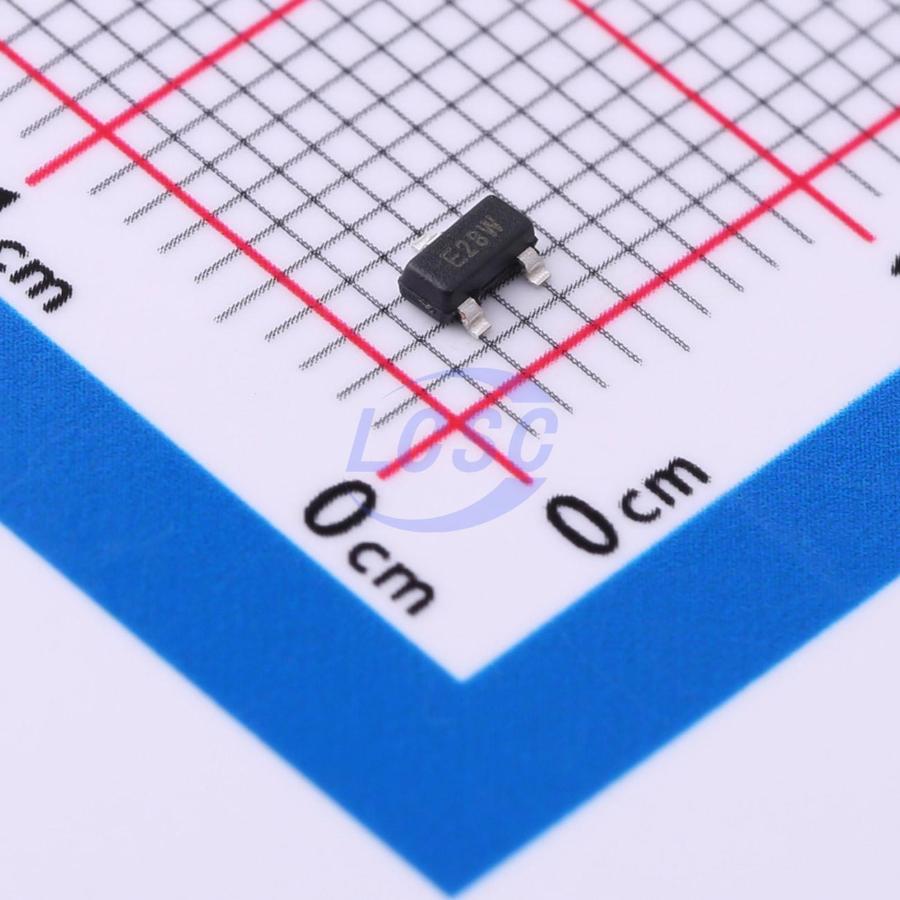

11AA02E48T-I/TT
2Kbit 100kHz Single bus SOT-23-3 Memory RoHS
2Kbit Serial Electrically Erasable PROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,128 in stock
#C616174
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.19 | ₹71.19 |
| 10+ | ₹63.60 | ₹636.00 |
| 30+ | ₹59.69 | ₹1,790.70 |
| 100+ | ₹56.00 | ₹5,600.00 |
| 500+ | ₹51.23 | ₹25,615.00 |
| 1,000+ | ₹49.92 | ₹49,920.00 |
1 × ₹71.19
₹71.19
excl. GST
₹84.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
11AA02E48T-I/TT
₹71.19 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Built-in write enable latch (WEL);Hardware write protection function;Power-down/Power-up protection circuit
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 100kHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- Single bus
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.75 g
Overview
The 11AA02EXX device is a 2 Kbit Serial Electrically Erasable PROM. The device is organized in blocks of x8-bit memory and support the single 1/0 UNI/O serial bus. By using Manchester encoding techniques, the clock and data are combined into a single, serial bit stream (SCIO), where the clock signal is extracted by the receiver to correctly decode the timing and value of each bit. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1 μA and 1 mA, respectively. The 11AA02EXX is available in standard 8-lead SOIC and 3-lead SOT-23 packages.
Key features
- Preprogrammed Globally Unique, 48-Bit or 64-Bit Node Address
- Compatible with EUI-48 and EUI-64
- Single 1/O, UNI I/O Serial Interface Bus
- Low-Power CMOS Technology: - 1 mA active current, typical - 1 μA standby current, maximum
- 256x8-Bit Organization
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kbps Maximum Bit Rate – Equivalent to 100 kHz Clock Frequency
- Self-Timed Write Cycle (including Auto-Erase)
- Page-Write Buffer for up to 16 Bytes
- STATUS Register for Added Control: - Write Enable Latch bit - Write-In-Progress bit
- Block Write Protection: - Protect none, 1/4, 1/2 or all of array
- Built-in Write Protection: - Power-on/off data protection circuitry - Write enable latch
- High Reliability: - Endurance: 1,000,000 erase/write cycles - Data retention: > 200 years - ESD protection: > 4,000V
- 3-Lead SOT-23 and 8-Lead SOIC Packages
- Pb-Free and RoHS Compliant
- Available Temperature Ranges: - Industrial (I): -40℃ to +85℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 11AA02UIDT-I/TT#C2061303MICROCHIP · SOT-23-3 | MICROCHIP | SOT-23-3 | On request | Price on request | Quote |
| 11AA02E64T-I/TT#C616175MICROCHIP · SOT-23-3 | MICROCHIP | SOT-23-3 | On request | Price on request | Quote | |
 | 11AA020T-I/TT#C616173MICROCHIP · SOT-23-3 | MICROCHIP | SOT-23-3 | On request | Price on request | Quote |
