VBsemi ElecDatasheet (PDF)

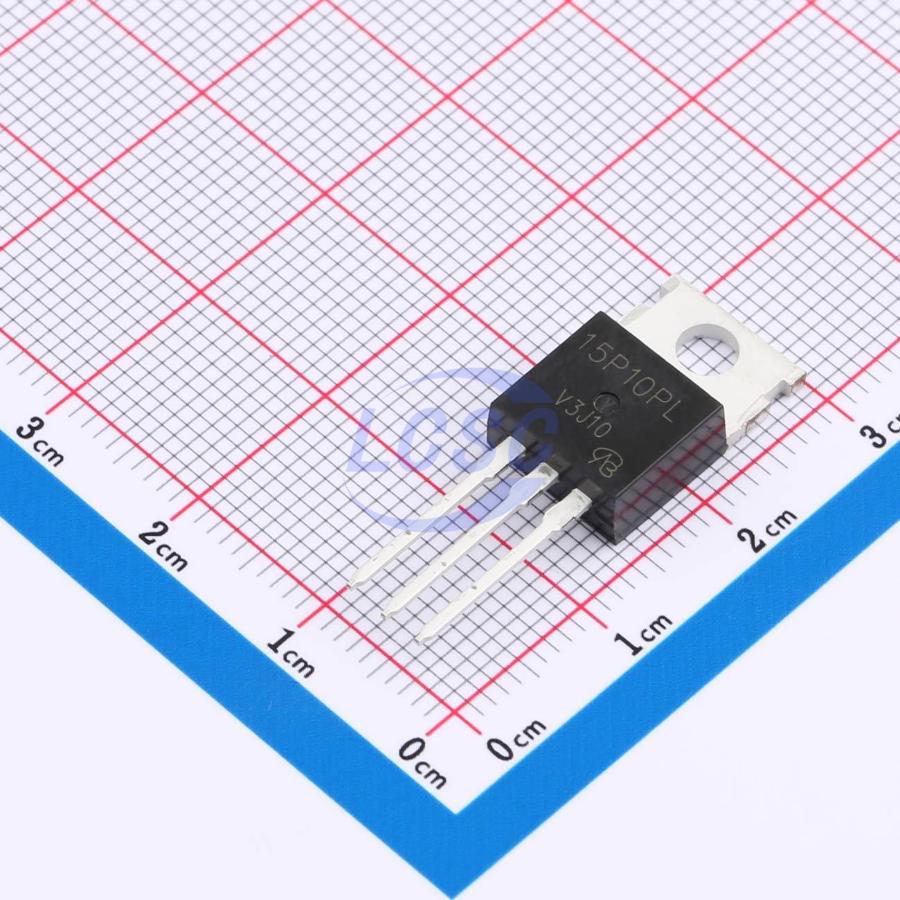

15P10PL TO220-VB
P-Channel 100V 23A 52.1W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 100V 23A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 15P10PL TO220-VB
- Store part #
- C18795024
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C18795024
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.92 | ₹131.92 |
| 10+ | ₹107.76 | ₹1,077.60 |
| 50+ | ₹87.38 | ₹4,369.00 |
| 100+ | ₹75.41 | ₹7,541.00 |
| 500+ | ₹68.28 | ₹34,140.00 |
| 1,000+ | ₹64.71 | ₹64,710.00 |
1 × ₹131.92
₹131.92
excl. GST
₹155.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
15P10PL TO220-VB
₹131.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 23A
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 52.1W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 100mΩ@10V;120mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.91 g
Overview
Applications
- Power Switch - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQP17P10-VB#C7494597VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹150.44 · 15 in stock | View |
 | CMP5940-VB#C19190225VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 47 | ₹147.61 · 47 in stock | View |
 | SPP15P10PL H-VB#C7568920VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹128.56 · 18 in stock | View |
 | PHP23NQ11T-VB#C52209337VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹77.94 · 3 in stock | View |
 | VBM2124N#C18212430VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 54 | ₹272.06 · 54 in stock | View |
