VBsemi ElecDatasheet (PDF)

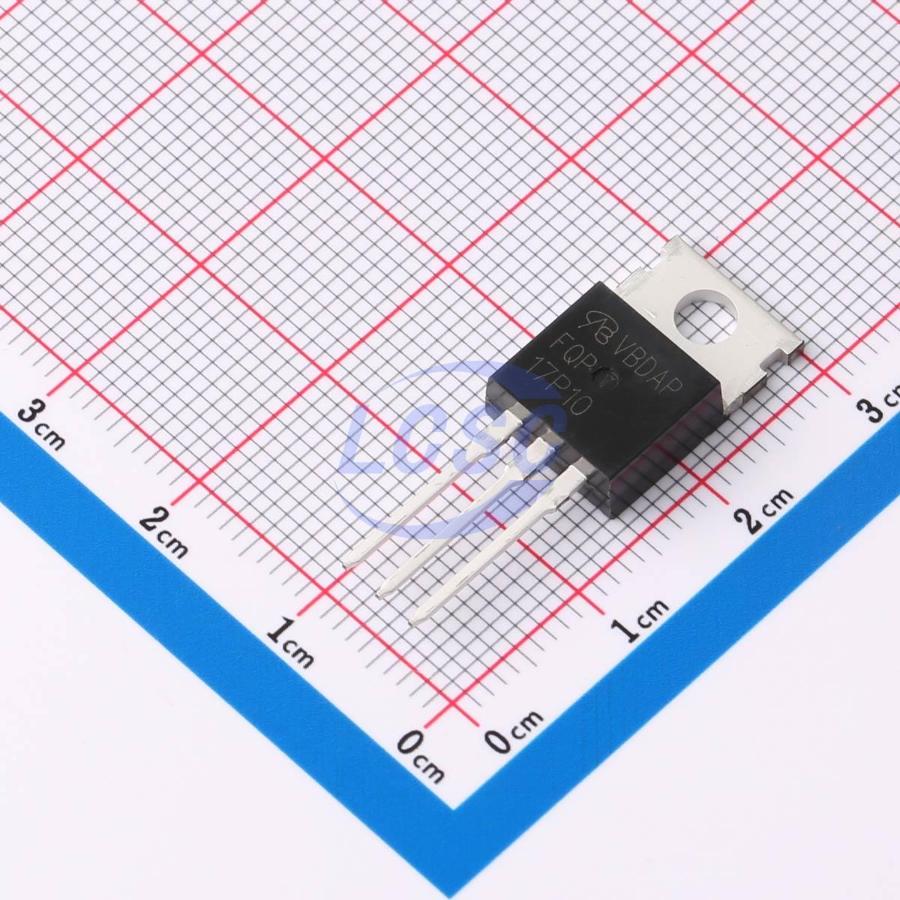

FQP17P10-VB
P-Channel 100V 23A 52.1W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 100V 23A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQP17P10-VB
- Store part #
- C7494597
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7494597
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.44 | ₹150.44 |
| 10+ | ₹125.62 | ₹1,256.20 |
| 50+ | ₹95.79 | ₹4,789.50 |
| 100+ | ₹83.39 | ₹8,339.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹150.44
₹150.44
excl. GST
₹177.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQP17P10-VB
₹150.44 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 23A
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 52.1W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 100mΩ@10V;120mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.772 g
Overview
Applications
- Power switch
- DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 15P10PL TO220-VB#C18795024VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹131.92 · 5 in stock | View |
 | CMP5940-VB#C19190225VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 47 | ₹147.61 · 47 in stock | View |
 | SPP15P10PL H-VB#C7568920VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹128.56 · 18 in stock | View |
 | PHP23NQ11T-VB#C52209337VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹77.94 · 3 in stock | View |
 | VBM2124N#C18212430VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 54 | ₹272.06 · 54 in stock | View |
