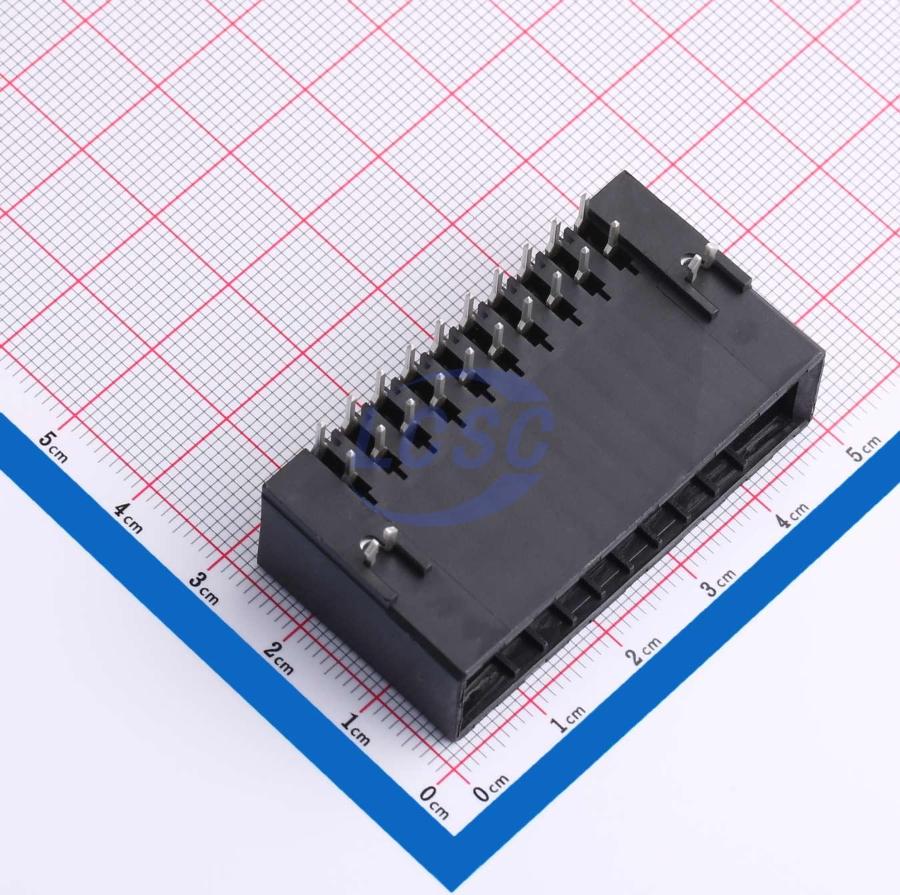

178308-3
Connector Header 3.81mm Pitch Right Angle -55℃~+105℃
Through Hole,Right Angle,P=3.81mmROHS3 CompliantActive
CONN HEADER TH R/A 3.81mm
- Manufacturer
- TE Connectivity
- Manufacturer part #
- 178308-3
- Store part #
- C574781
- Package / case
- Through Hole,Right Angle,P=3.81mm
- Category
- Headers, Male Pins
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C574781
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹672.76 | ₹672.76 |
1 × ₹672.76
₹672.76
excl. GST
₹793.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10 per tube
178308-3
₹672.76 for 1 + GST
Specifications
- Connector Type
- Right Angle
- Voltage Rating (Max)
- 250V
- Contact Material
- Copper alloy
- Number of PINs Per Row
- 10
- Number of Rows
- 2
- Pitch
- 3.81mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 15A
- Number of PINs
- 20P
- Operating Temperature
- -55℃~+105℃
- Contact Plating
- Tin
- Color
- Black
- Pin Structure
- 2x10P
- Row Spacing
- 5.08mm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 10 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 20.08 g
Overview
The connector type is board-to-wire, rated current 15A, with gold plating or tin plating options available. The connector system is board-to-wire, 20 positions, 2 rows, centerline spacing 3.81mm (0.15 inches), PCB mounting orientation is horizontal.
Key features
- Product Type Characteristics
- Configuration Characteristics
- Physical Characteristics
