SAEDatasheet (PDF)
1MMF02TS07F1008D

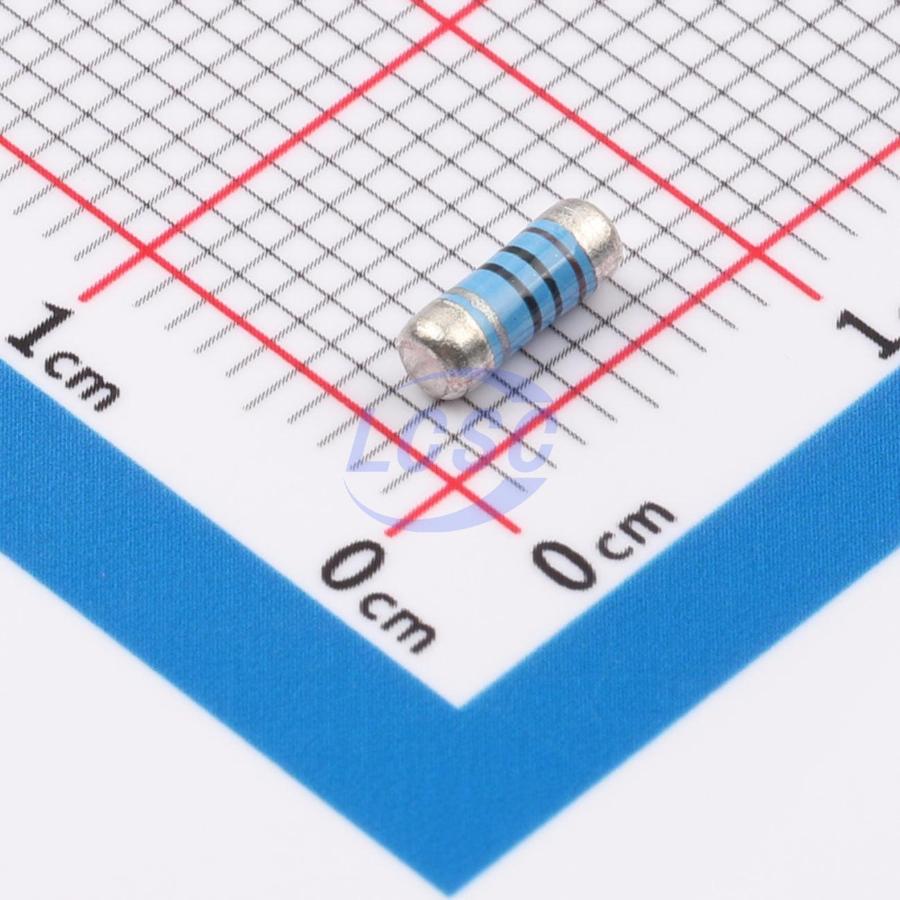

1Ω 500mW 350V Thin Film Resistor ±50ppm/℃ ±1% MELF-0207 Chip Resistor - Surface Mount
MELF-0207RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1MMF02TS07F1008D
- Store part #
- C51901666
- Package / case
- MELF-0207
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
640 in stock
#C51901666
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.76 | ₹57.60 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.07 | ₹1,221.00 |
| 2,000+ | ₹3.65 | ₹7,300.00 |
| 4,000+ | ₹3.32 | ₹13,280.00 |
| 10,000+ | ₹3.15 | ₹31,500.00 |
10 × ₹5.76
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
1MMF02TS07F1008D
₹57.60 for 10 + GST
Specifications
- Resistance
- 1Ω
- Power(Watts)
- 500mW
- Voltage Rating
- 350V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.111 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMB02070C1008FB200#C1884612VISHAY · MELF-0207 | VISHAY | MELF-0207 | 4,515 | ₹21.87 · 4,515 in stock | View |
 | SMM02070C1008FBP00#C2081970VISHAY · MELF-0207 | VISHAY | MELF-0207 | 1,155 | ₹50.47 · 1,155 in stock | View |
 | 1MMF10TSS07F1008D#C50086774SAE · MELF-0207 | SAE | MELF-0207 | 150 | ₹9.66 · 150 in stock | View |
 | RJM16M0207F0T1R00#C51823283shengleicheng · MELF-0207 | shengleicheng | MELF-0207 | 1,250 | ₹6.75 · 1,250 in stock | View |
 | CSR0207FTDT0010#C37635732Viking · MELF-0207 | Viking | MELF-0207 | 50 | ₹11.44 · 50 in stock | View |
