SAEDatasheet (PDF)
1MMF02TS07F3302D

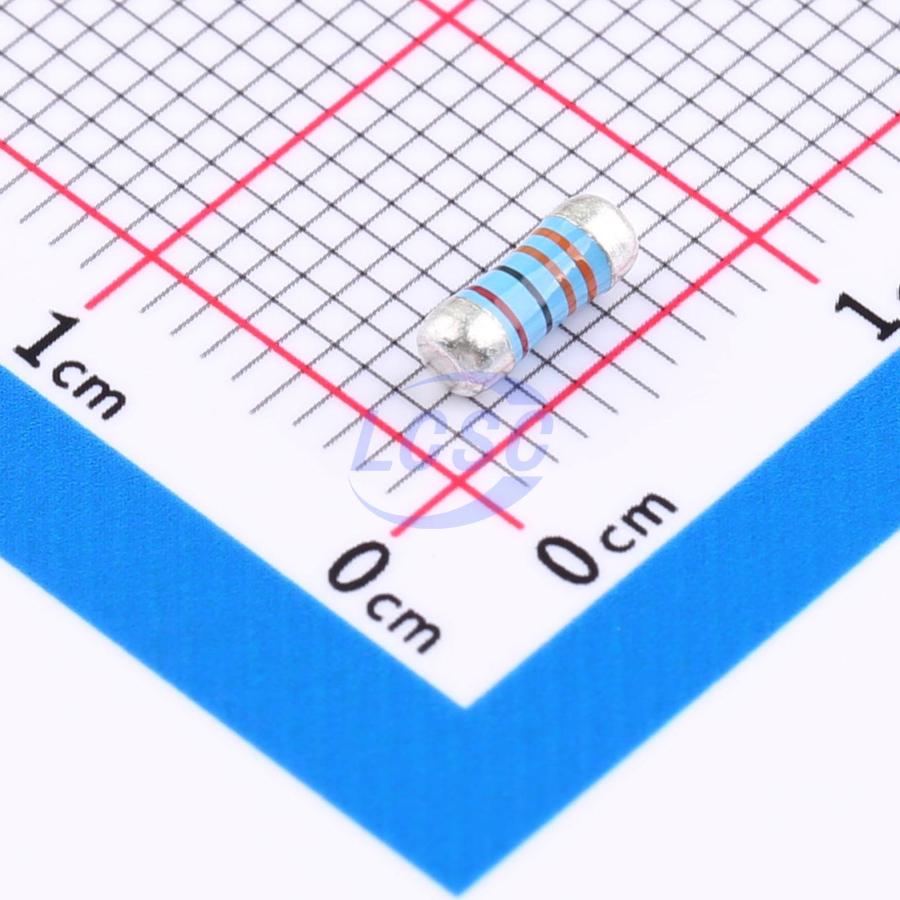

500mW 33kΩ 350V Thin Film Resistor ±50ppm/℃ ±1% MELF-0207 Chip Resistor - Surface Mount
MELF-0207RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1MMF02TS07F3302D
- Store part #
- C50086945
- Package / case
- MELF-0207
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
560 in stock
#C50086945
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.01 | ₹100.20 |
| 200+ | ₹3.92 | ₹784.00 |
| 600+ | ₹3.29 | ₹1,974.00 |
| 2,000+ | ₹2.92 | ₹5,840.00 |
| 10,000+ | ₹2.61 | ₹26,100.00 |
| 20,000+ | ₹2.43 | ₹48,600.00 |
20 × ₹5.01
₹100.20
excl. GST
₹118.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
1MMF02TS07F3302D
₹100.20 for 20 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 33kΩ
- Voltage Rating
- 350V
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (209 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.118 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1MMF10TSS07F3302D#C51901690SAE · MELF-0207 | SAE | MELF-0207 | 1,780 | ₹8.33 · 1,780 in stock | View |
| SMM02070C3302FBP00#C2141919VISHAY · MELF-0207 | VISHAY | MELF-0207 | On request | Price on request | Quote | |
 | 1MMF02TS07F3302C#C50086970SAE · MELF-0207 | SAE | MELF-0207 | 10 | ₹6.40 · 10 in stock | View |
| MMP100FRE33K#C2124389YAGEO · MELF-0207 | YAGEO | MELF-0207 | On request | Price on request | Quote | |
 | MMB02070C3302FB200#C3151631VISHAY · MELF-0207 | VISHAY | MELF-0207 | On request | Price on request | Quote |
