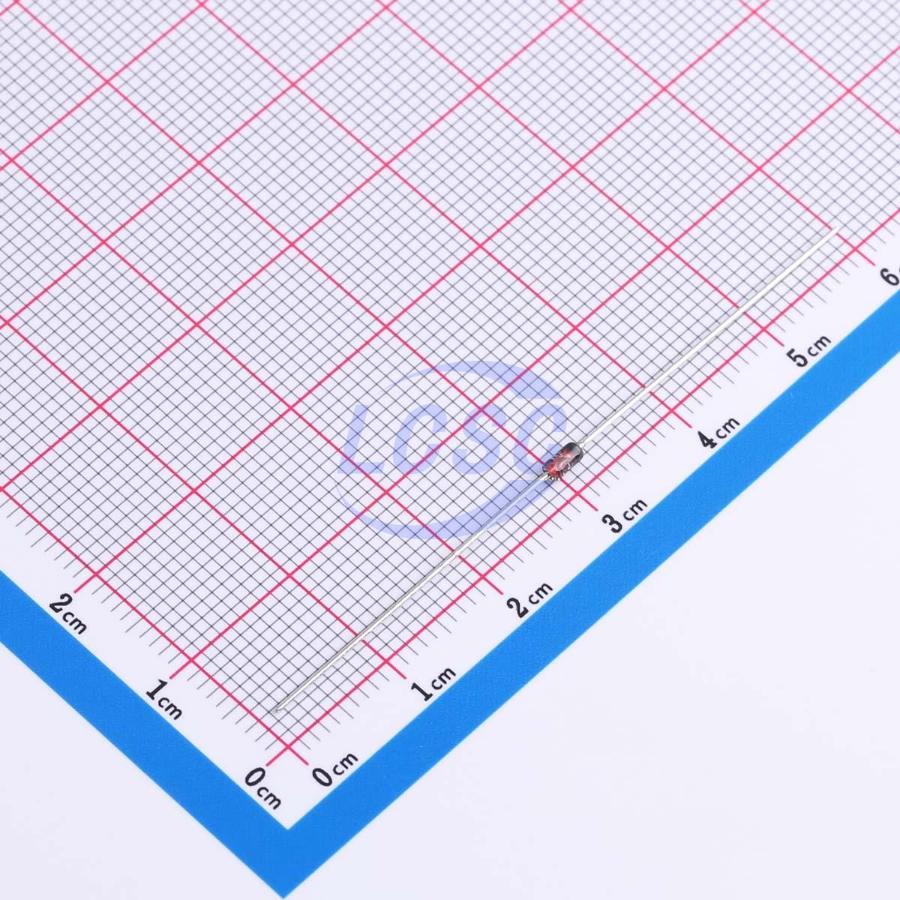

1N4148TR
Diode 100V 200mA Through Hole DO-35
DIODE GP 100V 200mA DO-35
- Manufacturer
- onsemi
- Manufacturer part #
- 1N4148TR
- Store part #
- C84410
- Package / case
- DO-35
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,03,600 in stock
#C84410
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.55 | ₹127.50 |
| 500+ | ₹2.06 | ₹1,030.00 |
| 1,500+ | ₹1.79 | ₹2,685.00 |
| 10,000+ | ₹1.55 | ₹15,500.00 |
| 20,000+ | ₹1.42 | ₹28,400.00 |
| 50,000+ | ₹1.34 | ₹67,000.00 |
50 × ₹2.55
₹127.50
excl. GST
₹150.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
1N4148TR
₹127.50 for 50 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Voltage - Forward(Vf@If)
- 1V@10mA
- Reverse Leakage Current (Ir)
- 5uA@75V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.173 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N4148#C258182onsemi · DO-35 | onsemi | DO-35 | 85,180 | ₹3.89 · 85,180 in stock | View |
 | 1N4148TA#C124481onsemi · DO-35 | onsemi | DO-35 | 47,900 | ₹3.63 · 47,900 in stock | View |
 | 1N4448TR#C258171onsemi · DO-35 | onsemi | DO-35 | 200 | ₹3.32 · 200 in stock | View |
 | 1N914BTR#C258180onsemi · DO-35 | onsemi | DO-35 | 13,760 | ₹3.08 · 13,760 in stock | View |
 | 1N4148-T50R#C896636onsemi · DO-35 | onsemi | DO-35 | 50 | ₹7.62 · 50 in stock | View |
Questions about 1N4148TR
What maximum reverse voltage, continuous forward current, and surge current limits apply to the 1N4148TR diode?
The 1N4148TR is rated for a maximum repetitive peak reverse voltage (VRRM) of 100 V and a DC forward current (IF) of 300 mA. It can withstand a non-repetitive peak forward surge current (IFSM) of 1.0 A with a 1.0 s pulse width or 4.0 A with a 1.0 μs pulse width.
How fast does the 1N4148TR switch, and what reverse recovery parameters define its high-speed performance?
The 1N4148TR has a maximum reverse recovery time (trr) of 4.0 ns when measured under the specified test conditions (IF = 10 mA, VR = 6.0 V, RL = 100 Ω, Irr = 1.0 mA). It also has a maximum total capacitance (CT) of 4.0 pF, measured at VR = 0 V and f = 1.0 MHz.
Which physical dimensions, lead configurations, and package standards specify this axial glass diode?
The 1N4148TR is supplied in a hermetically sealed glass JEDEC DO-35 (DO-204AH) axial-lead package. The glass body measures approximately 3.05 mm to 4.56 mm in length with a maximum diameter of 1.91 mm. The axial leads have a diameter of approximately 0.46 mm to 0.53 mm and a minimum lead length of 25.4 mm (1.0 inch).
What power ratings, thermal limits, and operating temperature boundaries apply to this glass-passivated diode?
The 1N4148TR has a maximum power dissipation (PD) of 500 mW at an ambient temperature of 25°C and a junction-to-ambient thermal resistance (θJA) of 300°C/W. The operating junction temperature range is −55°C to +175°C, while the storage temperature range is −65°C to +200°C.
What tape-and-reel packaging option is available for the 1N4148TR?
The "TR" suffix indicates that the 1N4148TR is supplied in Tape and Reel packaging. The ordering information identifies the 1N4148TR as the tape-and-reel version of the DO-35 (DO-204AH) axial-lead package. The datasheet does not specify reel dimensions, reel quantity, tape spacing, lead plating, or soldering characteristics.
