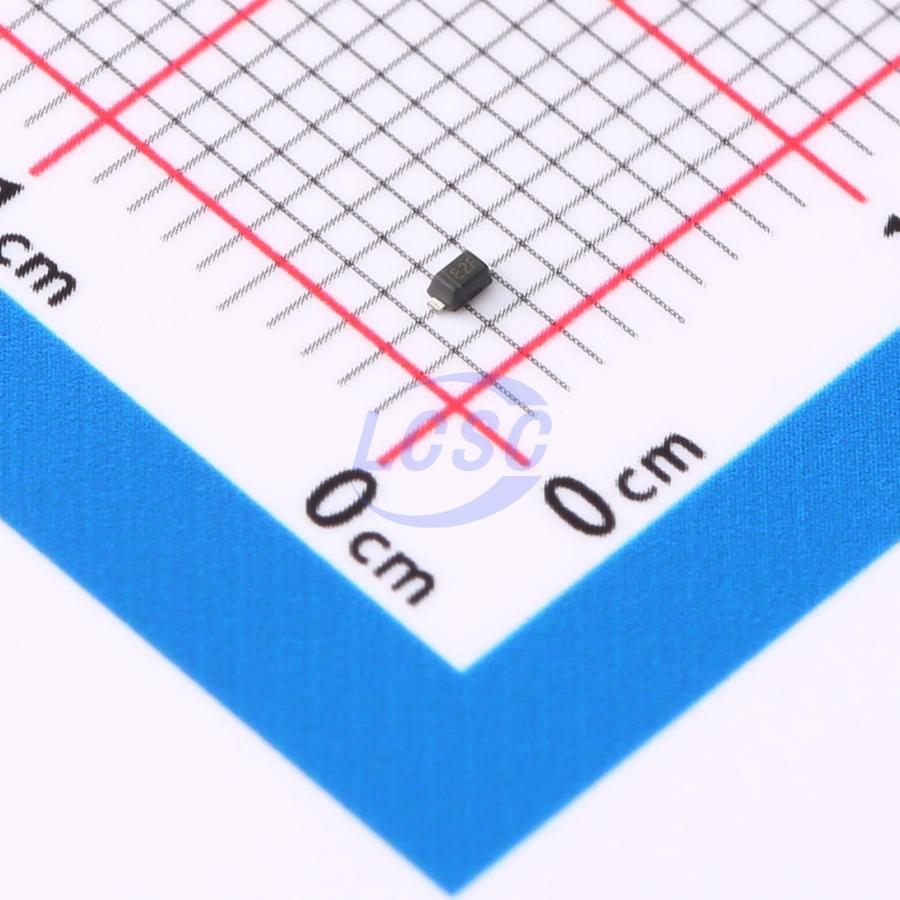

1N4448WT
Diode 75V Surface Mount SOD-523F
SOD-523FROHS3 CompliantActive
DIODE GP 75V SOD-523F
- Manufacturer
- onsemi
- Manufacturer part #
- 1N4448WT
- Store part #
- C896166
- Package / case
- SOD-523F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
320 in stock
#C896166
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.49 | ₹94.90 |
| 100+ | ₹7.89 | ₹789.00 |
| 300+ | ₹7.08 | ₹2,124.00 |
| 1,000+ | ₹6.48 | ₹6,480.00 |
| 5,000+ | ₹4.93 | ₹24,650.00 |
| 8,000+ | ₹4.70 | ₹37,600.00 |
10 × ₹9.49
₹94.90
excl. GST
₹111.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
1N4448WT
₹94.90 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Pd - Power Dissipation
- 200mW
- Voltage - Forward(Vf@If)
- 1V@100mA
- Reverse Leakage Current (Ir)
- 5uA@75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
Key features
- Fast Switching Diode (Trr <4.0 nsec)
- Flat Lead, Surface Mount Device Under 0.70mm Height
- Extremely Small Outline Plastic Package SOD523F
- Moisture Level Sensitivity 1
- Pb-free Version and RoHS Compliant
- Matte Tin (Sn) Lead Finish
- Green Mold Compound
