SAEDatasheet (PDF)
1RC0603F2672

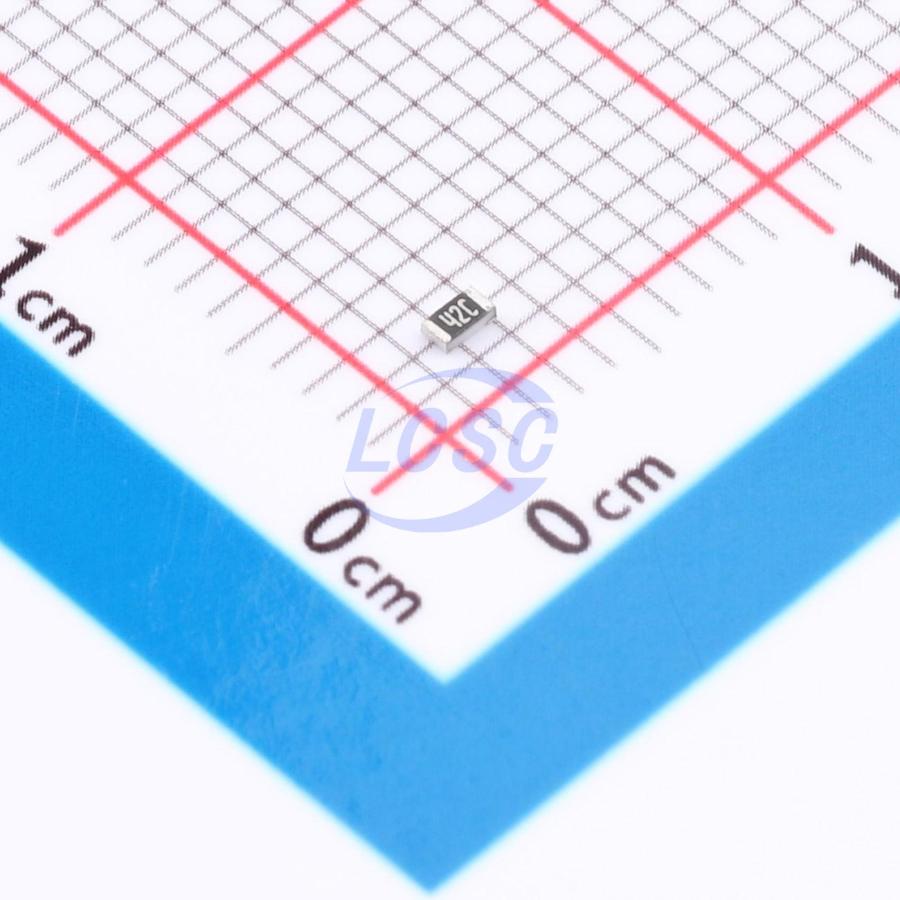

100mW 26.7kΩ 75V Thick Film Resistor ±100ppm/℃ ±1% 0603 Chip Resistor - Surface Mount
0603RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC0603F2672
- Store part #
- C54531335
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,500 in stock
#C54531335
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.2778 | ₹27.78 |
| 1,000+ | ₹0.2117 | ₹211.70 |
| 5,000+ | ₹0.1852 | ₹926.00 |
| 10,000+ | ₹0.1588 | ₹1,588.00 |
| 50,000+ | ₹0.1455 | ₹7,275.00 |
100 × ₹0.2778
₹27.78
excl. GST
₹32.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC0603F2672
₹27.78 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 26.7kΩ
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.023 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC0603FR-0726K7L#C137756YAGEO · 0603 | YAGEO | 0603 | 6,800 | ₹0.5689 · 6,800 in stock | View |
 | 0603WAF2672T5E#C22923UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 18,400 | ₹0.3175 · 18,400 in stock | View |
 | FRC0603F2672TS#C2930082FOJAN · 0603 | FOJAN | 0603 | 59,300 | ₹0.344 · 59,300 in stock | View |
 | GR0603F26K7T5G00#C49656699GiantOhm · 0603 | GiantOhm | 0603 | 1,200 | ₹0.1985 · 1,200 in stock | View |
 | RS-03K2672FT#C321822FH · 0603 | FH | 0603 | 4,000 | ₹0.2514 · 4,000 in stock | View |
