SAEDatasheet (PDF)

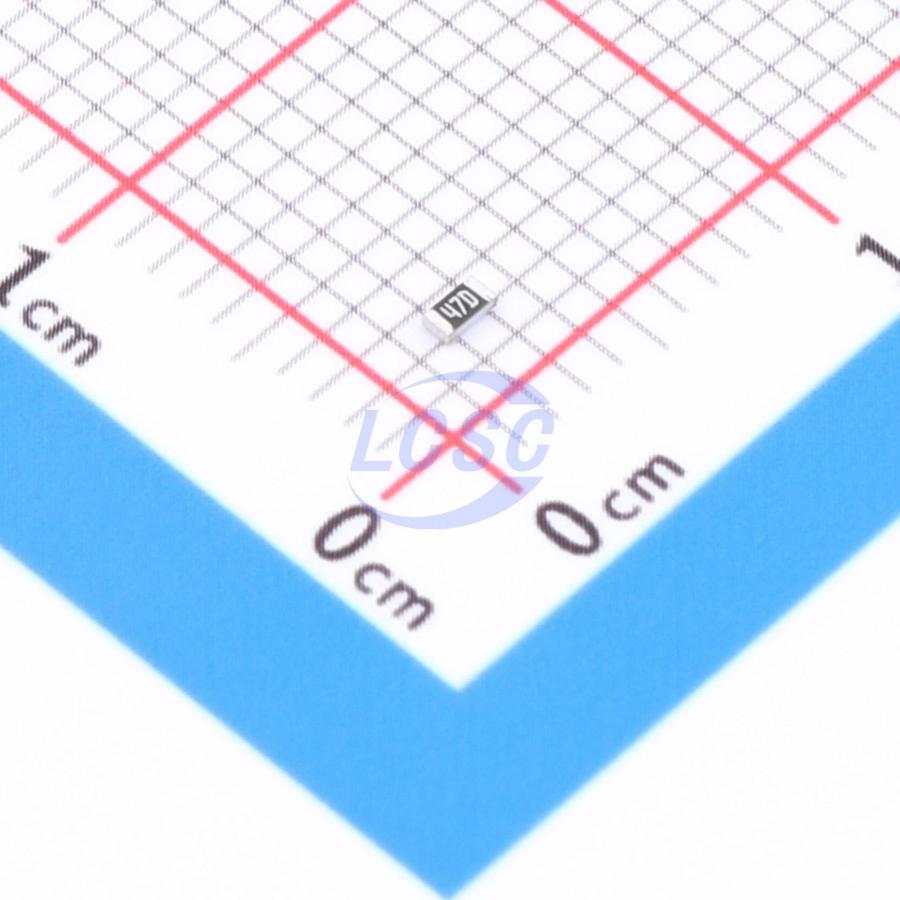

1RC0603F3013
100mW 301kΩ 75V Thick Film Resistor ±100ppm/℃ ±1% 0603 Chip Resistor - Surface Mount
0603RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC0603F3013
- Store part #
- C54531366
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,100 in stock
#C54531366
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.2646 | ₹26.46 |
| 1,000+ | ₹0.1985 | ₹198.50 |
| 5,000+ | ₹0.172 | ₹860.00 |
| 10,000+ | ₹0.1588 | ₹1,588.00 |
| 50,000+ | ₹0.1323 | ₹6,615.00 |
100 × ₹0.2646
₹26.46
excl. GST
₹31.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC0603F3013
₹26.46 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 301kΩ
- Voltage Rating
- 75V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.023 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT033013FTP#C103522RALEC · 0603 | RALEC | 0603 | 100 | ₹0.1455 · 100 in stock | View |
 | AC0603FR-07301KL#C227805YAGEO · 0603 | YAGEO | 0603 | 4,800 | ₹1.02 · 4,800 in stock | View |
 | 0603WAF3013T5E#C23026UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 34,400 | ₹0.2911 · 34,400 in stock | View |
 | RMCF0603FT301K#C2479485SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | 3,300 | ₹0.5292 · 3,300 in stock | View |
 | FRC0603F3013TS#C2933194FOJAN · 0603 | FOJAN | 0603 | 74,000 | ₹0.2117 · 74,000 in stock | View |
