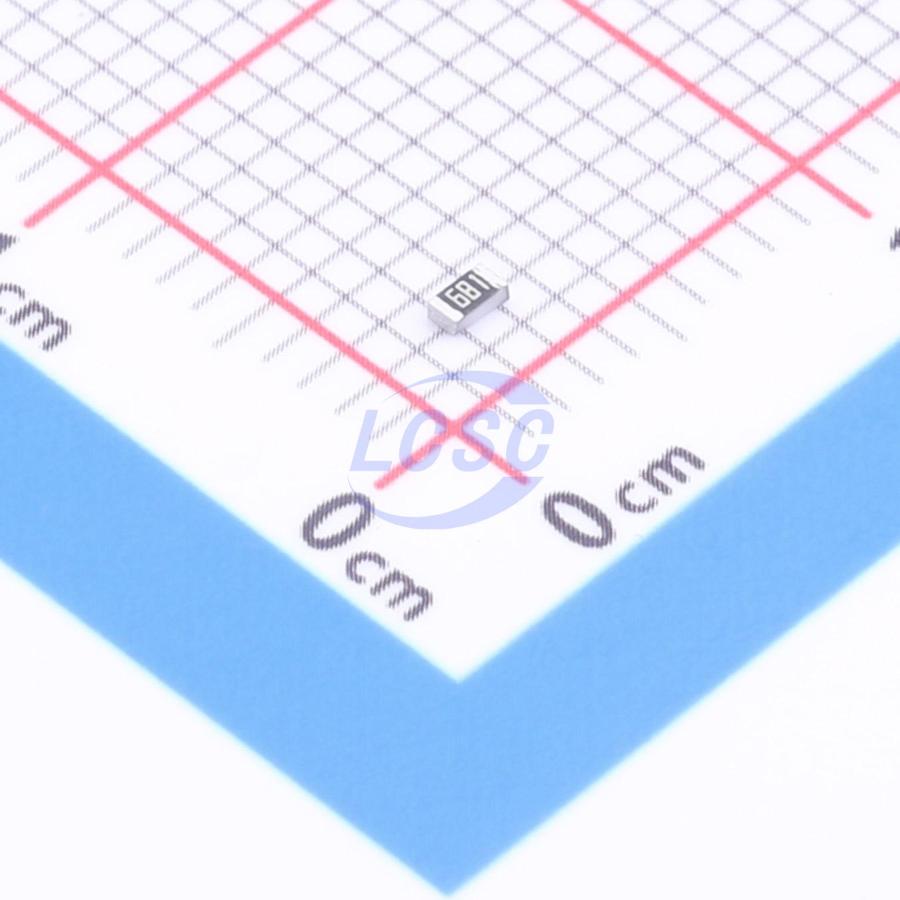

1RC0603J0681 SAE

1RC0603J0681

680Ω 100mW 75V Thick Film Resistor ±100ppm/℃ ±5% 0603 Chip Resistor - Surface Mount

0603RoHSActive

Manufacturer: SAE
Manufacturer part #: 1RC0603J0681
Store part #: C54531770
Package / case: 0603
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,400 in stock

#C54531770

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
100+	₹0.2249	₹22.49
1,000+	₹0.172	₹172.00
5,000+	₹0.1455	₹727.50
10,000+	₹0.1323	₹1,323.00
50,000+	₹0.1191	₹5,955.00

Quantity (min 100, multiples of 100)

100 × ₹0.2249

₹22.49

excl. GST

₹26.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

1RC0603J0681

₹22.49 for 100 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Resistance: 680Ω
Power(Watts): 100mW
Voltage Rating: 75V
Type: Thick Film Resistor
Temperature Coefficient: ±100ppm/℃
Tolerance: ±5%
Operating Temperature: -55℃~+155℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 100 (multiples of 100)
Unit weight: 0.023 g

Overview

Key features

Compact size, lightweight
Reduced assembly cost, compatible with pick-and-place machines
Suitable for wave soldering and reflow soldering
