SAEDatasheet (PDF)

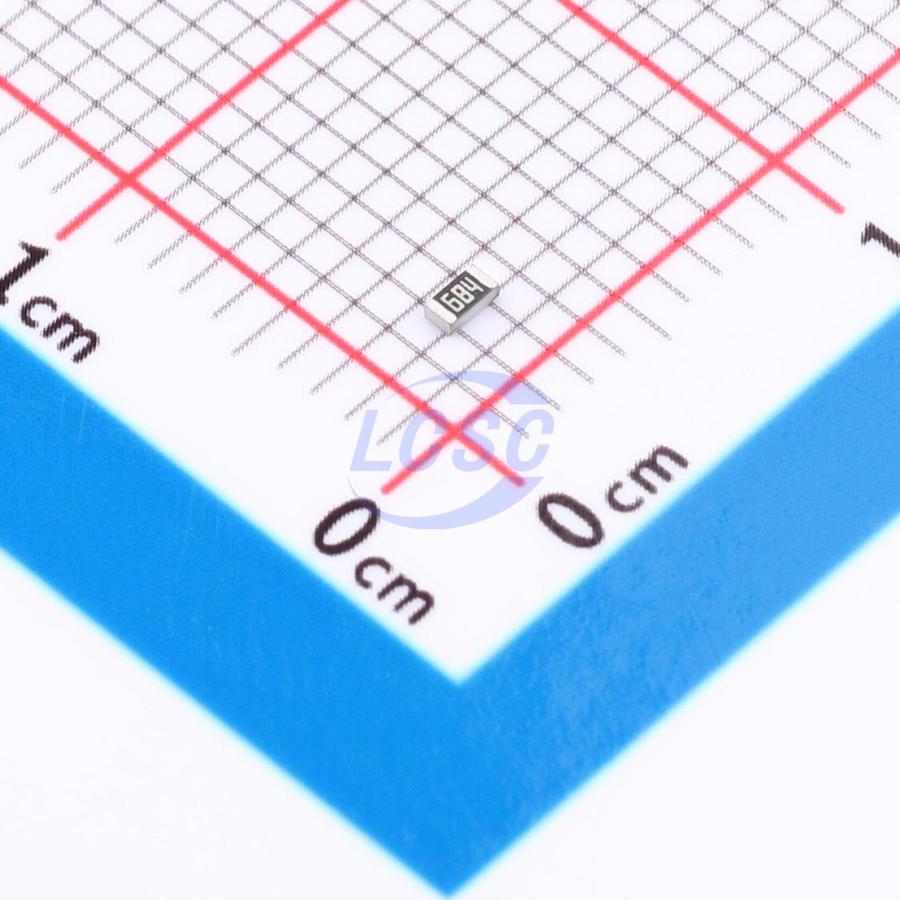

1RC0603J0684
100mW 680kΩ 75V Thick Film Resistor ±100ppm/℃ ±5% 0603 Chip Resistor - Surface Mount
0603RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC0603J0684
- Store part #
- C54531773
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C54531773
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.2381 | ₹23.81 |
| 1,000+ | ₹0.1852 | ₹185.20 |
| 5,000+ | ₹0.1588 | ₹794.00 |
| 10,000+ | ₹0.1455 | ₹1,455.00 |
| 50,000+ | ₹0.1323 | ₹6,615.00 |
100 × ₹0.2381
₹23.81
excl. GST
₹28.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC0603J0684
₹23.81 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 680kΩ
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.023 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT03684JTP#C103787RALEC · 0603 | RALEC | 0603 | 2,200 | ₹0.2646 · 2,200 in stock | View |
 | WR06X684JTL#C168404Walsin · 0603 | Walsin | 0603 | 4,900 | ₹0.3308 · 4,900 in stock | View |
 | AC0603JR-07680KL#C228220YAGEO · 0603 | YAGEO | 0603 | 4,100 | ₹0.5953 · 4,100 in stock | View |
 | 0603WAJ0684T5E#C25606UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 5,900 | ₹0.2911 · 5,900 in stock | View |
 | FRC0603J684 TS#C2907194FOJAN · 0603 | FOJAN | 0603 | 99,900 | ₹0.3043 · 99,900 in stock | View |
