SAEDatasheet (PDF)
1RC0805J0339

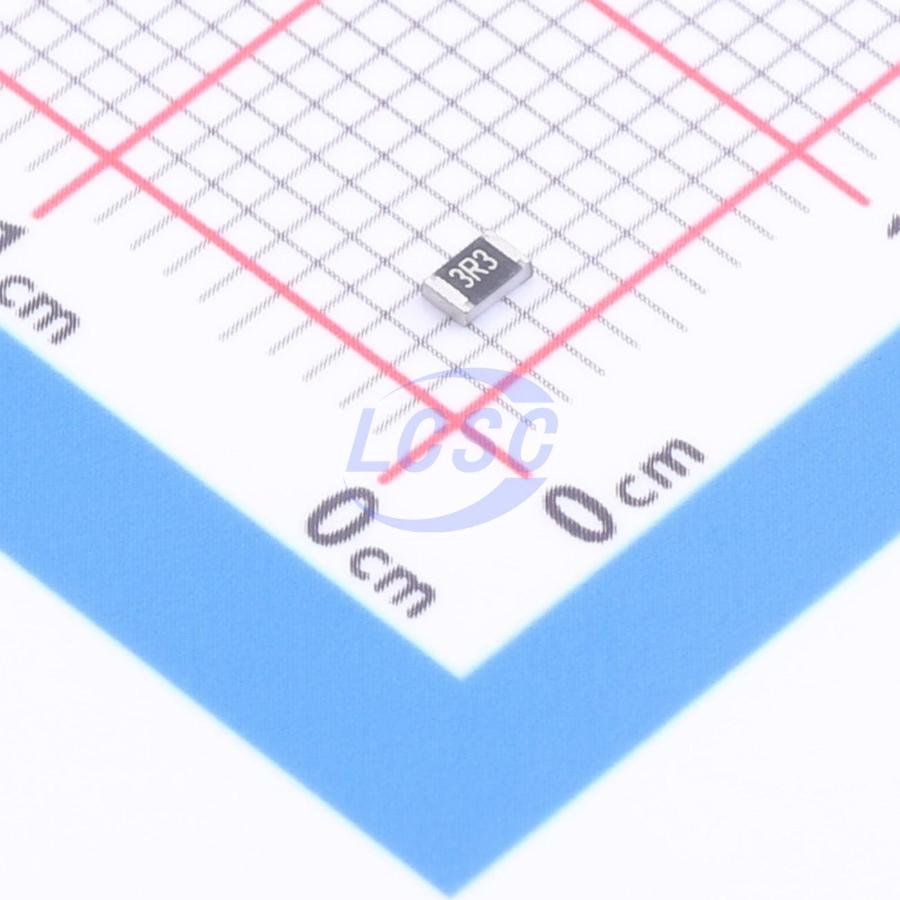

125mW 3.3Ω 150V Thick Film Resistor ±5% ±400ppm/℃ 0805 Chip Resistor - Surface Mount
0805RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC0805J0339
- Store part #
- C54532419
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,900 in stock
#C54532419
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.5953 | ₹59.53 |
| 1,000+ | ₹0.4763 | ₹476.30 |
| 5,000+ | ₹0.4101 | ₹2,050.50 |
| 10,000+ | ₹0.3704 | ₹3,704.00 |
| 50,000+ | ₹0.3308 | ₹16,540.00 |
| 1,00,000+ | ₹0.3175 | ₹31,750.00 |
100 × ₹0.5953
₹59.53
excl. GST
₹70.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC0805J0339
₹59.53 for 100 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 3.3Ω
- Voltage Rating
- 150V
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±400ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.028 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 0805W8J033JT5E#C24787UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 11,800 | ₹0.6615 · 11,800 in stock | View |
 | 0805 ±5% 3Ω3#C2889628VO · 0805 | VO | 0805 | 200 | ₹0.4101 · 200 in stock | View |
 | FRC0805J3R3 TS#C2907317FOJAN · 0805 | FOJAN | 0805 | 18,10,100 | ₹0.5292 · 18,10,100 in stock | View |
 | MCR10EZPJ3R3#C308453ROHM · 0805 | ROHM | 0805 | 1,000 | ₹0.8732 · 1,000 in stock | View |
 | HRC0805J3R3 FNTN#C54921333HWA CHN · 0805 | HWA CHN | 0805 | 4,600 | ₹0.2778 · 4,600 in stock | View |
