SAEDatasheet (PDF)

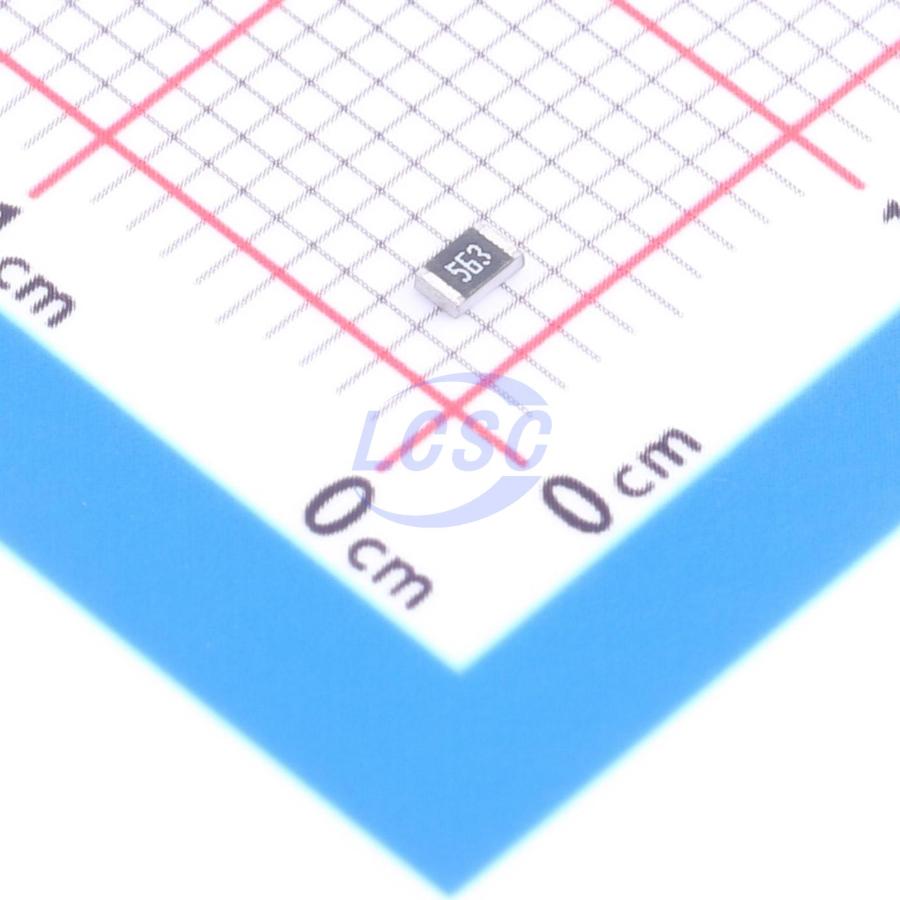

1RC0805J0563
125mW 56kΩ 150V Thick Film Resistor ±100ppm/℃ ±5% 0805 Chip Resistor - Surface Mount
0805RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC0805J0563
- Store part #
- C54531904
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,700 in stock
#C54531904
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.2117 | ₹21.17 |
| 1,000+ | ₹0.1985 | ₹198.50 |
100 × ₹0.2117
₹21.17
excl. GST
₹24.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC0805J0563
₹21.17 for 100 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 56kΩ
- Voltage Rating
- 150V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.028 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT05563JTP#C104415RALEC · 0805 | RALEC | 0805 | 4,700 | ₹0.2514 · 4,700 in stock | View |
 | RC0805JR-0756KL#C137420YAGEO · 0805 | YAGEO | 0805 | 20,200 | ₹0.7409 · 20,200 in stock | View |
 | WR08X563JTL#C168507Walsin · 0805 | Walsin | 0805 | 7,100 | ₹0.5821 · 7,100 in stock | View |
 | 0805W8J0563T5E#C25638UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | On request | Price on request | Quote |
 | RS-05K563JT#C286609FH · 0805 | FH | 0805 | 3,600 | ₹0.2514 · 3,600 in stock | View |
