SAEDatasheet (PDF)
1RC0805J0681

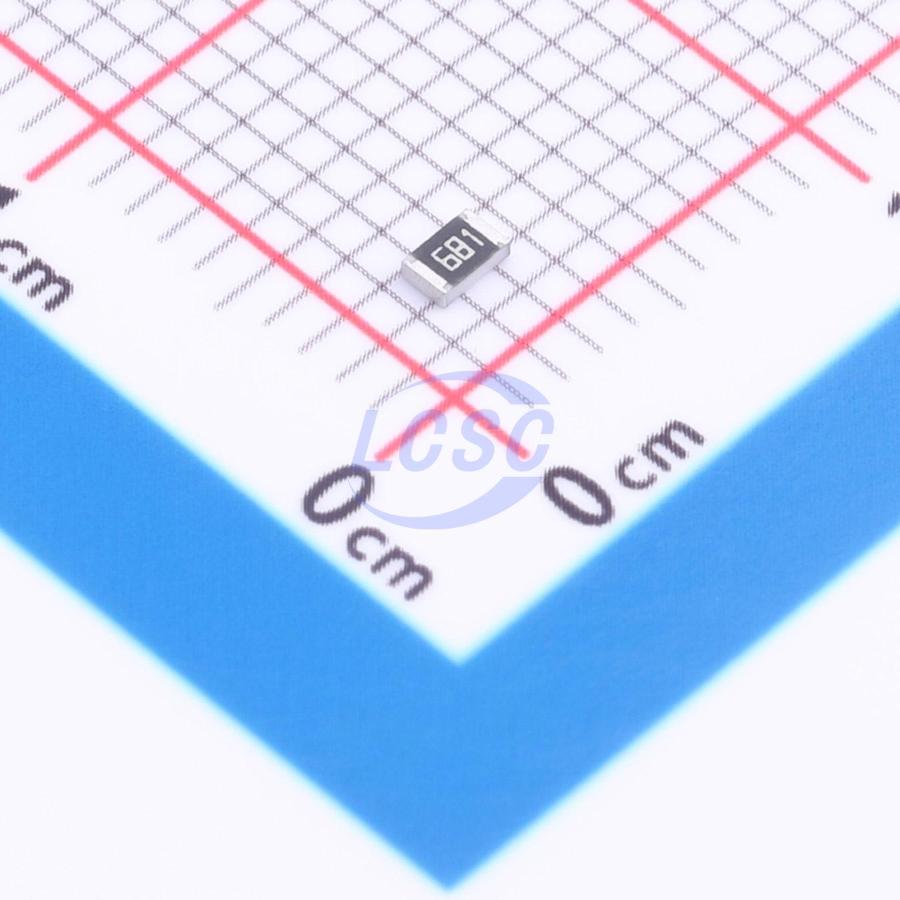

680Ω 125mW 150V Thick Film Resistor ±100ppm/℃ ±5% 0805 Chip Resistor - Surface Mount
0805RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC0805J0681
- Store part #
- C54531914
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C54531914
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.2117 | ₹21.17 |
| 1,000+ | ₹0.1985 | ₹198.50 |
100 × ₹0.2117
₹21.17
excl. GST
₹24.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC0805J0681
₹21.17 for 100 + GST
Specifications
- Resistance
- 680Ω
- Power(Watts)
- 125mW
- Voltage Rating
- 150V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.028 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS-05K681JT#C139848FH · 0805 | FH | 0805 | 2,56,900 | ₹0.4234 · 2,56,900 in stock | View |
 | WR08X681JTL#C168511Walsin · 0805 | Walsin | 0805 | 1,300 | ₹0.6483 · 1,300 in stock | View |
 | 0805W8J0681T5E#C25324UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 61,800 | ₹0.4101 · 61,800 in stock | View |
 | NS05W8J0681T5E#C2783218UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 1,640 | ₹1.20 · 1,640 in stock | View |
 | FRC0805J681 TS#C2907340FOJAN · 0805 | FOJAN | 0805 | 10,59,100 | ₹0.4895 · 10,59,100 in stock | View |
