SAEDatasheet (PDF)
1RC1206J0164

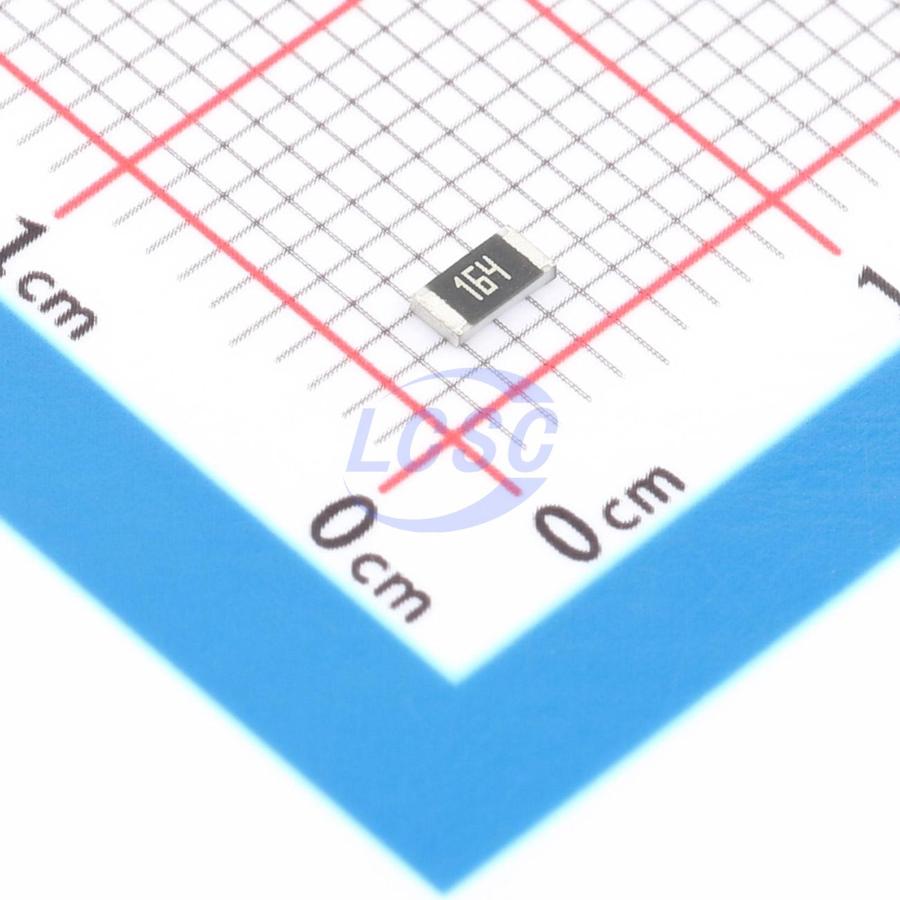

250mW 160kΩ 200V Thick Film Resistor ±100ppm/℃ ±5% 1206 Chip Resistor - Surface Mount
1206RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC1206J0164
- Store part #
- C54532547
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,700 in stock
#C54532547
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.6747 | ₹67.47 |
| 1,000+ | ₹0.5424 | ₹542.40 |
| 5,000+ | ₹0.4763 | ₹2,381.50 |
| 10,000+ | ₹0.4234 | ₹4,234.00 |
| 50,000+ | ₹0.3837 | ₹19,185.00 |
| 1,00,000+ | ₹0.3704 | ₹37,040.00 |
100 × ₹0.6747
₹67.47
excl. GST
₹79.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC1206J0164
₹67.47 for 100 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 160kΩ
- Voltage Rating
- 200V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.03 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AC1206JR-07160KL#C229883YAGEO · 1206 | YAGEO | 1206 | 100 | ₹1.01 · 100 in stock | View |
 | HP06W2J0164T5E#C2759079UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 4,450 | ₹0.7012 · 4,450 in stock | View |
 | FRC1206J164 TS#C2933783FOJAN · 1206 | FOJAN | 1206 | 6,100 | ₹0.7144 · 6,100 in stock | View |
 | 1206W4J0164T5E#C407238UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 4,300 | ₹0.6086 · 4,300 in stock | View |
 | GR1206J160KT5G00#C49654242GiantOhm · 1206 | GiantOhm | 1206 | 4,900 | ₹0.4763 · 4,900 in stock | View |
