SAEDatasheet (PDF)
1RC1206J0561

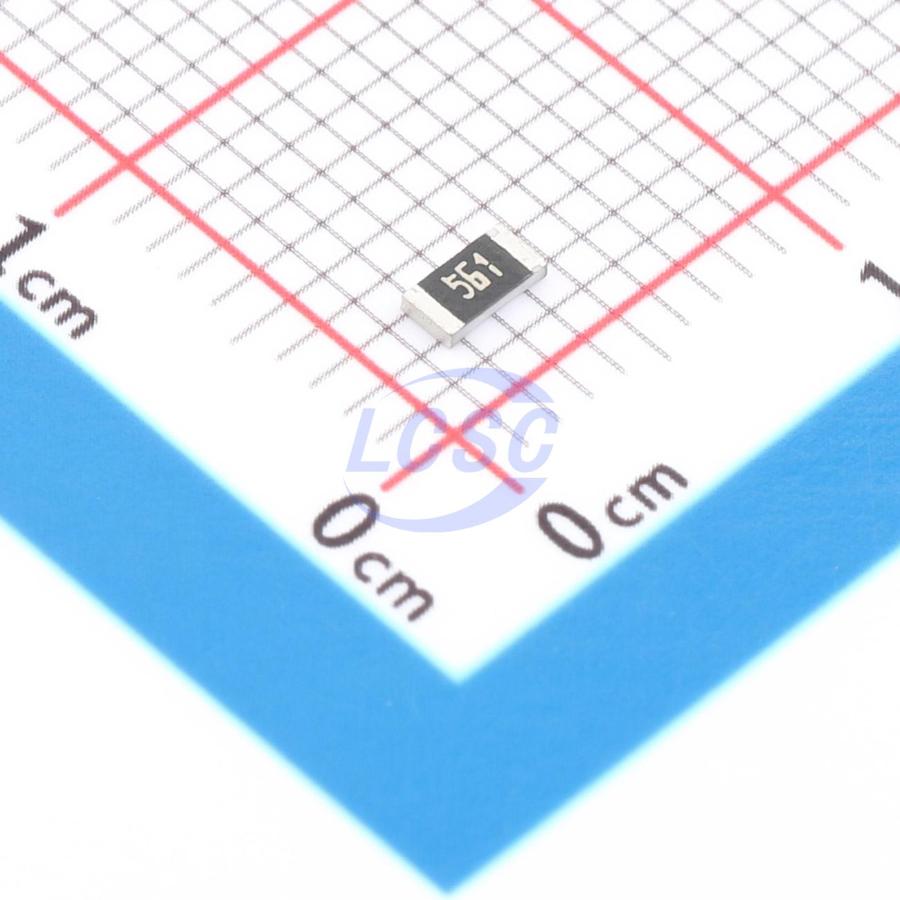

250mW 560Ω 200V Thick Film Resistor ±100ppm/℃ ±5% 1206 Chip Resistor - Surface Mount
1206RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC1206J0561
- Store part #
- C54532619
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,000 in stock
#C54532619
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.6615 | ₹66.15 |
| 1,000+ | ₹0.5292 | ₹529.20 |
| 5,000+ | ₹0.4498 | ₹2,249.00 |
| 10,000+ | ₹0.3969 | ₹3,969.00 |
| 50,000+ | ₹0.3572 | ₹17,860.00 |
| 1,00,000+ | ₹0.344 | ₹34,400.00 |
100 × ₹0.6615
₹66.15
excl. GST
₹78.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC1206J0561
₹66.15 for 100 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 560Ω
- Voltage Rating
- 200V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.03 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC1206JR-07560RL#C163358YAGEO · 1206 | YAGEO | 1206 | 39,100 | ₹1.46 · 39,100 in stock | View |
 | WR12X561JTL#C171185Walsin · 1206 | Walsin | 1206 | 850 | ₹1.07 · 850 in stock | View |
 | 1206W4J0561T5E#C25388UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 97,700 | ₹0.8203 · 97,700 in stock | View |
 | RMC12065605%N#C269658TyoHM · 1206 | TyoHM | 1206 | 400 | ₹1.01 · 400 in stock | View |
 | HP06W2J0561T5E#C2775098UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 9,200 | ₹0.3704 · 9,200 in stock | View |
