SAEDatasheet (PDF)

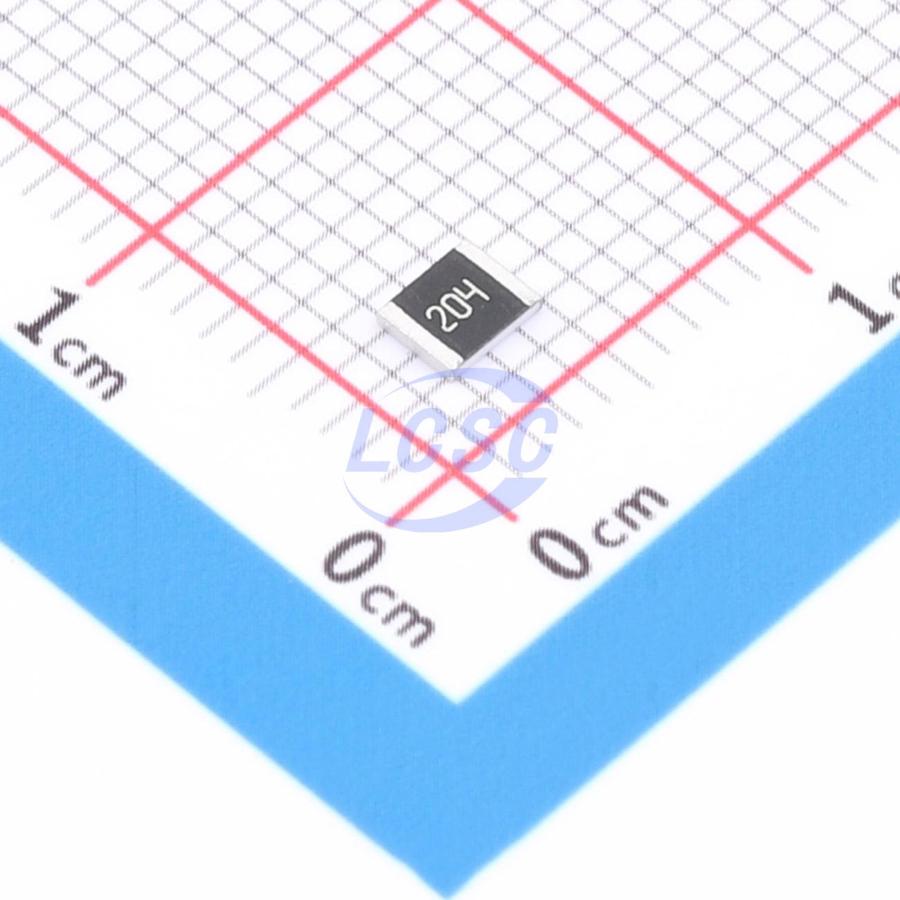

1RC1210J0204
500mW 200kΩ 200V Thick Film Resistor ±100ppm/℃ ±5% 1210 Chip Resistor - Surface Mount
1210RoHSActive
- Manufacturer
- SAE
- Manufacturer part #
- 1RC1210J0204
- Store part #
- C54533134
- Package / case
- 1210
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,700 in stock
#C54533134
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.09 | ₹54.50 |
| 500+ | ₹0.858 | ₹429.00 |
| 1,500+ | ₹0.737 | ₹1,105.50 |
| 5,000+ | ₹0.660 | ₹3,300.00 |
| 25,000+ | ₹0.594 | ₹14,850.00 |
| 50,000+ | ₹0.561 | ₹28,050.00 |
50 × ₹1.09
₹54.50
excl. GST
₹64.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1RC1210J0204
₹54.50 for 50 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 200kΩ
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 1 g
Overview
Key features
- Compact size, lightweight
- Reduced assembly cost, compatible with pick-and-place machines
- Suitable for wave soldering and reflow soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT12204JTP#C104984RALEC · 1210 | RALEC | 1210 | 200 | ₹1.13 · 200 in stock | View |
 | FRC1210J204 TS#C2933845FOJAN · 1210 | FOJAN | 1210 | 22,700 | ₹0.880 · 22,700 in stock | View |
 | 1210W2J0204T5E#C474158UNI-ROYAL · 1210 | UNI-ROYAL | 1210 | 34,700 | ₹0.946 · 34,700 in stock | View |
 | FRR1210J204 TS#C49196860FOJAN · 1210 | FOJAN | 1210 | 4,000 | ₹2.51 · 4,000 in stock | View |
 | GR1210J200KT5G00#C49654367GiantOhm · 1210 | GiantOhm | 1210 | 3,600 | ₹0.737 · 3,600 in stock | View |
