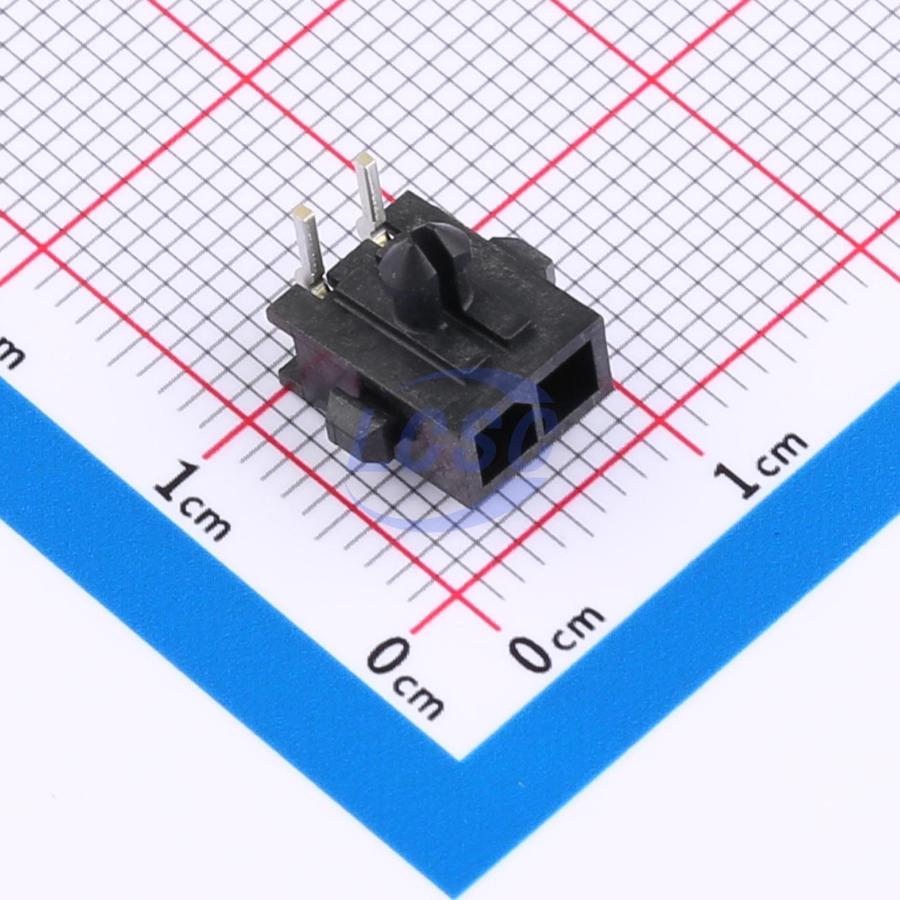

TE Connectivity

2-1445055-2

Connector Header 3mm Pitch Right Angle -40℃~+105℃

Through Hole,Right Angle,P=3mmROHS CompliantActive

CONN HEADER TH R/A 3mm

Manufacturer: TE Connectivity
Manufacturer part #: 2-1445055-2
Store part #: C591584
Package / case: Through Hole,Right Angle,P=3mm
Category: Headers, Male Pins
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11 in stock

#C591584

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹232.07	₹232.07
10+	₹194.67	₹1,946.70
30+	₹174.27	₹5,228.10
100+	₹150.89	₹15,089.00
350+	₹140.69	₹49,241.50
1,050+	₹136.02	₹1,42,821.00

Quantity (min 1)

1 × ₹232.07

₹232.07

excl. GST

₹273.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 350 per tray

2-1445055-2

₹232.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Pitch: 3mm
Connector Type: Right Angle
Flame Retardant Rating: UL94V-0
Current Rating: 5A
Voltage Rating (Max): 250V
Number of PINs: 2P
Contact Plating: Tin
Operating Temperature: -40℃~+105℃
Contact Material: Brass
Color: Black
Number of PINs Per Row: 2
Pin Structure: 1x2P
Number of Rows: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 350 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.5 g

Overview

Square Power Connector Type: Plug & Socket Connector and Housing Type: Plug Connector System: Wire-to-Board Number of Positions: 2 Centerline Spacing (Pitch): 3mm [0.118 in]

Key features

Product Type Characteristics
Configuration Characteristics
Electrical Characteristics
Contact Characteristics
Termination Characteristics
Mechanical Connection Characteristics
Housing Characteristics
Dimensional Characteristics
Operating Conditions
Product Compliance: TE part numbers identified as compliant with EU RoHS have a maximum concentration by weight of 0.1% for lead, hexavalent chromium, mercury, polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP), bis(2-ethylhexyl) phthalate (DEHP), and diisobutyl phthalate (DIBP) in homogeneous materials, and a maximum concentration by weight of 0.01% for cadmium, or comply with exemption conditions specified in the Annex of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU; components may not be CE marked. In addition, TE part numbers identified as compliant with EU ELV have a maximum concentration by weight of 0.1% for lead, hexavalent chromium, and mercury in homogeneous materials, and a maximum concentration by weight of 0.01% for cadmium, or comply with exemption conditions specified in the Annex of Directive 2000/53/EC (ELV). Regarding REACH regulations, information on Substances of Very High Concern (SVHC) in articles for this TE part number is based on the latest "Guidance on requirements for substances in articles" published by the European Chemicals Agency (ECHA) at: https://echa.europa.eu/guidance-documents/guidance-on-reach

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	C3030WR-2P#C239446CJT(Changjiang Connectors) · Through Hole,Right Angle,P=3mm	CJT(Changjiang Connectors)	Through Hole,Right Angle,P=3mm	On request	₹53.29 · 0 in stock	View
