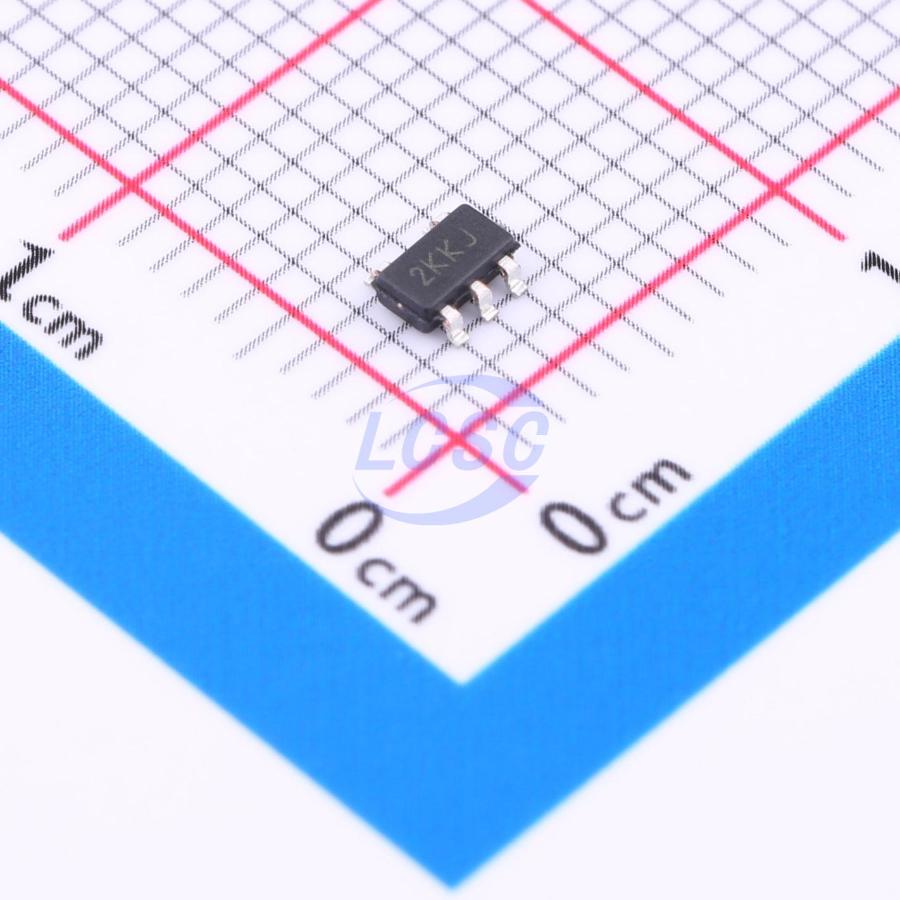

24AA02E48T-I/OT
2Kbit 400kHz I2C SOT-23-5 Memory RoHS
2K 12C Serial EEPROMs with EUI-48 or EUI-64 Node Identity
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,454 in stock
#C38987
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.12 | ₹66.12 |
| 10+ | ₹53.29 | ₹532.90 |
| 30+ | ₹46.79 | ₹1,403.70 |
| 100+ | ₹40.47 | ₹4,047.00 |
| 500+ | ₹39.20 | ₹19,600.00 |
| 1,000+ | ₹37.22 | ₹37,220.00 |
1 × ₹66.12
₹66.12
excl. GST
₹78.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24AA02E48T-I/OT
₹66.12 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The 24AA02E48/ 24AA025E48/24AA02E64/24AA025E64 (24AA02XEXX*) is a 2 Kbit Electrically Erasable PROM. The device is organized as two blocks of 128x8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with maximum standby currents of only 1 μA for I-Temp and 5 μA for E-Temp, as well as a maximum active current of 1 mA. The 24AA02XEXX also has a page write capability for up to eight bytes of data (16 bytes on the 24AA025E48/ 24AA025E64). The 24AA02XEXX is available in the standard 8-pin SOIC, 5-lead SOT-23, and 6-lead SOT-23 packages.
Key features
- Pre-programmed Globally Unique, 48-bit or 64-bit Node Address
- Compatible with EUI-48 and EUI-64
- Single Supply with Operation Down to 1.7V
- Low-Power CMOS Technology:
- Read current 1 mA, max.
- Standby current: 1 μA, max (I-temp) 5 μA, max (E-temp)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz and 400 kHz Clock Compatibility
- Page Write Time 3 ms, typical
- Self-Timed Erase/Write Cycle
- Page Write Buffer:
- 8-byte page (24AA02E48/24AA02E64)
- 16-byte page (24AA025E48/24AA025E64)
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- Available Packages:
- 8-lead SOIC and 5-lead SOT-23 (24AA02E48/24AA02E64)
- 8-lead SOIC and 6-lead SOT-23 (24AA025E48/24AA025E64)
- RoHS Compliant
- Available for Extended Temperature Ranges:
- Industrial (I): - 40℃ to +85℃
- Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA02UIDT-I/OT#C511274MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 852 | ₹66.07 · 852 in stock | View |
| 24AA02HT-I/OT#C2062114MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 80 | ₹40.13 · 80 in stock | View | |
 | 24AA02T-I/OT#C478090MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 3,840 | ₹28.02 · 3,840 in stock | View |
 | 24AA02E64T-I/OT#C616198MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 184 | ₹118.26 · 184 in stock | View |
 | CAT24C02TDI-GT3A#C81340onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 5 | ₹33.40 · 5 in stock | View |
