MICROCHIP

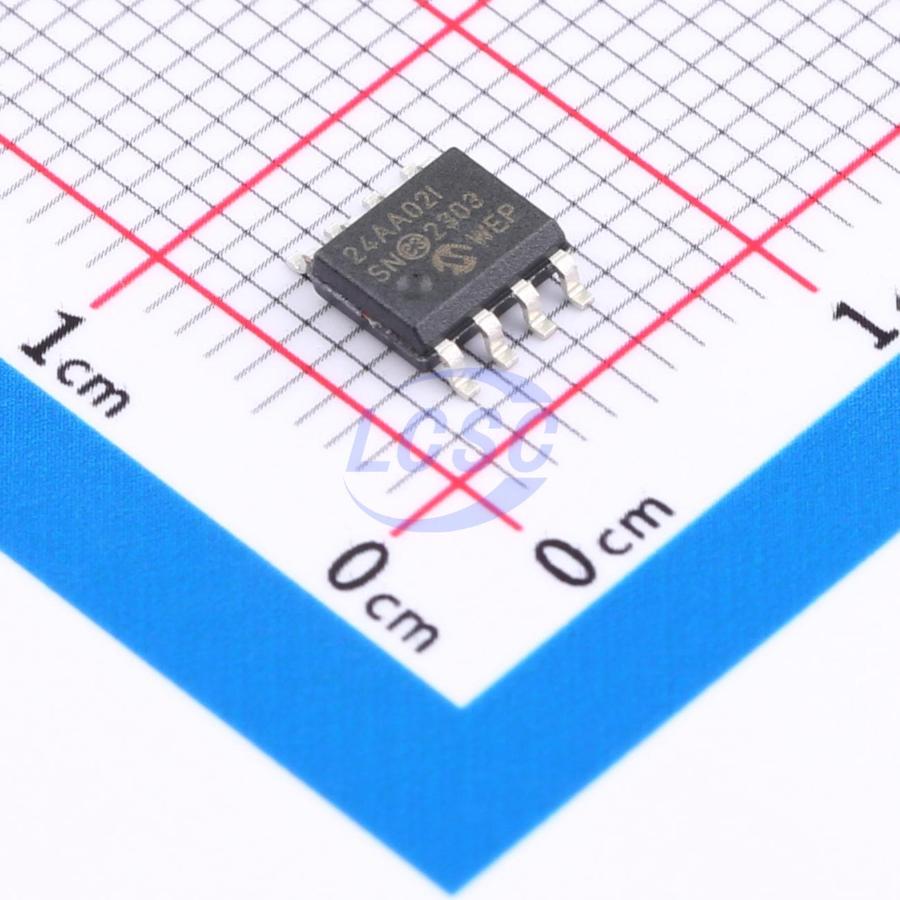

24AA02T-I/SN
2Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
2K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,284 in stock
#C615609
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.86 | ₹85.86 |
| 10+ | ₹68.95 | ₹689.50 |
| 30+ | ₹60.50 | ₹1,815.00 |
| 100+ | ₹52.26 | ₹5,226.00 |
| 500+ | ₹47.27 | ₹23,635.00 |
| 1,000+ | ₹44.66 | ₹44,660.00 |
1 × ₹85.86
₹85.86
excl. GST
₹101.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24AA02T-I/SN
₹85.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 3500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.212 g
Overview
The 24xxx02 is a 2-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices
- Low-Power CMOS Technology: Read current 1 mA, maximum; Standby current 1 μA, maximum (l-temp.)
- Two-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 8-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000 V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: Industrial (l): -40°C to +85°C; Extended (E): -40°C to +125°C
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA02UID-I/SN#C1349294MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 84 | ₹121.24 · 84 in stock | View |
 | 24AA025UIDT-I/SN#C615603MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 76 | ₹152.89 · 76 in stock | View |
 | 24AA02/SN#C1350480MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 80 | ₹99.53 · 80 in stock | View |
 | 24AA024-I/SN#C615105MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1,080 | ₹137.55 · 1,080 in stock | View |
 | 24AA025-I/SN#C615109MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 94 | ₹110.96 · 94 in stock | View |
