MICROCHIP

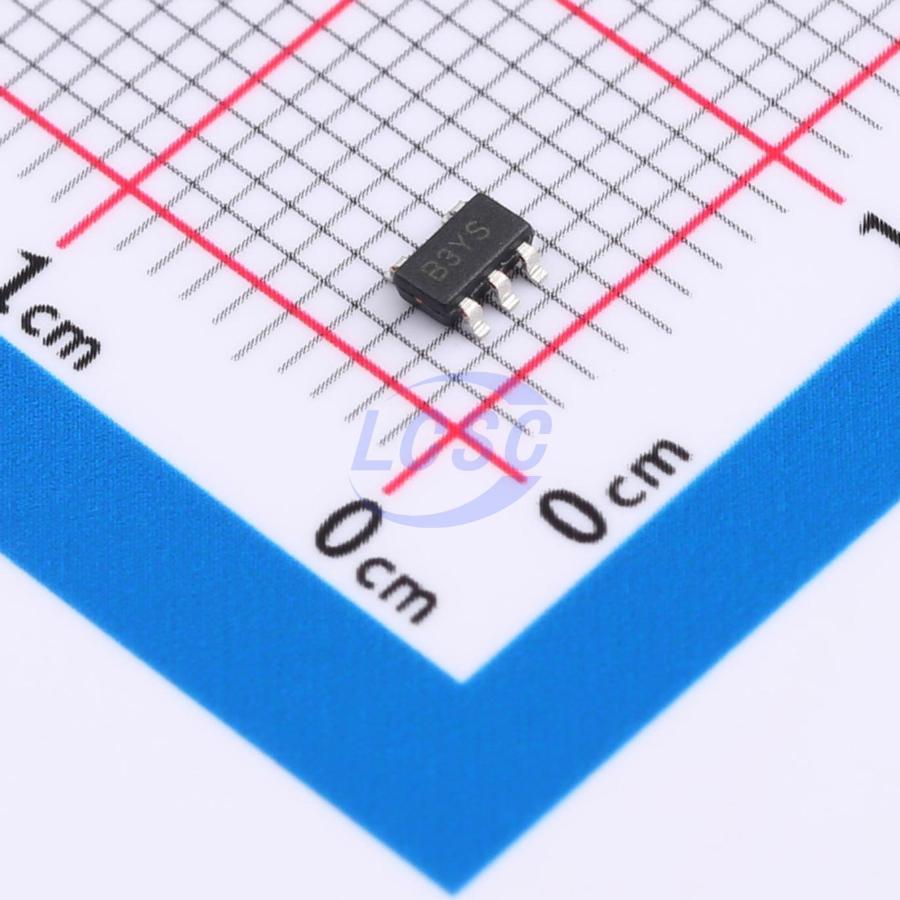

24AA04T-I/OT
4Kbit 400kHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
4K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,725 in stock
#C2062002
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.26 | ₹66.26 |
| 10+ | ₹52.79 | ₹527.90 |
| 30+ | ₹46.91 | ₹1,407.30 |
| 100+ | ₹39.76 | ₹3,976.00 |
| 500+ | ₹36.71 | ₹18,355.00 |
| 1,000+ | ₹34.76 | ₹34,760.00 |
1 × ₹66.26
₹66.26
excl. GST
₹78.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24AA04T-I/OT
₹66.26 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns;3500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.083 g
Overview
The 24XX04 is a 4-Kbit Electrically Erasable PROM (EEPROM). The device is organized as two blocks of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX04 also has a page write capability for up to 16 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA04 and 24FC04 Devices, 2.5V for 24LC04B Devices
- Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 μA: maximum (l-temp.)
- Two-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000 V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: - Industrial (l): -40℃ to +85℃ - Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA04HT-I/OT#C616200MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 104 | ₹112.67 · 104 in stock | View |
 | CAT24C04TDI-GT3#C5207909onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 280 | ₹45.46 · 280 in stock | View |
 | 24AA04T-I/OT-TUDI#C41411012Tudi · SOT-23-5 | Tudi | SOT-23-5 | 2,920 | ₹31.63 · 2,920 in stock | View |
 | 24LC04BT-I/OT-TUDI#C41411019Tudi · SOT-23-5 | Tudi | SOT-23-5 | 2,685 | ₹16.63 · 2,685 in stock | View |
