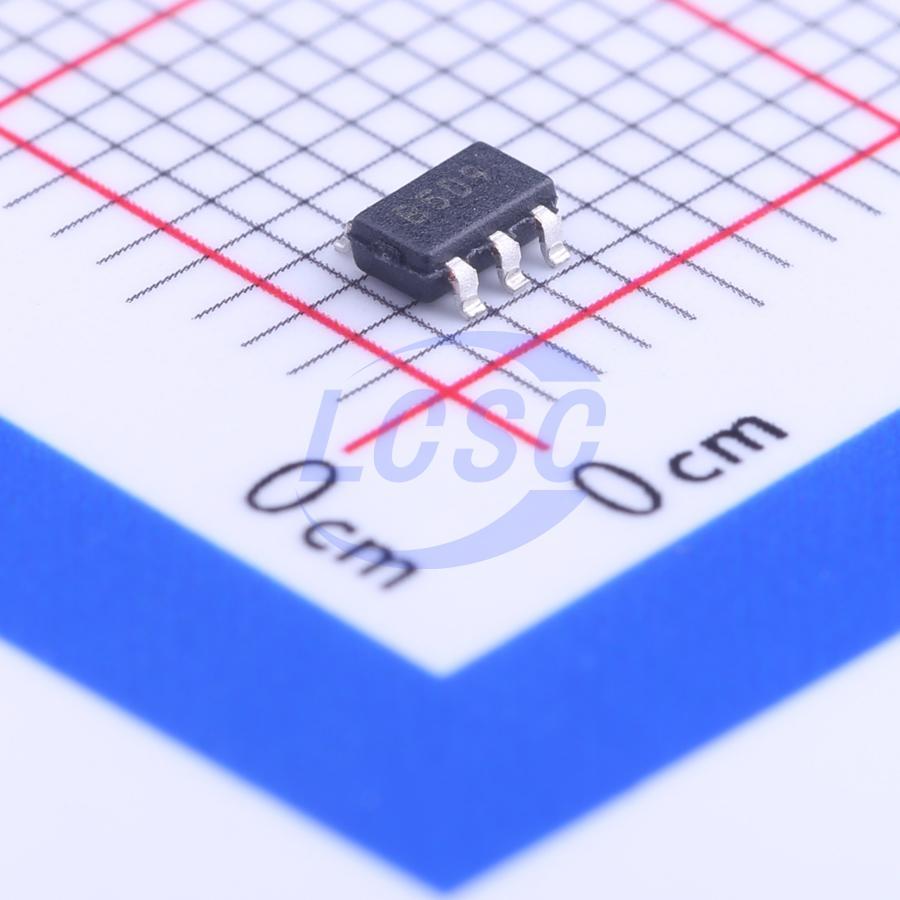

24AA16T-I/OT
16Kbit 400kHz I2C SOT-23-5 Memory RoHS
16Kbit Electrically Erasable PROM with 2-Wire Serial Interface
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,647 in stock
#C122879
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.23 | ₹81.23 |
| 10+ | ₹63.86 | ₹638.60 |
| 30+ | ₹56.25 | ₹1,687.50 |
| 100+ | ₹47.14 | ₹4,714.00 |
| 500+ | ₹42.80 | ₹21,400.00 |
| 1,000+ | ₹40.40 | ₹40,400.00 |
1 × ₹81.23
₹81.23
excl. GST
₹95.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24AA16T-I/OT
₹81.23 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 3500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The 24AA16/24LC16B (24XX16*) is a 16 Kbit Electrically Erasable PROM. The device is organized as eight blocks of 256x8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX16 also has a page write capability for up to 16 bytes of data. The 24XX16 is available in the standard 8-pin PDiP, surface mount SOIC, TSSOP, 2x3 DFN, 2x3 TDFN and MSOP packages, and is also available in the 5-lead SOT-23, and Chip Scale packages.
Key features
- Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
- Low-Power CMOS Technology: - Active current 1 mA, typical - Standby current, 1 μA, typical
- 2-Wire Serial Interface, I²C™ Compatible
- Schmitt Trigger inputs for Noise Suppression
- Output Slope Control to eliminate Ground Bounce 100 kHz and 400 kHz Clock Compatibility
- Page Write Time 5 ms Max.
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- Packages include 8-lead PDIP, SOIC, TSSOP, MSOP, DFN, TDFN, 5-lead SOT-23 and Chip Scale
- Pb-Free and RoHS Compliant
- Temperature Ranges: - Industrial (I): -40℃ to +85℃ - Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA16HT-I/OT#C2061344MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 8 | ₹70.62 · 8 in stock | View |
| 24AA16T-E/OT#C616204MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 9 | ₹105.27 · 9 in stock | View | |
 | CAT24C16TDI-GT3#C605329onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 31 | ₹67.79 · 31 in stock | View |
 | 24AA16T-I/OT-TUDI#C41411014Tudi · SOT-23-5 | Tudi | SOT-23-5 | 1,855 | ₹35.72 · 1,855 in stock | View |
 | 24LC16BT-I/OT-TUDI#C41411021Tudi · SOT-23-5 | Tudi | SOT-23-5 | 22,095 | ₹41.38 · 22,095 in stock | View |
