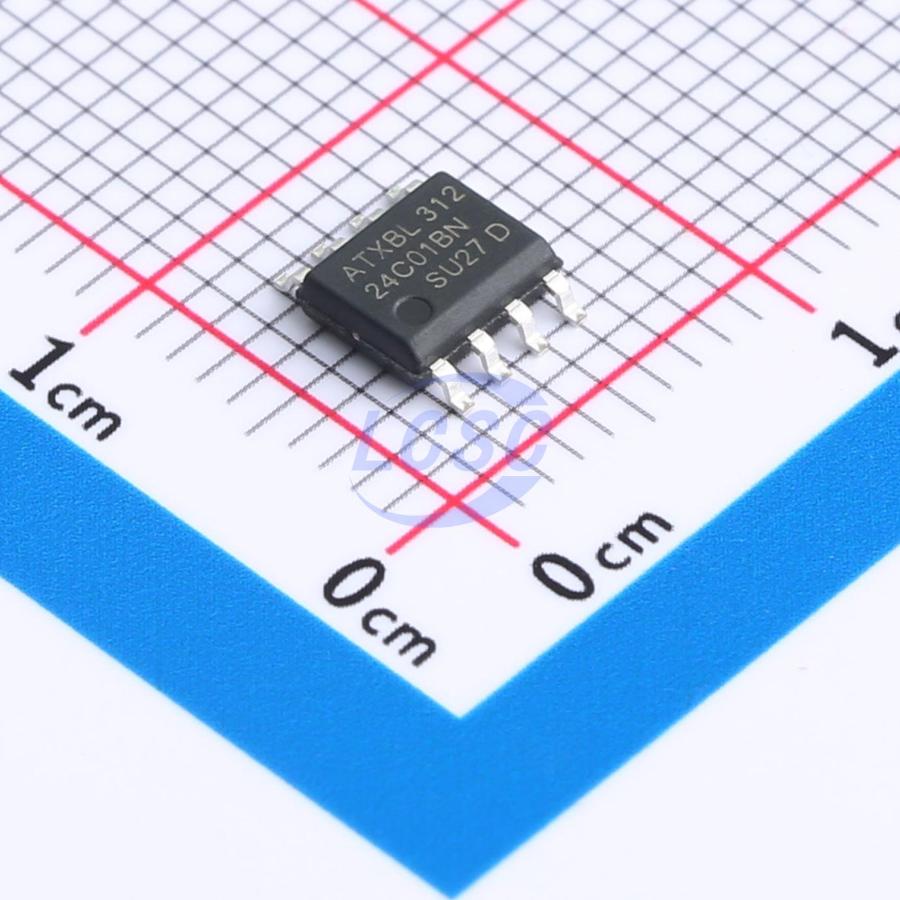

24C01BN(XBLW)
1Kbit 1MHz I2C SOP-8 Memory RoHS
1K Bit 8-bit Wide Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,870 in stock
#C18723541
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.86 | ₹58.60 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.96 | ₹1,188.00 |
| 1,000+ | ₹3.48 | ₹3,480.00 |
| 4,000+ | ₹3.10 | ₹12,400.00 |
| 8,000+ | ₹2.91 | ₹23,280.00 |
10 × ₹5.86
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C01BN(XBLW)
₹58.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 1Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.167 g
Overview
The 24C01 is 1024 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 256 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMoS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN, 6-lead DFN and 5-lead SOT-23 packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended Vcc range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: 24C01: VCC = 1.8V to 5.5V, Industrial temperature range (-40℃ to 85℃)
- With 3 bits device address, the devices are suitable for all application. For use of 5 pins package, the device address A2, A1, and A0 bits must be set to zero
- 16 bytes page write mode
- Partial page write operation allowed
- Internally organized: 256x4 (1K)
- Standard 2-wire bi-directional serial interface
- Schmitt trigger, filtered inputs for noise protection
- Self-timed programming cycle (5ms maximum)
- 1 MHz (2.5 - 5V), 400 kHz (1.8V) Compatibility
- Automatic erase before write operation
- Write protect pin for hardware data protection
- High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN, 6-pin DFN and 5-pin SOT-23 Pb-free packages
