Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C316692
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.81 | ₹88.10 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹6.06 | ₹1,818.00 |
| 2,500+ | ₹5.09 | ₹12,725.00 |
| 5,000+ | ₹4.55 | ₹22,750.00 |
| 10,000+ | ₹4.27 | ₹42,700.00 |
10 × ₹8.81
₹88.10
excl. GST
₹103.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

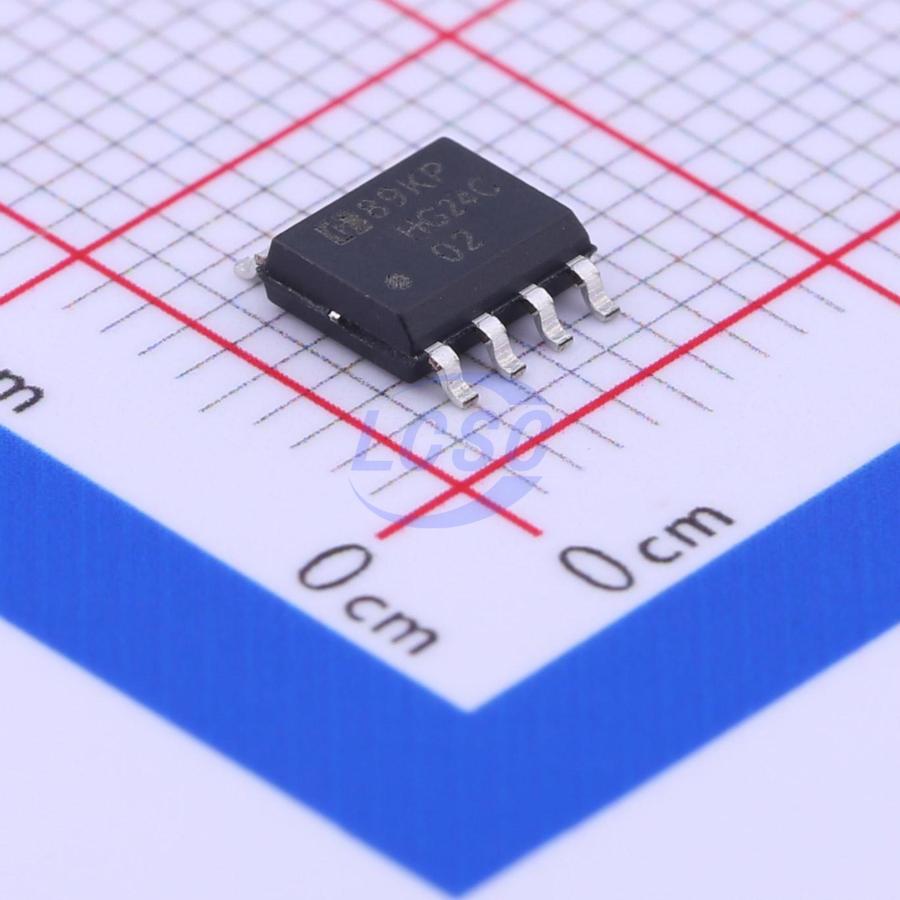

24C02/TR
₹88.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55s
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
The HG24C02/HG24C04/HG24C08/HE24C16 provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The HG24C02/HG24C04 /HG24C08 /HE24C16 is available in space-saving 8-lead PDIP, 8-lead SOP, 8-lead TSSOP, 8-lead MSOP, 8 PAD DFN and SOT23-5 packages and is accessed via a two-wire serial interface.
Key features
- Wide Voltage Operation
- vCC = 1.7V to 5.5V
- Operating Ambient Temperature: -40 ℃ to +85 ℃
- Internally Organized:
- HG24C02, 256 X 8 (2K bits)
- HG24C04, 512 X 8 (4K bits)
- HG24C08, 1024 X 8 (8K bits)
- HG24C16, 2048 X 8 (16K bits)
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- 1 MHz (5V), 400 kHz (1.7V, 2.5V, 2.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 8-byte Page (2K), 16-byte Page (4K, 8K, 16K) Write Modes
- Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms max)
- High-reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- 8-lead PDIP/SOP/TSSOP/MSOP, 8 PAD DFN and SOT23-5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24LC02M/TR#C3007878HGSEMI · SOP-8 | HGSEMI | SOP-8 | 25 | ₹10.97 · 25 in stock | View |
 | AT24LC02M/TR#C3007887HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,445 | ₹10.94 · 2,445 in stock | View |
 | AT24C02M/TR#C356696HGSEMI · SOP-8 | HGSEMI | SOP-8 | 6,240 | ₹8.61 · 6,240 in stock | View |
 | HG24C02M/TR#C7432098HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,380 | ₹8.72 · 2,380 in stock | View |
 | HG24C02CM/TR#C7432361HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,390 | ₹8.94 · 2,390 in stock | View |
