lingxingicDatasheet (PDF)

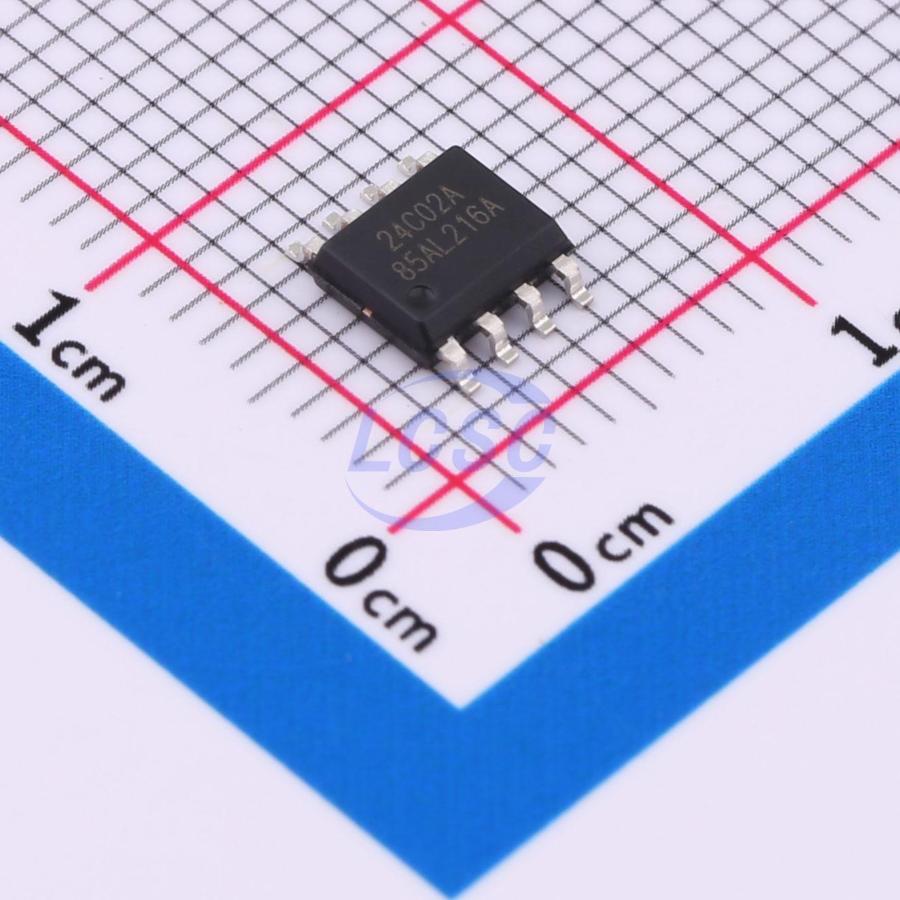

24C02A(LX)
2Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
2-Wire Serial EEPROM
- Manufacturer
- lingxingic
- Manufacturer part #
- 24C02A(LX)
- Store part #
- C22397198
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C22397198
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.82 | ₹96.40 |
| 200+ | ₹3.85 | ₹770.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 4,000+ | ₹2.82 | ₹11,280.00 |
| 8,000+ | ₹2.54 | ₹20,320.00 |
| 20,000+ | ₹2.39 | ₹47,800.00 |
20 × ₹4.82
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C02A(LX)
₹96.40 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.167 g
Overview
The 24C02A is a 2048-bit serial EEPROM organized as 256×8 bits, divided internally into 32 pages of 8 bytes each. Random word addressing requires an 8-bit data word address. With an I2C interface, it is suited for low-power, low-voltage applications.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V~5.5V
- Memory organization: 256x8 (2K)
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression
- Bidirectional data transfer protocol
- Clock frequency: 400kHz (1.8V~2.5V) and 1MHz (2.5V~5.5V)
- 8-byte page write (2K)
- Partial page write supported
- Self-timed write cycle (5ms max)
- High reliability: 1,000,000 erase/write cycles; 100-year data retention
- Package options: DIP8, SOP8, TSSOP8
