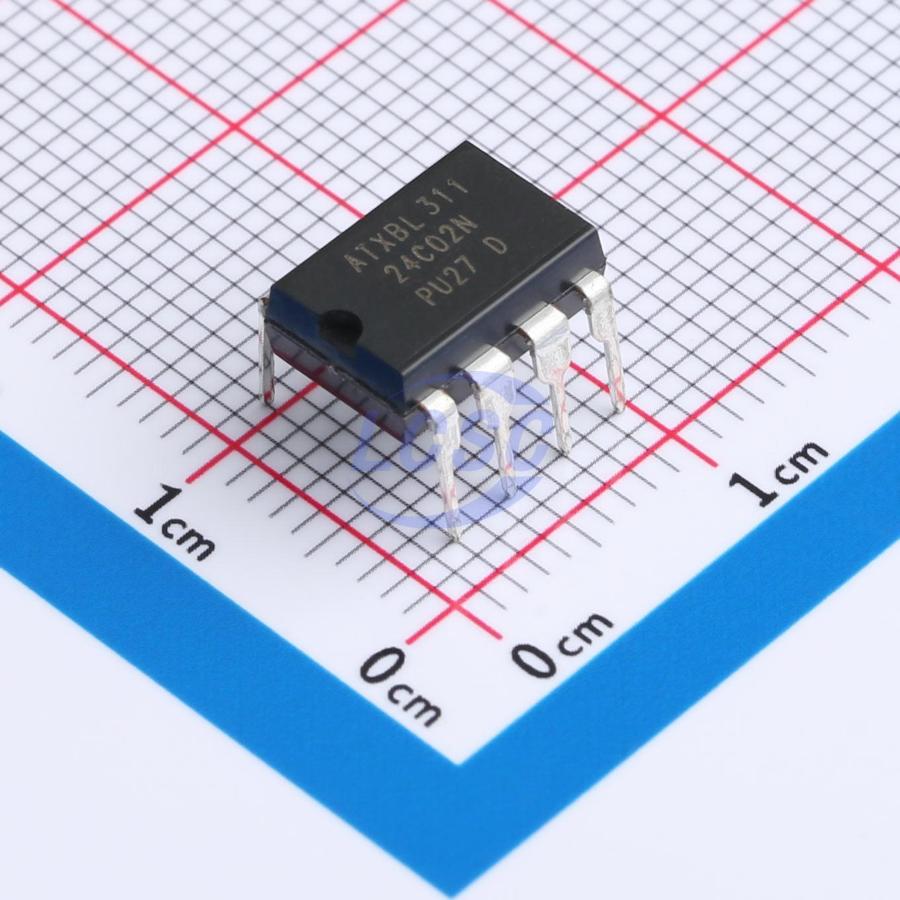

24C02N(XBLW)
2Kbit 1MHz I2C DIP-8 Memory RoHS
2K Bits Two-Wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,620 in stock
#C18723548
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.14 | ₹71.40 |
| 100+ | ₹5.57 | ₹557.00 |
| 300+ | ₹4.79 | ₹1,437.00 |
| 1,000+ | ₹4.19 | ₹4,190.00 |
| 4,000+ | ₹3.72 | ₹14,880.00 |
| 10,000+ | ₹3.48 | ₹34,800.00 |
10 × ₹7.14
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
24C02N(XBLW)
₹71.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.84 g
Overview
The 24C02 is 2048 bits of serial Electrical Erasable and Programmable Read Only Memory, Commonly known as EEPROM. They are organized as 256 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMos process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN, 6-lead DFN and 5-lead SOT-23 packages. A standard 2 wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: 24C02: VCC = 1.8V to 5.5V, Industrial temperature range (-40℃ to 85℃)
- 24C02: With 3 bits device address, the devices are suitable for all application. (For use of 5 pins package, the device address A2, A1, and A0 bits must be set to zero)
- 16 bytes page write mode. Partial page write operation allowed.
- Internally organized: 256x8 (2K).
- Standard 2-wire bi-directional serial interface.
- Schmitt trigger, filtered inputs for noise protection.
- Self-timed programming cycle (5 ms maximum).
- 1 MHz (2.5 - 5V), 400 kHz (1.8V) Compatibility.
- Automatic erase before write operation.
- Write protect pin for hardware data protection.
- High reliability: typically 1,000,000 cycles endurance.
- 100 years data retention.
- Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN, 6-pin DFN and 5-pin SOT-23 Pb-free packages.
