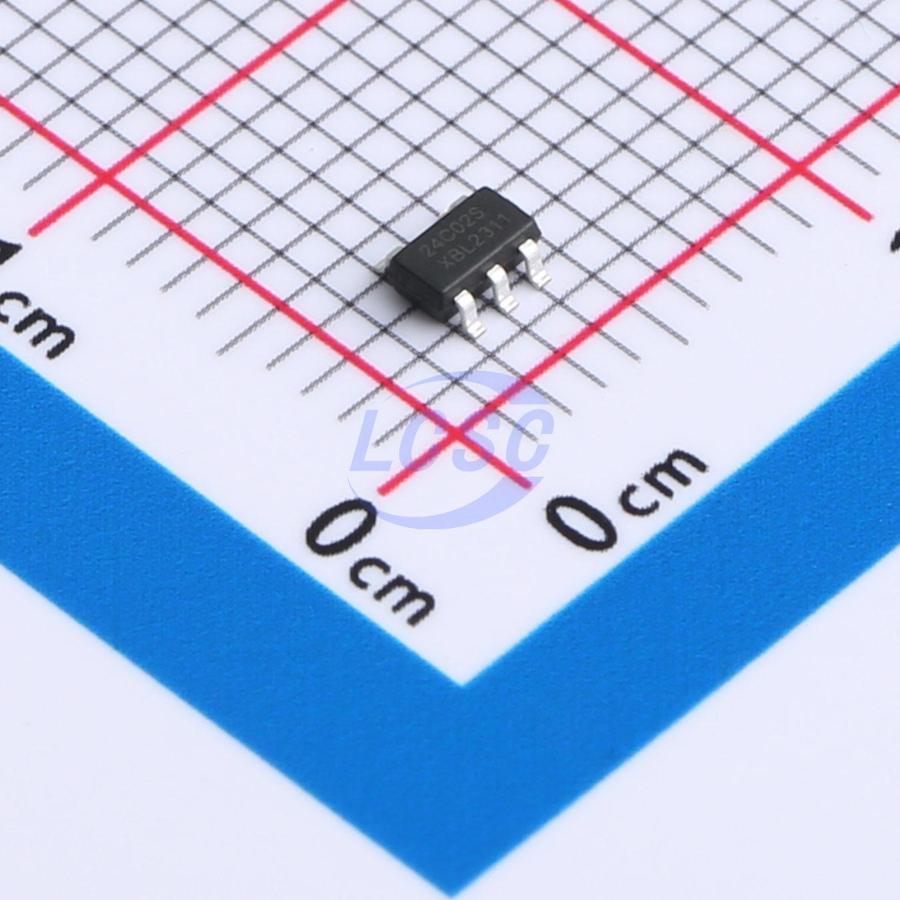

24C02S(XBLW)
2Kbit 1MHz I2C SOT23-5 Memory RoHS
2K Bits Two-Wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,68,360 in stock
#C18723540
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.30 | ₹66.00 |
| 200+ | ₹2.64 | ₹528.00 |
| 600+ | ₹2.28 | ₹1,368.00 |
| 3,000+ | ₹2.07 | ₹6,210.00 |
| 9,000+ | ₹1.88 | ₹16,920.00 |
| 21,000+ | ₹1.77 | ₹37,170.00 |
20 × ₹3.30
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24C02S(XBLW)
₹66.00 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
The 24C02 is 2048 bits of serial Electrical Erasable and Programmable Read Only Memory, Commonly known as EEPROM. They are organized as 256 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMos process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN, 6-lead DFN and 5-lead SOT-23 packages. A standard 2 wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: 24C02: VCC = 1.8V to 5.5V, Industrial temperature range (-40℃ to 85℃)
- 24C02: With 3 bits device address, the devices are suitable for all application. (For use of 5 pins package, the device address A2, A1, and A0 bits must be set to zero)
- 16 bytes page write mode. Partial page write operation allowed.
- Internally organized: 256x8 (2K).
- Standard 2-wire bi-directional serial interface.
- Schmitt trigger, filtered inputs for noise protection.
- Self-timed programming cycle (5 ms maximum).
- 1 MHz (2.5 - 5V), 400 kHz (1.8V) Compatibility.
- Automatic erase before write operation.
- Write protect pin for hardware data protection.
- High reliability: typically 1,000,000 cycles endurance.
- 100 years data retention.
- Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN, 6-pin DFN and 5-pin SOT-23 Pb-free packages.
