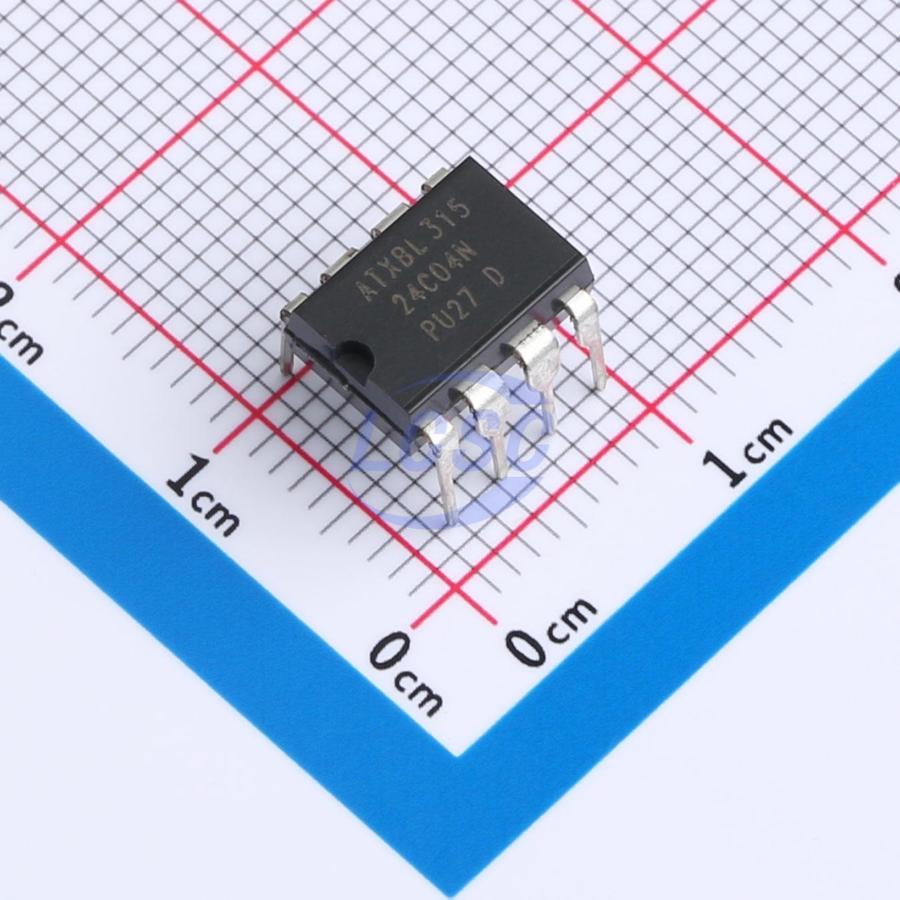

24C04N(XBLW)
4Kbit 1MHz I2C DIP-8 Memory RoHS
4K Bit Two-Wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C18723549
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.49 | ₹52.45 |
| 50+ | ₹8.20 | ₹410.00 |
| 150+ | ₹7.06 | ₹1,059.00 |
| 500+ | ₹6.20 | ₹3,100.00 |
| 2,000+ | ₹5.52 | ₹11,040.00 |
| 4,000+ | ₹5.17 | ₹20,680.00 |
5 × ₹10.49
₹52.45
excl. GST
₹61.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
24C04N(XBLW)
₹52.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.835 g
Overview
The 24C04 is 4096 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 512 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMos process for low power and low voltage applications. These devices are available in standard 8 - lead DIP, 8 - lead SOP, 8 - lead MSOP, 8 - lead TSSOP, 8 - lead DFN, 6 - lead DFN and 5 - lead SOT - 23 packages. A standard 2 - wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: 24C04: VCC = 1.8V to 5.5V, Industrial temperature range ( - 40℃ to 85℃), Maximum Standby current < 1μA.
- 16 bytes page write mode.
- Partial page write operation allowed.
- Internally organized: 512x8 (4K).
- Standard 2 - wire bi - directional serial interface.
- Write protect pin for hardware data protection.
- Schmitt trigger, filtered inputs for noise protection.
- Self - timed programming cycle (5ms maximum).
- 1 MHz (2.5V - 5V), 400 kHz (1.8V) Compatibility.
- Automatic erase before write operation.
- High reliability: typically 1,000,000 cycles endurance.
- 100 years data retention.
- Standard 8 - pin DIP/SOP/MSOP/TSSOP/DFN, 6 - pin DFN and 5 - pin SOT - 23 Pb - free packages.
