lingxingicDatasheet (PDF)

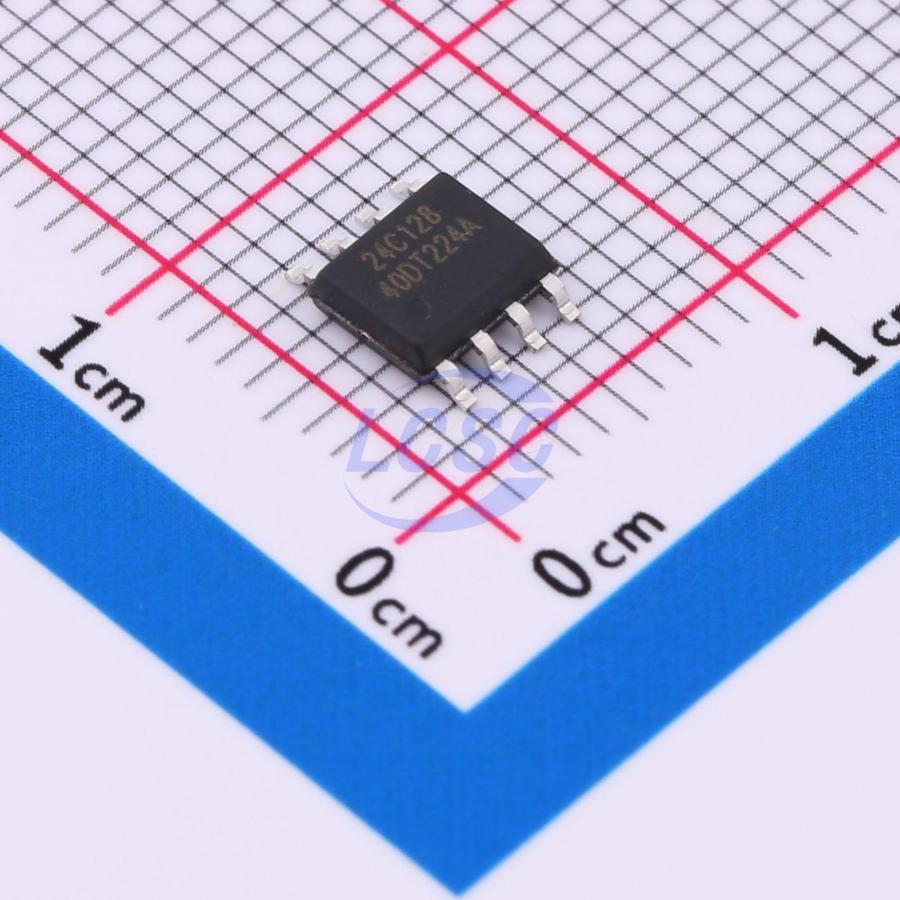

24C128(LX)
128Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
128K Bits Serial EEPROM
- Manufacturer
- lingxingic
- Manufacturer part #
- 24C128(LX)
- Store part #
- C22397200
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,240 in stock
#C22397200
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.75 | ₹93.75 |
| 50+ | ₹14.72 | ₹736.00 |
| 150+ | ₹12.99 | ₹1,948.50 |
| 500+ | ₹10.85 | ₹5,425.00 |
| 2,500+ | ₹9.88 | ₹24,700.00 |
| 4,000+ | ₹9.31 | ₹37,240.00 |
5 × ₹18.75
₹93.75
excl. GST
₹110.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C128(LX)
₹93.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.8V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
24C128 is a 128K-bit serial EEPROM organized as 16384×8 bits, internally divided into 256 pages of 64 bytes each. With an I2C interface, it is suited for low-power, low-voltage applications.
Key features
- Write-protect pin for hardware data protection
- Wide operating voltage range: 1.8V~5.5V
- Memory organization: 16384x8 (128K)
- Two-wire serial interface
- Schmitt trigger inputs for noise suppression
- Bidirectional data transfer protocol
- Clock frequency: 400kHz (1.8V~2.5V) and 1MHz (2.5V~5.5V)
- 64-byte page write
- Partial page write supported
- Self-timed write cycle (5ms max)
- High reliability: Endurance: 1,000,000 write cycles; Data retention: 100 years
- Package options: DIP8, SOP8, TSSOP8
