lingxingicDatasheet (PDF)

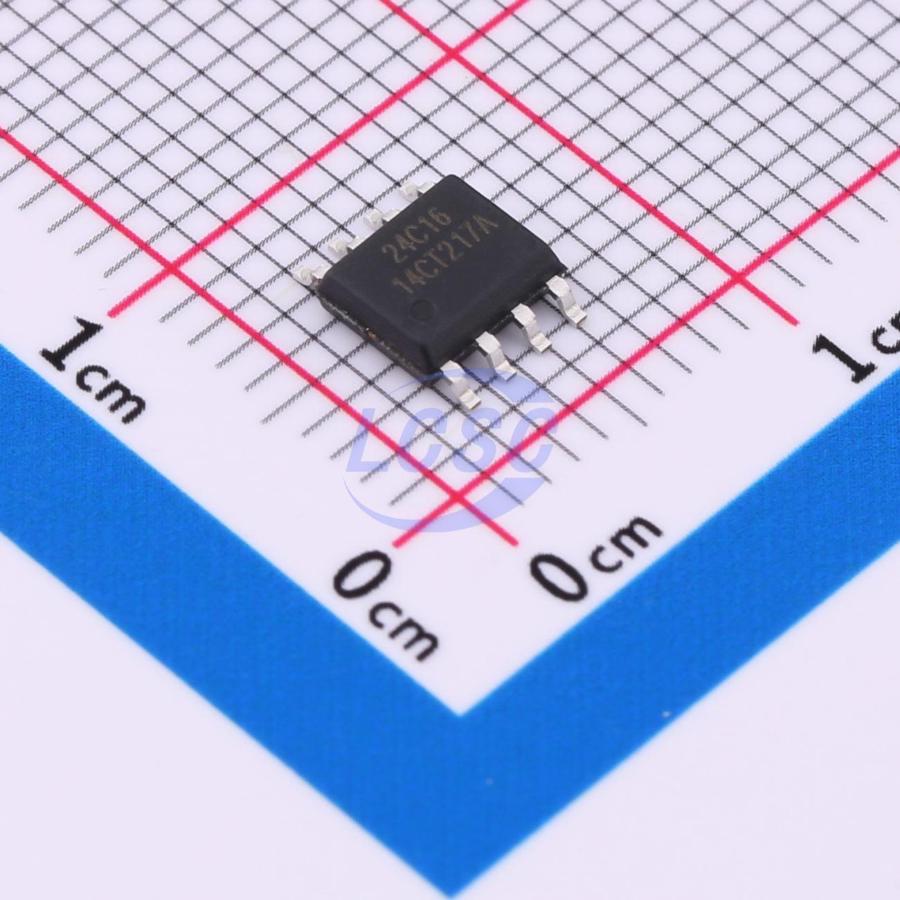

24C16(LX)
16Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
16-Kbit Serial EEPROM
- Manufacturer
- lingxingic
- Manufacturer part #
- 24C16(LX)
- Store part #
- C22397201
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C22397201
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.44 | ₹57.20 |
| 50+ | ₹9.09 | ₹454.50 |
| 150+ | ₹7.90 | ₹1,185.00 |
| 500+ | ₹7.03 | ₹3,515.00 |
| 2,500+ | ₹6.14 | ₹15,350.00 |
| 4,000+ | ₹5.78 | ₹23,120.00 |
5 × ₹11.44
₹57.20
excl. GST
₹67.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
24C16(LX)
₹57.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The 24C16 is 16-Kbit I²C -compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 2048x8 8bits, which is organized in 16 -byte per page. The device is used in low-voltage and low-power systems.
Key features
- Single Supply Voltage and High Speed
- Minimum operating voltage down to 1.7V
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 2.5V
- Low power CMOS technology
- Read current 1.0mA, maximum
- Write current 2.0mA, maximum
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential & Random Read Features
- Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Self-timed Write Cycle (5ms maximum)
- High Reliability
- Endurance: >1 Million Write Cycles
- Data Retention: >100 Years
- LATCH UP Capability: +/− 200mA
- Package: DIP8, SOP8, TSSOP8
