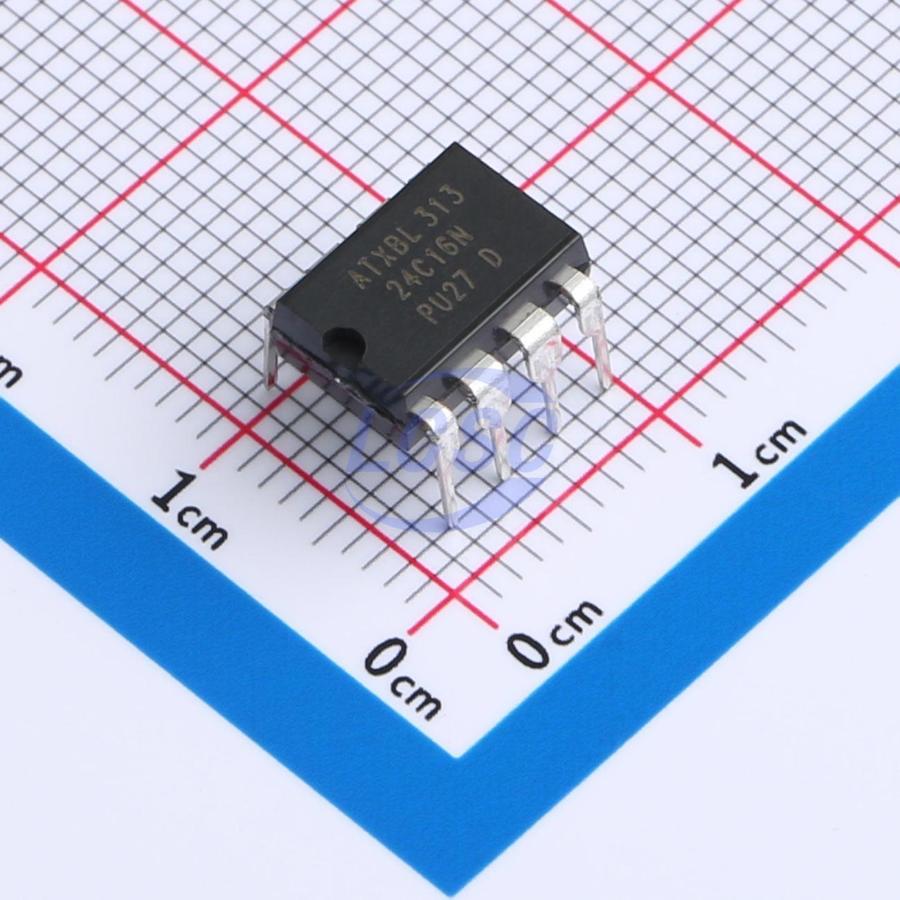

24C16N(XBLW)
16Kbit 1MHz I2C DIP-8 Memory RoHS
16K Bit Two-Wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C18723551
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.56 | ₹57.80 |
| 50+ | ₹9.14 | ₹457.00 |
| 150+ | ₹7.92 | ₹1,188.00 |
| 500+ | ₹7.03 | ₹3,515.00 |
| 2,000+ | ₹6.30 | ₹12,600.00 |
| 4,000+ | ₹5.94 | ₹23,760.00 |
5 × ₹11.56
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
24C16N(XBLW)
₹57.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.835 g
Overview
The 24C16 is16,384 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 2,048 words of 8 bits (1 byte) each. The devices are fabricated with proprietary advanced CMos process for low power and low voltage applications. These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, 8-lead DFN,6-lead DFN and 5-lead SOT-23 packages. A standard 2- wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.
Key features
- Low voltage and low power operations: 24C16: VCC = 1.8V to 5.5V, Industrial temperature range (-40℃ to 85℃): Maximum Standby current < 1μA (typically 0.02μA and 0.06μA @ 1.8V and 5.5V respectively)
- 16 bytes page write mode
- Partial page write operation allowed
- Internally organized: 2048x8 (16K)
- Standard 2-wire bi-directional serial interface
- Schmitt trigger, filtered inputs for noise protection
- Self-timed programming cycle (5ms maximum)
- 1 MHz (2.5 - 5V), 400 kHz (1.8V) Compatibility
- Automatic erase before write operation
- Write protect pin for hardware data protection
- High reliability: typically 1,000,000 cycles endurance
- 100 years data retention
- Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN,6-pin DFN and 5-pin SOT-23 Pb-free packages
